• Model NO.：HD-A521-1
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Standards：En71, ANSI, UL, ASTM, Ista
• Specimen Size：1000*1200mm or Custom
• Max Weight：100kg
• Amplitude：1 Inch or 25.4mm
• Delivery Time：15 Days After Receive The Deposit
• Maximum Test Load：100kg
• Frequency Range：60-300rpm
• Amplitude Range：25.4mm
• Vibration Mode：Roundtrip
• Transport Package：Strong Plywood Case
• Specification：En71, ANSI, UL, ASTM, Ista
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024109000
• Production Capacity：150 Sets, Month

Basic Info.

Model NO. HD-A521-1 Control Computer Control Weight 100-500Kg Power Source AC220V Standards En71, ANSI, UL, ASTM, Ista Specimen Size 1000*1200mm or Custom Max Weight 100kg Amplitude 1 Inch or 25.4mm Delivery Time 15 Days After Receive The Deposit Maximum Test Load 100kg Frequency Range 60-300rpm Amplitude Range 25.4mm Vibration Mode Roundtrip Transport Package Strong Plywood Case Specification En71, ANSI, UL, ASTM, Ista Trademark Haida Origin Dongguan, China HS Code 9024109000 Production Capacity 150 Sets/ Month

Product Description

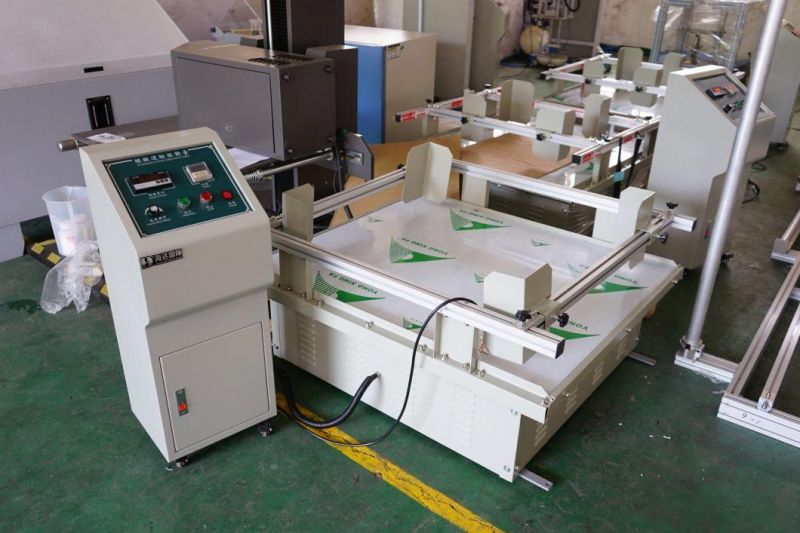

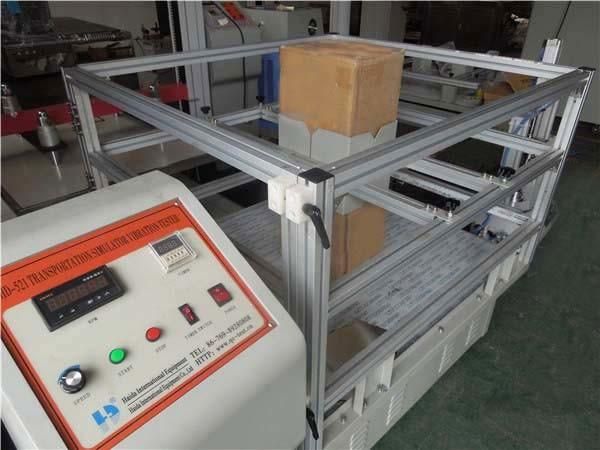

                                                Package Box Simulation Vibration Testing Instrument

The transport vibration tester, which simulates a transportation environment, is applicable to the vibration test of toys, electronics, furniture, gifts, ceramics, communications, packaging, equipment, computer and automobile components, etc.

Features:
1. Low price, which is only 10% of the same products in the USA.
2. The digital screen display the vibration frequency
3. Use rail track for the installation of the test sample, operate easily and safely
4. The pedestal of the machine applies heavy style channel with vibration attenuation pad, convenient, stable, no need to install the land-end screw.


Maximum test load	100kg
Frequency range	60-300rpm
Amplitude range	25.4mm
Vibration mode	roundtrip
Simulation speed	25-40km/h
Work table size	1000times 1200mm
Outside dimension	1255 times 1070 times 660mm
Power capacity	1HP
Weight	125kg
Enviromental conditions	temperature: 5-40º C, relative humidity ≤ 85%
Speed mode	DC converter or  AC Frequency  control
Power	220V, 50HZ
Design criteria	EN71, ANSI, UL, ASTM, ISTA

FAQ
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve  problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the  product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.  We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted byusers.
