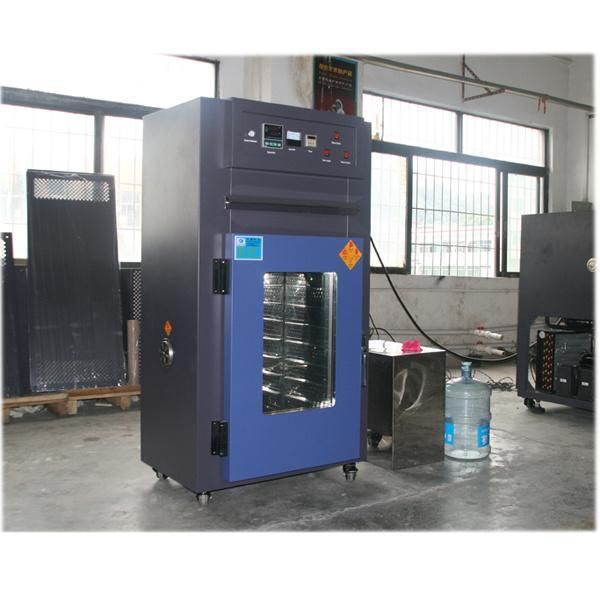

• Model NO.：YPO-270
• Control：Cotroller
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：N,a
• Inner Size：600*900*500mm
• External Size：1100*1600*650mm
• Volume：270 Liters
• Temp. Fluctuation：+,-0.3 Degree
• Interior Chamber Material：SUS#304 Stainless Steel Plate
• Temperature Range：up to 300 Celsius Degrees
• Filters：HEPA Filters
• Indication Resolution：0.1degree , 1 Degree
• Heat up Time：30 Mins
• Exterior Chamber Material：Stainless Steel Plate + Powder Coated
• Transport Package：Strong Wood Carton
• Specification：TUV, SGS certification
• Trademark：Yuanyao
• Origin：China
• HS Code：9032100000
• Production Capacity：100 Sets,Month

SpecificationMODELYPO-072YPO-270YPO-480YOP-600YPO-720Internal Sim.WHD(mm)400×450×400600×900×500800×1000×6001000×1000×6001200×1000×600External Dim.W×H×D(mm)970*1200*5501150×1650×7401300×1700×8401500×1750×8401850×1750×840Temp.RangeFerformanceTemp.&Humi,Constancy±0.3ºCTemp.&Humi,Constancy±0.1ºC AT 200ºC;±1.5% AT 300ºCIndication Resolution0.1ºCHeat-up Time( min.)Approx.30min.MaterialExterior and InteriorIron Sheet+Baked Enamel; SUS#304 stainless steel piateInsulationFiberglass WoolSYSTEMSCirulationCircle FanHeatingChrome Steel Strip Wire HeaterControllerElectric Digital Control+S.S.R.doorSingle-WingDouble-WingOther ComponentsEnvironmental Control Indicator Lights,Experiment Separation Shelves(2 pcs).Sevey DevicesOverheating Prevention Circuit breaker,Control System,Breakdown Indicator Light.Power Source[K.W.]AC 1Ψ 220V ; 3Ψ 380V 60/50Hz Customization of inner chamber size, temperature range, etc.
Except Industrial Drying Oven, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:

Vacuum drying oven, Dispensing robot, Temperature humidity chamber, Thermal shock test chamber, Salt spray tester, Walk-in environmental test room, Temp. Humi. &vibration conbined test chamber, Aging oven tester, Rain/spray test chamber, Dust test chamber, Steam aging test chamber, and so on.


Product detail





Company profle






If you want to know more information,please contact us.

Thank you!
