• Model NO.：HD-A521-1
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Warranty：1 Year
• Delivery Time：20 Days After Receive The Deposit
• Amplitude Range：25.4 mm (1 Inch)
• Simulation Speed：Simulation Speed
• Power：220V, 50 Hz
• Max. Test Load：100 Kg
• Frequency Range：60-300 Rpm
• Vibration Mode：Vibration Mode
• Woke Table Size：1000*1200 mm
• Outside Dimension (L*W*H)：Outside Dimension (L*W*H)
• Transport Package：Strong Wooden Case
• Specification：En71, UL, Ista, ASTM
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024800000
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HD-A521-1 Control Computer Control Weight 100-500Kg Power Source AC220V Warranty 1 Year Delivery Time 20 Days After Receive The Deposit Amplitude Range 25.4 mm (1 Inch) Simulation Speed Simulation Speed Power 220V, 50 Hz Max. Test Load 100 Kg Frequency Range 60-300 Rpm Vibration Mode Vibration Mode Woke Table Size 1000*1200 mm Outside Dimension (L*W*H) Outside Dimension (L*W*H) Transport Package Strong Wooden Case Specification En71, UL, Ista, ASTM Trademark Haida Origin Dongguan, China HS Code 9024800000 Production Capacity 100 Set Per Month

Product Description

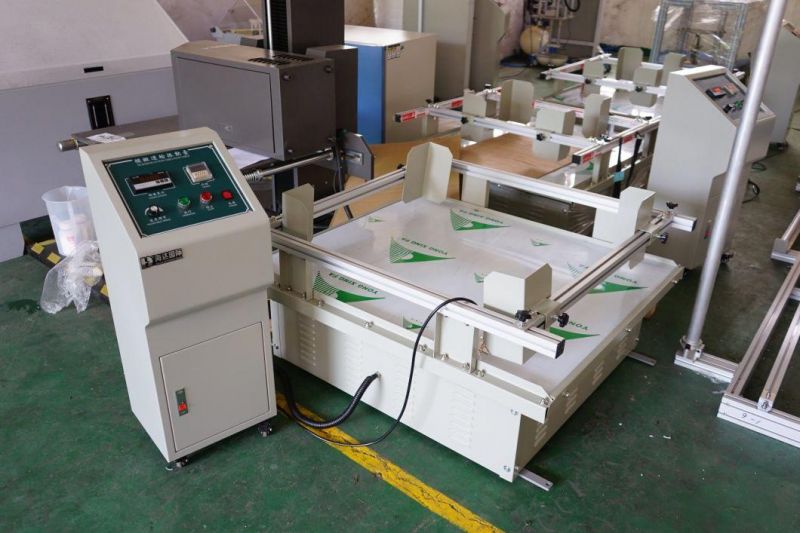

                          Automatic Vibration Testing Machine (HD-521)


Product Description
ISTA Carton Box Package Simulation Vibration Test Machine which simulates a transporation environment, is applicable to the vibration test of toys, electronics, furnitures, gifts, ceramics, communications, packagings, equipment, computer and automobile components, etc.

Features of ISTA Carton Box Package Simulation Vibration Test Machine:

1. low price, which is only 10% of the same products in the USA.

2. the digital screen dispaly the vibration frenquency.

3. use rail track for the installation of the test sample, oprate easily and safely.

4. the pedestal of the machine applies heavy style channel with vibration attenuation pad, convenient, stable, no need to install the land-end screw.


Specifications of ISTA Carton Box Package Simulation Vibration Test Machine:
(The table parameters for the company Standard Model parameters, we support customer customization parameters)

Max. Test Load	100 Kg
Frequency Range	60-300 rpm
Amplitude Range	25.4 mm (1 inch)
Vibration Mode	Roundtrip
Simulation Speed	25~40 km/h
Woke Table Size	1000×1200 mm
Outside Dimension (L×W×H)	1255×1070×660 mm
Power Capacity	1 HP
Weight	125 Kg
Environmental Conditions	Temperature: 5~40°c;  Related Humidity: <85%
Speed Mode	DC converter or AC Frequency Control
Power	220V, 50 Hz

(The table parameters for the company Standard Model parameters, we support customer customization parameters)



Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
