Aging Test Material Test Hot Air Circulating Drying Oven for PCB Board

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Type：Universal Testing Machine
  • Maxcapacity：N,a
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：YPO-270
  • Control：Cotroller
  • Weight：100-500Kg
  • Power Source：AC380V
  • Oil Cylinder Position：N,a
  • Inner Size：600*900*500mm
  • External Size：1150*1650*740mm
  • Volume：270 Liters
  • Temp. Fluctuation：+,-0.3 Degree
  • Interior Chamber Material：SUS#304 Stainless Steel Plate
  • Color：Ivory,Blue,Other
  • Filters：HEPA Filters
  • Indication Resolution：0.1degree , 1 Degree
  • Heat up Time：30 Mins
  • Exterior Chamber Material：Stainless Steel Plate + Powder Coated
  • Transport Package：Strong Wood Carton
  • Specification：TUV, SGS certification
  • Trademark：Yuanyao
  • Origin：China
  • HS Code：9032100000
  • Production Capacity：100 Sets,Month

Description

MODELYPO-072YPO-270YPO-480YOP-600YPO-720Internal Sim.WHD(mm)400×450×400600×900×500800×1000×6001000×1000×6001200×1000×600External Dim.W×H×D(mm)970*1200*5501150×1650×7401300×1700×8401500×1750×8401850×1750×840Temp.RangeFerformanceTemp.&Humi,Constancy±0.3ºCTemp.&Humi,Constancy±0.1ºC AT 200ºC;±1.5% AT 300ºCIndication Resolution0.1ºCHeat-up Time( min.)Approx.30min.Material Filters HEPA FiltersExterior and InteriorIron Sheet+Baked Enamel; SUS#304 stainless steel piateInsulationFiberglass WoolSYSTEMSCirulationCircle FanHeatingChrome Steel Strip Wire HeaterControllerElectric Digital Control+S.S.R.doorSingle-WingDouble-WingOther ComponentsEnvironmental Control Indicator Lights,Experiment Separation Shelves(2 pcs).Sevey DevicesOverheating Prevention Circuit breaker,Control System,Breakdown Indicator Light.Power Source[K.W.]AC 1Ψ 220V ; 3Ψ 380V 60/50Hz Customization of inner chamber size, temperature range, etc.
Except High Temperature Industrial Drying Oven, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:

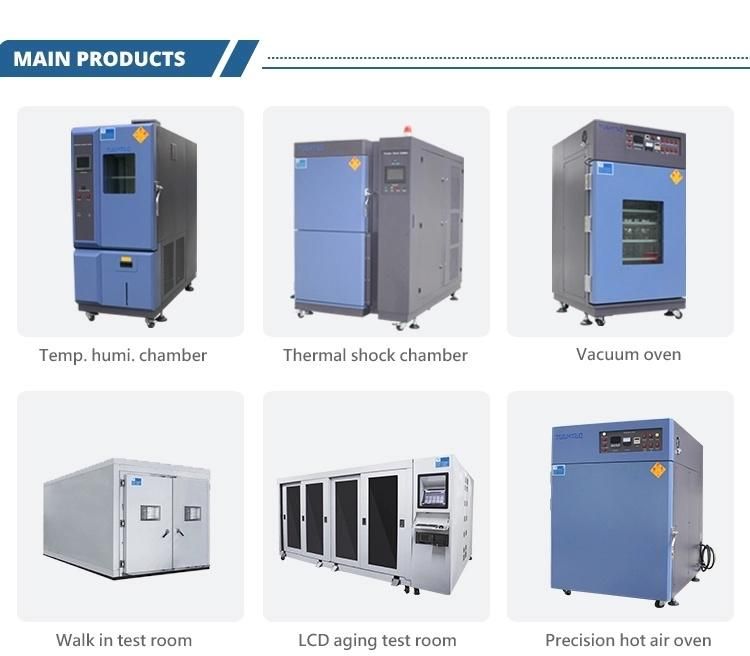

Vacuum drying oven, Dispensing robot, Temperature humidity chamber, Thermal shock test chamber, Salt spray tester, Walk-in environmental test room, Temp. Humi. &vibration conbined test chamber, Aging oven tester, Rain/spray test chamber, Dust test chamber, Steam aging test chamber, and so on.
