• Model NO.：HBRVS-187.5F
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. HBRVS-187.5F Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China Production Capacity 300 Sets/Month

Product Description

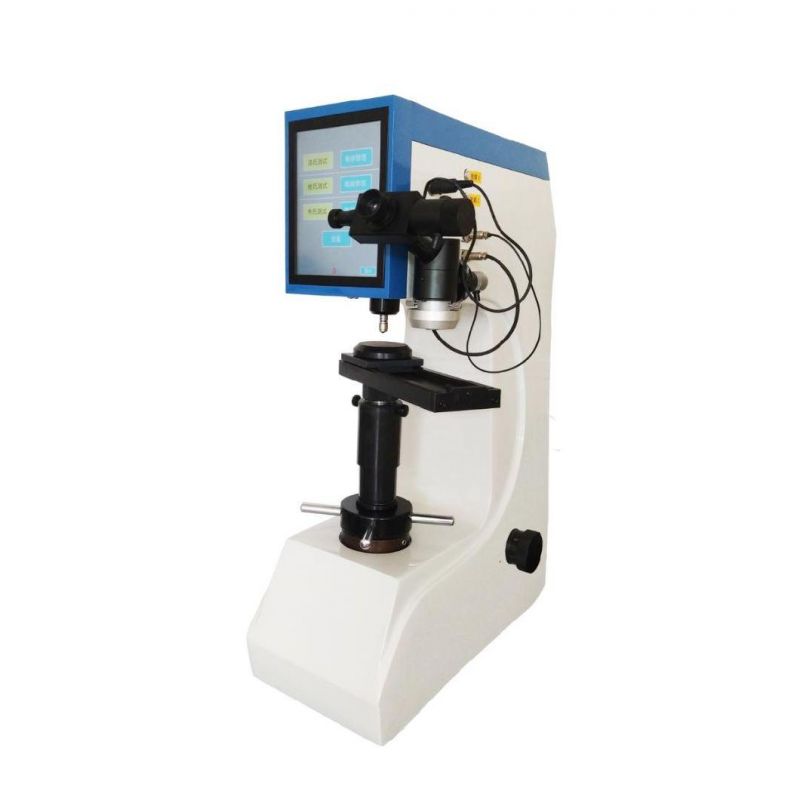

Touch Screen Brinell Rockwell Vicker Hardness Tester Best Price Universal Hardness Tester HBRVS-187.5F


Introduction
HBRVS-187.5 digital display Blovi hardness tester has 8-inch touch screen intuitive display and single-chip control system, which can realize man-machine dialogue and automatic operation; it has high test accuracy, simple operation, high sensitivity, convenient use, and stable display value; It fully realizes the automatic operation of test force application, removal, and direct display of hardness value. Built-in printer, RS232 interface and USB interface can realize data exchange between computer and hardness tester.


Scope of application
Determination of Brinell, Vickers, Rockwell hardness of ferrous metals, non-ferrous metals and hard alloys; Wide range of applications, can be widely used to determine:
a. Brinell hardness of castings, annealed steel, normalized steel, non-ferrous metals and soft alloys
b. Rockwell hardness of heat-treated materials such as quenching, quenching and tempering
c. Vickers hardness of nitriding layer, ceramics, thin plate, metal sheet, electroplating layer and tiny parts.


Main Feature

1. Adopt 8-inch touch screen, display rich content, easy to operate
2. Ready-to-use, no need to install weights
3. Three test methods for Brinell, Rockwell and Vickers hardness
4. Automatic hardness conversion
5. High precision optical system
6. Measurement data U disk saved as EXCEL format, easy to edit and save
7. With RS232 interface, test results can be transmitted to the computer

Main Technical Specifications1. Power supply voltage: AC220V±5%, 50~60Hz
2. Delay control: adjustable from 0 to 90 seconds
3. Distance from the center of the indenter to the body: 160mm
Maximum allowable height of the sample: Rockwell 200mm, Brinell Vickers 165mm
4. Dimensions of the hardness tester (length × width × height): 550 × 230 × 750mm
5. Approx. weight of the instrument: 89kg
6. Test force:
Rockwell: 60, 100, 150KGf (588, 980, 1471N)
Brinell: 31.25, 62.5, 187.5Kgf (306.5, 612.9, 1839N)
Vickers: 30, 100Kgf (294.2, 980.7N)
7. Measuring ruler:
Rockwell: HRA, HRB, HRC, HRD, HRF, HRG
Brinell: HBW2.5/31.25 HBW2.5/62.5 HBW5/62.5 HBW2.5/187.5
Vickers: HV30, HV100
8. Measuring range:
Rockwell: 20-95HRA, 10-100HRBW, 20-70HRC
Brinell: 5-650HBW
Vickers: 10-2900HV
Magnification: 100X, 50X, 25X


Standard Configuration

No.	Name (Specification)	Quantity
1	Diamond Rockwell indenter	1pc
2	φ1.5875mm ball indenter	1pc
3	Large flat test bench, small flat test bench, "V" shape test bench	3pcs in total
4	Standard Rockwell hardness block	5pcs in total
5	Leveling gauge	1pc
6	Leveling screw	4pcs
7	Hexagonal wrench	1pc
8	Power cable	1pc
9	RS232 communication cable	1pc
10	Fuse 2A	2pcs
11	Dust cover	1pc
12	Product instruction manual (including certificate of conformity, packing list)	1pc
13	Printer instruction manual	1pc
14	Rockwell indenter protection cover	1pc
15	Screwdriver	2pcs
16	Digital display microscope eyepiece	1pc
17	Microscope stand (with internal illumination)	1pc
18	2.5X, 5X, 10X objective lens	1 each
19	Sliding plate test stand	1 set
20	External illumination lamp	1pc
21	Diamond Vickers indenter	1pc
22	φ2.5mm, φ5mm ball indenter	Total 2pcs
23	Standard Vickers hardness block (HV30)	1pc
24	Standard Brinell hardness block (HBW/2.5/187.5)	1pc

About  Company

We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.




Certification

FAQ
1.Quality Insurance
We guarantee this instrument for 1 year and life-long maintenance. We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons: (1) Wrong operation; (2) Fixed or refitted personally; (3) The machine itself is not the reason caused breakdown; (4)Applying the machine under the serious conditions.such as high temperature,moist, corrosive gas,or vibration. (5)Move or transportation as soon as installed. (6)Consumables and easy-loss components. (7)Natural disaster

2.After-sales Service
a.If errors occur,please refer to the troubleshooting tips of the instruction manual. b.Please contact with our after-sales service department or distributor in time if can't clear fault.

3.Are we manufacturer made copy product or original product?
We are the original manufacturer.

4.Why choose us?
We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service. a.We have been specialized in this field since 2002. b.Professional researching and technology team. c.Customer service team.

5.Can you offer quality certification?
Yes.We can offer quality certification issued by our quality control department with free of charge.or issued by third-party international inspection organizations with extra charge.

6.Can you do the calibration and testing before handover the goods?
Yes.We do testing and calibration for every product before delivery.
