• Model NO.：HBRV-187.5
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. HBRV-187.5 Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China Production Capacity 300 Sets/Month

Product Description

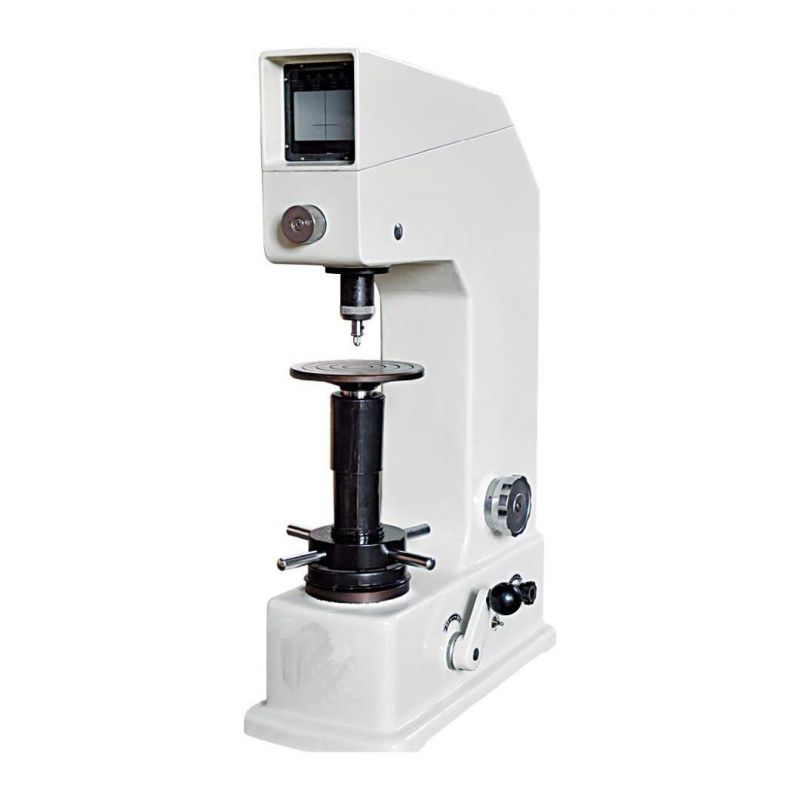

HBRV-187.5 Brinell Rockwell Vickers Hardness Tester, Digital Durometer Universal Hardness Tester Price

Application
Determination of rockwell ,brinell, vickers hardness of ferrous metals, nonferrous metals and cemented carbides;
Wide range of applications, suitable for parallel plane precision measurement, and surface measurement is stable and reliable.



Main Feature
Lever load, optical screen reading, Brinell Vickers Rockwell hardness tester;
Mechanical reversing switch;
Strong construction, good rigidity, precise, reliable, durable, high test efficiency;
40xreading microscope measuring system, high precision;Rockwell hardness scale, optical screen direct reading;Precision conforms to the Standards of GB/T230.2,GB/T 231.2,GB/T4340.2,ISO6508-2,
ISO6507-2,ISO6506-2 and ASTM E18,ASTM E10,ASTM E92.




Main Technical Specifications

Measuring range	4-650HBW, 20-88HRA, 20-100HRB, 20-70HRC, 200-1000HV
Test force	294.2, 306.5, 588.4, 612.9, 980.7, 1471, 1839N (30,31,25,60,62.5,100,150,187.5kgf)
Max. height of test piece	200mm
Depth of throat	160mm
Power	AC200V 50/60HZ
Dimensions	480 x 250 x 760mm
Weight	approx. 95kg

Standard Configuration
Big,Small and V anvil: 1 each
T1/16" steel ball indenter: :Φ2.5,Φ5 each
Brinell standardized block: 1pc
Diamond cone indenter:1pc
Diamond pyramid indenter: 1pc
Standard Brinell Hardness Block: 1pc
Standard Rockwell Hardness Blocks:1pc
40x reading microscope:1 pc



About  Company

We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.




Certification

FAQ
1.Quality Insurance
We guarantee this instrument for 1 year and life-long maintenance. We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons: (1) Wrong operation; (2) Fixed or refitted personally; (3) The machine itself is not the reason caused breakdown; (4)Applying the machine under the serious conditions.such as high temperature,moist, corrosive gas,or vibration. (5)Move or transportation as soon as installed. (6)Consumables and easy-loss components. (7)Natural disaster

2.After-sales Service
a.If errors occur,please refer to the troubleshooting tips of the instruction manual. b.Please contact with our after-sales service department or distributor in time if can't clear fault.

3.Are we manufacturer made copy product or original product?
We are the original manufacturer.

4.Why choose us?
We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service. a.We have been specialized in this field since 2002. b.Professional researching and technology team. c.Customer service team.

5.Can you offer quality certification?
Yes.We can offer quality certification issued by our quality control department with free of charge.or issued by third-party international inspection organizations with extra charge.

6.Can you do the calibration and testing before handover the goods?
Yes.We do testing and calibration for every product before delivery.
