• Model NO.：HJ-69
• Power Source：AC220V
• Power Supply：220V,50Hz
• Power：100W
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-69 Power Source AC220V Power Supply 220V/50Hz Power 100W Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Overview
1 . The headphone rotary plug tester is a device for testing the reliability of the mobile phone headphone jack and the headphone. 2. The structure is reasonable and unique, and it has full applicability to different types of mobile phones. 3. The test process of earphone plugging and unplugging→rotation→plugging and unplugging can be done to avoid unilateral wear. 4. The holding part of the earphone can float in a small amount, which can completely simulate the insertion and removal of the earphone by human hands, and avoid the wear and tear that occurs when the earphone and the jack are not coaxial. 5. The equipment runs stably, with low noise and maintenance-free.

Features
1. The headphone rotary plug tester is a device for testing the reliability of the mobile phone headphone jack and the headphone.
2. The structure is reasonable and unique, and it has full applicability to different types of mobile phones.
3. The test process of earphone plugging and unplugging→rotation→plugging and unplugging can be done to avoid unilateral wear.
4. The holding part of the earphone can float in a small amount, which can completely simulate the insertion and removal of the earphone by human hands, and avoid the wear and tear that occurs when the earphone and the jack are not coaxial.
5. The equipment runs stably, with low noise and maintenance-free.
two. Testing purposes
1. The durability of the phone headphone jack.
2. Headphone reliability.
three. Test procedure description
When simulating the user's use, the operation of inserting and pulling out the headphone plug is tested.
The earphone plug is inserted into the mobile phone → the mobile phone is fixed in the adjustable fixture → the earphone is fixed in the fixture of the plug-in mechanism → the pneumatic sliding table drives the earphone to be pulled out → the rotating motor drives the earphone plug to rotate axially at any angle or specified angle (± 180°)→Pneumatic sliding table drives the headphone plug to be inserted again to continue the next working cycle.


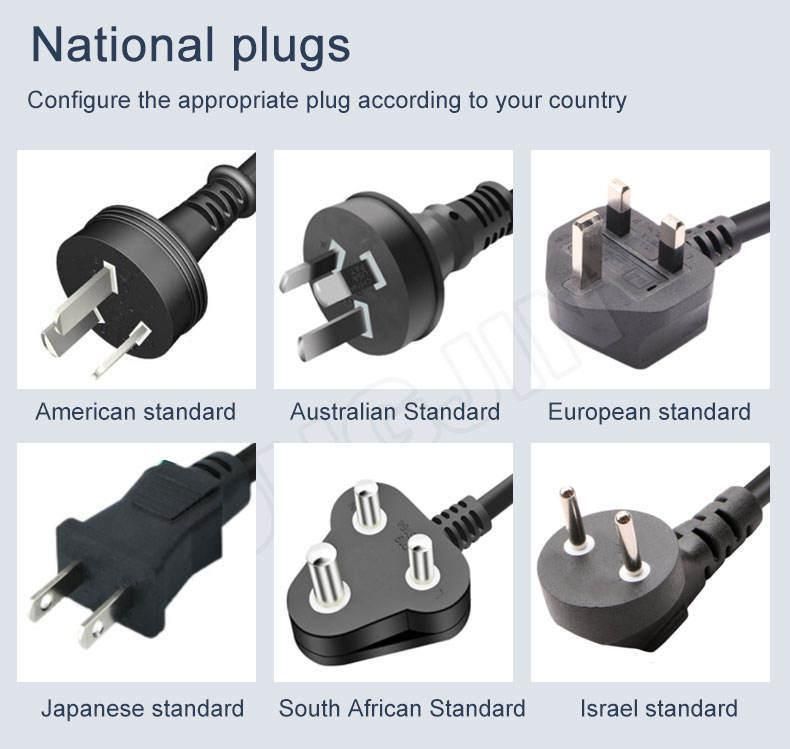

Power supply	220V/50hz
Number of workstations	1/set
Operation method	Touch screen
Action actuator	SMC pneumatic slide table, stepper motor
Insertion frequency (motion beat)	1~60 times/min (adjustable)
Counter	6 bits (built-in)
Voltage	220V
Power	100W
Air pressure	0.4~0.6Mpa
Dimensions	600*550*550 mm
Weight	35KG
