• Model NO.：HD-A521-1
• Weight：100-500Kg
• Power Source：AC220V
• Standards：En71, ANSI, UL, ASTM, Ista
• Specimen Size：1000*1200mm or Custom
• Max Weight：100kg
• Amplitude：1 Inch or 25.4mm
• Warranty：One Year
• Delivery Time：15 Days After Receive The Deposit
• Maximum Test Load：100kg
• Frequency Range：60-300rpm
• Amplitude Range：25.4mm
• Vibration Mode：Roundtrip
• Transport Package：Strong Plywood Case
• Trademark：Haida
• Origin：Guangdong, China
• HS Code：9024109000
• Production Capacity：150 Sets, Month

Basic Info.

Model NO. HD-A521-1 Weight 100-500Kg Power Source AC220V Standards En71, ANSI, UL, ASTM, Ista Specimen Size 1000*1200mm or Custom Max Weight 100kg Amplitude 1 Inch or 25.4mm Warranty One Year Delivery Time 15 Days After Receive The Deposit Maximum Test Load 100kg Frequency Range 60-300rpm Amplitude Range 25.4mm Vibration Mode Roundtrip Transport Package Strong Plywood Case Trademark Haida Origin Guangdong, China HS Code 9024109000 Production Capacity 150 Sets/ Month

Product Description

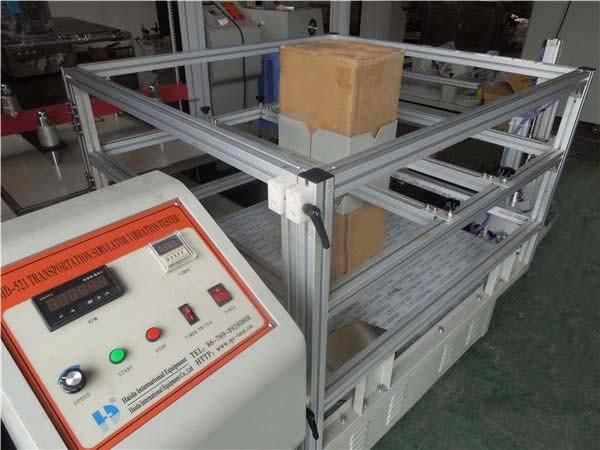

Microcomputer servo Packaging boxes Simulation Vibration Testing Instrument machine
Description:

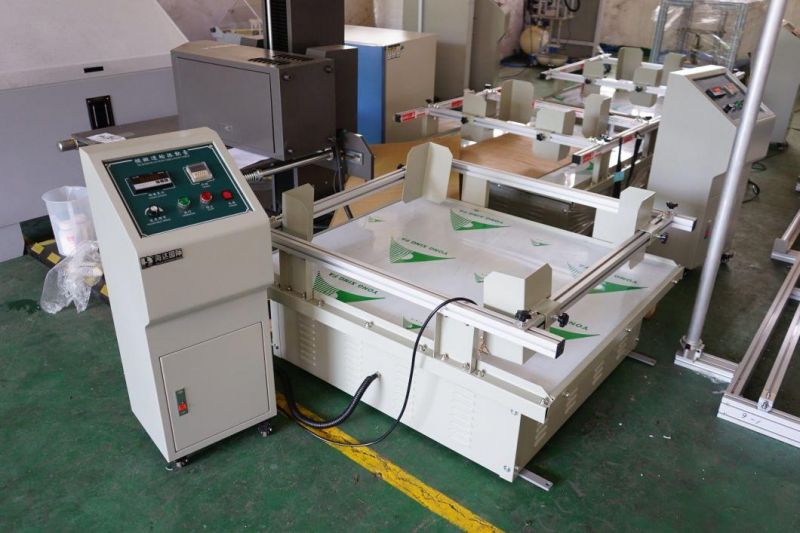

The transport vibration tester, which simulates a transportation environment, is applicable to the vibration test of toys, electronics, furniture, gifts, ceramics, communications, packaging, equipment, computer and automobile components, etc.

Features:
1. Low price, which is only 10% of the same products in the USA.
2. The digital screen display the vibration frequency
3. Use rail track for the installation of the test sample, operate easily and safely
4. The pedestal of the machine applies heavy style channel with vibration attenuation pad, convenient, stable, no need to install the land-end screw.

Parameters:
(The table parameters for the company Standard Model parameters, we support customer customization parameters)

Max. Test Load	100 Kg
Frequency Range	60-300 rpm
Amplitude Range	25.4 mm (1 inch)
Vibration Mode	Roundtrip
Simulation Speed	25~40 km/h
Woke Table Size	1000×1200 mm
Outside Dimension (L×W×H)	1255×1070×660 mm
Power Capacity	1 HP
Weight	125 Kg
Environmental Conditions	Temperature: 5~40°c;  Related Humidity: <85%
Speed Mode	DC converter or AC Frequency Control
Power	220V, 50 Hz

(The table parameters for the company Standard Model parameters, we support customer customization parameters)





The introduction of Haida
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.




After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

FAQ:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
