• Model NO.：GD-H1035
• Transport Package：Wooden Case or Plywood
• Origin：China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-H1035 Transport Package Wooden Case or Plywood Origin China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

GD-H1035 Muffle Furnace Sulphate Ash Content Tester ASTM D874


Introduction:

The Sulphate Ash Content Tester adopts a new ceramic furnace as a heating body, which is beautiful in appearance and is suitable for detecting the ash content of sulfate in the additive concentrate and the additive concentrate of the lubricating oil. The lower limit of the instrument for determining sulphated ash is 0.005%.


Main Parameters:

1. Applicable standards: GB/T2433, ISO3987, ASTM D874
2. Heating method: imported electric heating wire heating
3. Temperature control mode: imported PID temperature controller
4. Temperature control range: normal temperature ~800ºC
5. Temperature control accuracy: ±10ºC


Key Features:

1. The hot ceramic furnace has good heat preservation effect to avoid burns to the staff
2. Microcomputer processing and PID control, digital display setting and actual temperature, accuracy 0.1ºC, Pt100 RTD temperature probe
3. Porcelain silicon evaporating dish, 50~100ml, 120~150ml, in line with standard requirements
4. Loose-leaf furnace door, convenient to switch
5. The electrical control box is separated from the heating box to reduce damage to the electrical box caused by high temperature
6. Split structure, easy to operate
7. Imported electric furnace wire heating, extending the service life
8. The casing is made of high quality cold rolled steel plate

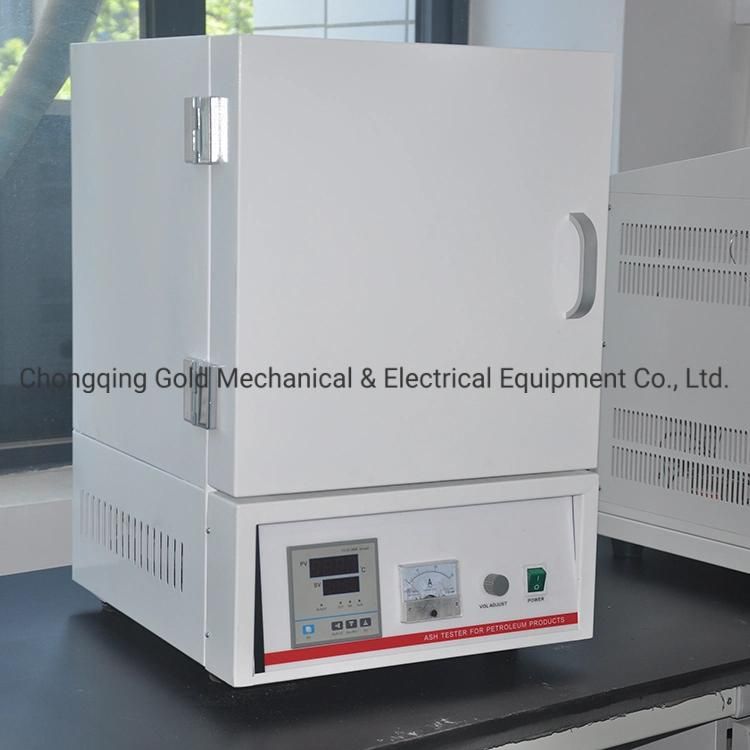

Real Picture:
