Auto Bitumen Centrifuge Extractor for Testing Bitumen Percentage in Bituminous Paving Mixtures
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Bitumen Extractor：Electric Centrifuge Extractor for Bitumen
- Centrifugal Bitumen Extractor：ASTM D2172 Asphalt Centrifuge Extractor
- Centrifuge Extractor for Bitumen：Auto Centrifuge Extractors for Bitumen
- Centrifuge Apparatus：Centrifuge Extractor Extraction Apparatus
- Warranty：1 Year
- Transport Package：Wooden Case or Plywood
Base Info
- Model NO.：GD-0722A
- Origin：China
- HS Code：9031809090
- Production Capacity：100sets,Month
Description
Basic Info.
Model NO. GD-0722A Origin China HS Code 9031809090 Production Capacity 100sets/MonthProduct Description

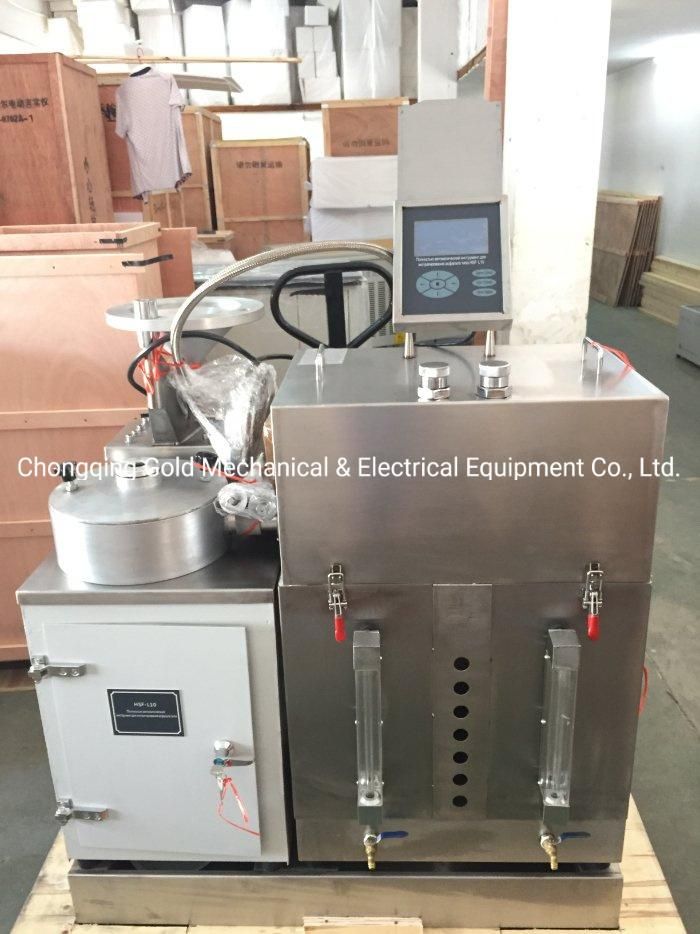

Auto Bitumen Centrifuge Extractor for testing Bitumen Percentage in Bituminous Paving Mixtures
Introduction of Auto Centrifuge Extractor:
The Auto Bitumen Centrifuge Extractor is designed and made as per T0722-1993 and ASTM D2172 Standard Test Method for Bitumen Content of Bituminous Mixture by the Centrifuge Separation Method in Industrial Standard of People's Republic of China JTG E20-2011 Specification and Test Methods for Bitumen and Bituminous Mixture for Highway Engineering.
The Auto Bitumen Centrifuge Extractor is suitable to determine bitumen content (bitumen-mineral aggregate ratio) in the bituminous mixture, which is made of viscous petroleum bitumen, by the centrifuge separation method. It is an ideal instrument for pavement construction units, detection unit, scientific research institutions and colleges.
Features of Auto Centrifuge Extractor:
1. Floor-type structure. It is a fully-automatic and intelligent instrument for testing the bitumen content in the bituminous mixture.
2. Micro-processing technology. Man-machine dialog. The parameter settings, working status and data are all displayed directly on the LCD. Easy to operate.
3. The bitumen extraction and solvent recycling become one. Low pollution. Unique high-low-high speed extraction setting can make the fine ores collect more completely. The test result is reliable.
Specifications of Auto Centrifuge Extractor:
1. Capacity: 1000g~1500g
2. Extracting precision: ≤0.1%
3. Extracting time: (20~40)minutes per time
4. Centrifuging speed: 5500r.p.m, 11000r.p.m
5. Working environment: (5~40)ºC,RH<80%
6. Power supply: AC380V±10%, 50 Hz
7. Maximum power consumption: About 5kw
8. Cooling water: Pressure:≮2bar,temperature:≯12ºC
9. Net weight: About 300kg
10. Dimension: 1400mm×800mm×1600mm
