PV Module Solar Panel Environmental Test Chamber with IEC61215

Guangdong Komeg Industrial Co., Ltd.
  • Power Supply：380V
  • Certification：CE, TUV, ISO
  • Warranty：1 Year
  • Interrior Material(W*H*D)：3000*2100*4300mm
  • Volume(M3)：27.1cbm
  • Exterior Material(D*W*H)Cm：5050*2350*2250mm

Base Info

  • Model NO.：KMHW-13
  • Temp. Constancy：+,-0.5oc
  • Humidity Constancy：+,-2.5%R.H.
  • Temp. Uniformity：+,-2.0oc
  • Door Size：Single Wing:W80*H180;Double Wing:W160*H180
  • Controller：Touch Screen Controller
  • Operation Mode：Setting, Program
  • Standard Accessories：No Fuse Breaker, Over Pressure, Over Heat and Over
  • Transport Package：Strong Plywood Case, Meet International Standards
  • Specification：Standard and Customized
  • Trademark：KOMEG
  • Origin：Dongguan, China
  • HS Code：90321000
  • Production Capacity：1000 Sets,Year

Description

Overall structure, the chamber consists of three parts: Insulation chamber body, separate refrigerating unit and electric control cabinet.
  1. Interior size
W 1200 × H 2300 × D 1500  mm,   inner volume: 4.14 m3
  1. External Size
Approx. W 1500 × H 2700 × D 3530 mm,  (not including the machine protruding part, like the control cabinet of 350mm )
  1. External material
High-quality carbon stainless steel plate, the surface for electrostatic color spray treatment
  1. Interior material
stainless steel (SUS # 304)
  1. Insulation material
Rigid polyurethane foam + glass wool.
Insulation panels is connected with eccentric hook
  1. Floor load bearing
Chamber bottom plate reinforcement, Bearing capacity:
not less than 300KG/m2
  1. Door
Left open door, door size of W1200*H2300mm,
With observation windows W400*H400 mm,
  1. Cable hole
Open total 2 cable holes of φ150mm, on the center of both left and right side of the chamber, Equipped with rubber isolation plugs and plastic cover.
  1. Lighting lamp
11W/AC220V, 1 ea, located on the observation window
  1. Power distribution   control cabinet
Total power circuit breaker, over-temperature protection, and emergency power off button.
Photos show

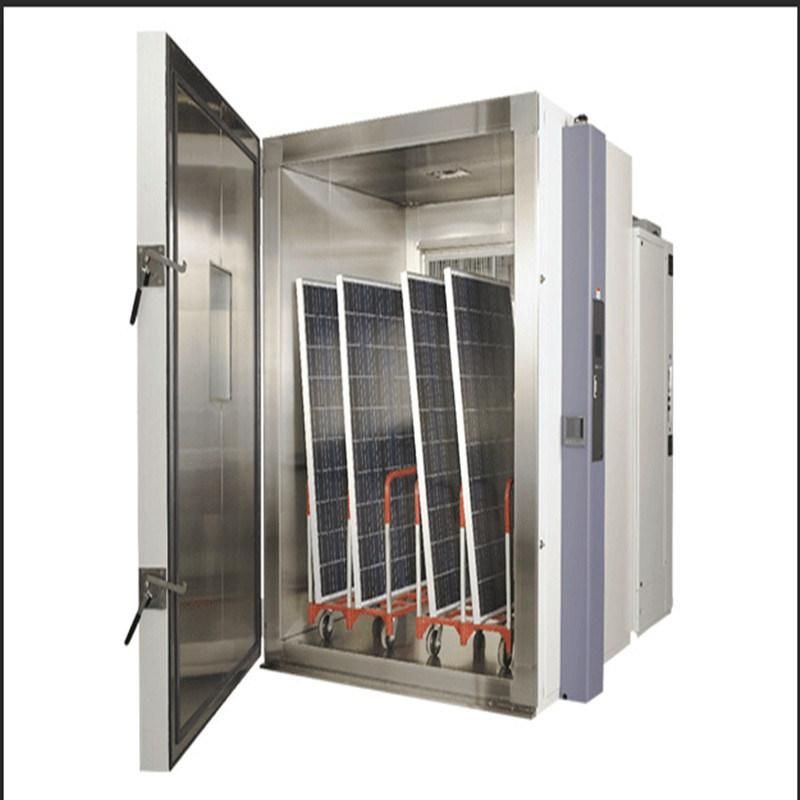

PV Module Solar Panel Environmental Test Chamber with IEC61215

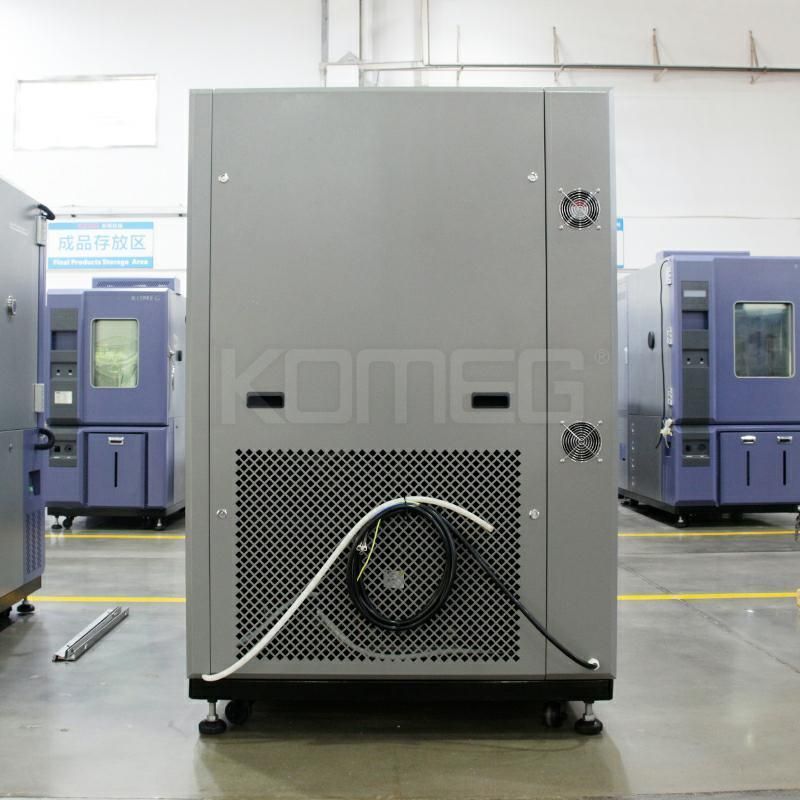

PV Module Solar Panel Environmental Test Chamber with IEC61215
PV Module Solar Panel Environmental Test Chamber with IEC61215PV Module Solar Panel Environmental Test Chamber with IEC61215
