• Model NO.：KPD-315
• Maximum Sample Size：1000*800*1000mm
• Base Area Size：1700*1200*20mm
• Motor Power：0.85kVA
• Exterior Size of Tester：1700*1200*2500mm
• Net Weight：600kg
• Applicable Standards：ISO02248-1972(E)
• Transport Package：Strong Plywood Case, Meet International Standard
• Specification：Standard and Customized
• Trademark：KOMEG
• Origin：Guangdong, China
• HS Code：90321000
• Production Capacity：1000 Sets Per Yesr

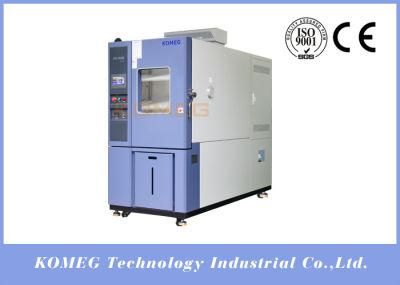

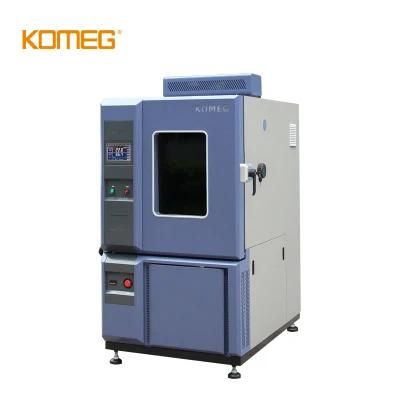

Model

KMHW-2360L


Volume(m³)

2360L


Interior DimensionsW2100 x H2100 x D2050mmExterior DimensionsW3250 x H2350 x D2250mmSafety Devices(standard)

No fuse breaker, over pressure, over heat and over current protection for compressor,

over temperature protection, over load protection for blower, dry heat protection

Standard accessories

Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator


Control System

Balanced Temperature & Humidity Control System


Refrigeration system

Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )

Controller

Panel: 7-inch LCD Touch panel, Chinese or English display selectable
Operation model : Program or fix point running
Memory capacity:120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles


Temp. range

Maximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC

Humidity Range

10%, 20%, 30% ~ 95%


Temp. constancy

±0.5 ºC


Humidity constancy

±2.5%R.H


Temp. uniformity

±2.0 ºC


Humidity uniformity

±5.0%R.H
