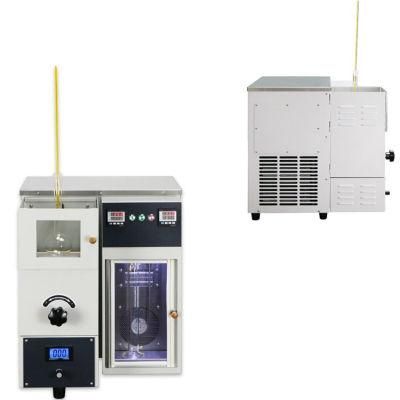

New Type ASTM D86 Low Temperature Distillation Apparatus for Gasoline
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Product Name：Low Temperature Distillation Apparatus
- Standard：ASTM D86, GB,T6536
- Measurement Range：0~60celsius
- Refrigeration：Yes
- Single/Double Unit：Single
- Atmospheric/Vacuum：Atmospheric
Base Info
- Model NO.：GD-6536C
- Usage：Determine The Distillation Characteristics
- Delivery Time：10 Working Days(If Urgent, We Can Push)
- Test Parameter：Petroleum Products
- Transport Package：Wooden Case for Gd-6536c
- Trademark：GOLD
- Origin：Chongqing, China
- Production Capacity：100 Sets, Month
Description
(2) Accuracy:±0.5ºC
(3) Display:LED
Relative humidity:≤85%
Main technical features
1. The ASTM D86 distillation apparatus adopts a quartz heating furnace form to ensure the safety of the test, and the heating power is continuously adjustable.
2.The height of the flask is adjusted by the lifting device, and the observation window of high-temperature and heat-insulating glass is equipped to observe the whole test process.
3.The condensate pipe water bath has temperature control function, which can be set and adjusted arbitrarily within the range of 0 ºC ~ 60 ºC. The temperature in the bath is uniform and meets the test requirements.
4.The ASTM D86 distillation apparatus adopts advanced PID temperature control system, with high temperature control accuracy (accuracy up to ± 0.5 ºC) and stability.
5.The ASTM D86 distillation apparatus is equipped with a cylinder receiving chamber, which can measure the distillation range of gasoline.
Related Products
| Parameter | GD-6536A | GD-6536B | GD-6536C | GD-0165 |
| Standards | ASTM D86 | ASTM D86 | ASTM D86 | ASTM D1160 |
| Measurement range | Ambient temperature~400ºC | 0~60ºC | 0~60ºC | Ambient temperature~100ºC |
| Precision | ±0.5ºC | ±0.5ºC | ±0.5ºC | ±1ºC |
| Refrigeration | No | Yes(compressor) | Yes(compressor) | No |
| Single/Double unit | Double | Double | Single | LCD |
| Atmospheric/Vacuum | Atmospheric | Atmospheric | Atmospheric | Vacuum |
Our Certificate:

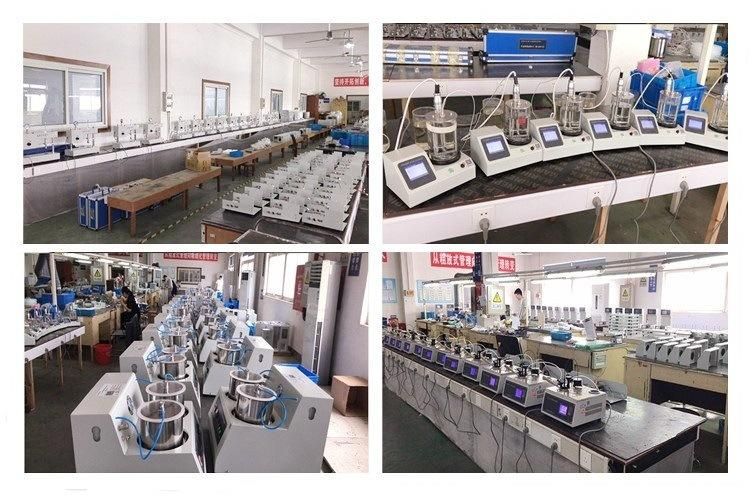

Company Information:
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .
Contact Us:
If you have interest, please feel free to contact with me:
Chongqing Gold Mechanical&Electrical Equipment Co., Ltd
website: chinainstrument.en.made-in-china.com
