• Model NO.：STLLJ-2
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Electric
• Display：Digital
• Control：Digital Electronic
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Not Have
• Max. Tension Power：10kn, 20kn, 30kn
• Testing Power Accuracy：0.01mm
• Between Two Clamps Largest Net Spacing D：500mm
• Speed Rate：0.1-500mm,Min
• Speed Control Accuracy：Better Than 1%, 0.5%
• Machine Grade：Better Than One Grade
• Work Voltage：AC 220V±10%
• Transport Package：Wooden Case
• Specification：116X77X155
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STLLJ-2 Accuracy Grade 1 Load Way Electronic Load Loading Method Electric Display Digital Control Digital Electronic Weight 100-500Kg Power Source AC380V Oil Cylinder Position Not Have Max. Tension Power 10kn, 20kn, 30kn Testing Power Accuracy 0.01mm Between Two Clamps Largest Net Spacing D 500mm Speed Rate 0.1-500mm/Min Speed Control Accuracy Better Than 1%, 0.5% Machine Grade Better Than One Grade Work Voltage AC 220V±10% Transport Package Wooden Case Specification 116X77X155 Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

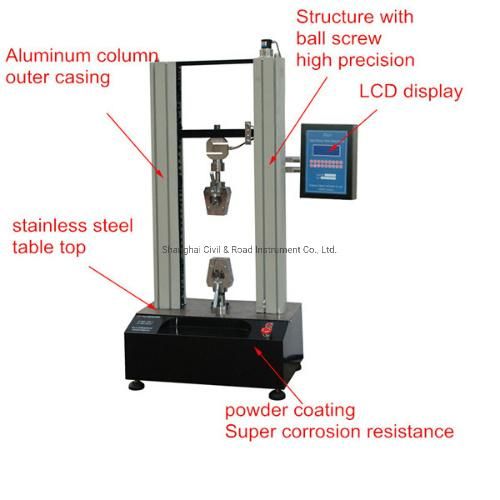

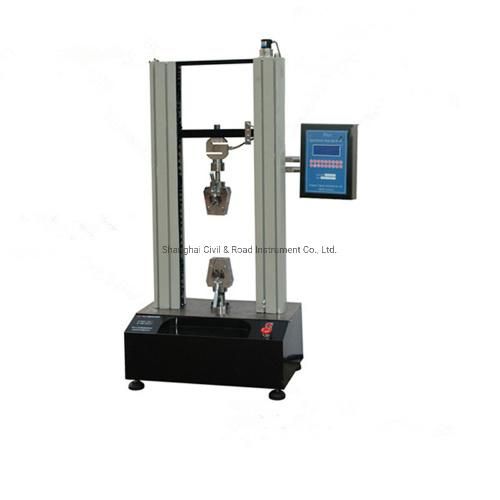

STLLJ-2 Digital Display Tension Testing Machine

Function and Usages:

Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. This type tensile testing machine used for testing tension power of both metallic and non-metallic materials such as rubber, plastic, textiles,
waterproofing material, wire and cable, safe belt, leather belt composite materials, net wire, steel, stainless steel, metal rod, plates and other materials. By use suit accessories, it also can perform compression, bending and flexure test.
Standard: ASTM, ISO, DIN, GB and other international standards.

Main Technical Parameters:


Max. tension power	10kN,20kN,30kN
Testing power accuracy	better than 1%,0.5%
Between two clamps largest net spacing distance	500mm
Speed rate	0.1-500mm/min
Speed control accuracy	better than 1%,0.5%
Machine grade	better than one grade
Work voltage	AC 220V±10%
