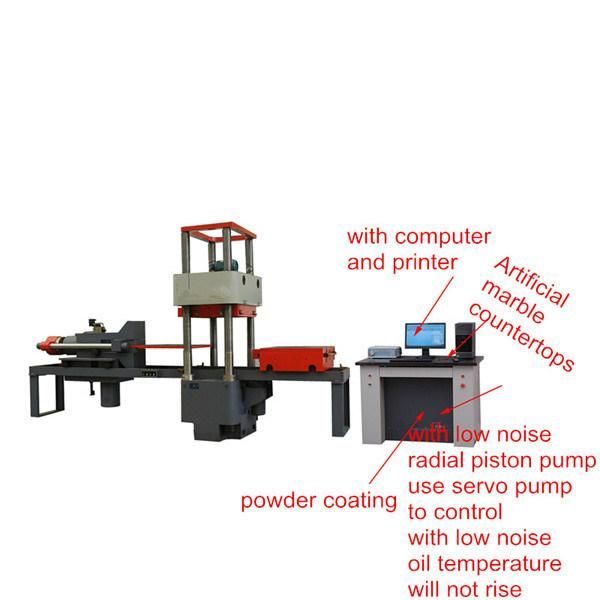

Stye-5000 Rubber Plinth Shear and Compression Machine
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service：24 Hours Online Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Compression Testing Machine
- Maxcapacity：5000kn
Base Info
- Model NO.：STYE-5000
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
- Control：Automatic Digital
- Weight：5800
- Power Source：AC380V
- Oil Cylinder Position：Under
- Max. Testing Power：5000kn
- Max. Shearing Power：1000kn
- Max. Pressure of The Pump MPa：31.5
- Swept Capacity of The Pump L/Min：3-4
- Size of The Bearing Plate mm：740X740
- Max. Distance of The Piston mm：100
- Distance Between Columns mm：750
- Net Weight Kg：5500
- Size of The Main Frame：1100X800X2700mm
- Size of The Cabinet：480X585X1135mm
- Packing Weight Kg：5800
- Transport Package：Wooden Case
- Specification：1100x800x2700mm
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STYE-5000 Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Automatic Digital Weight 5800 Power Source AC380V Oil Cylinder Position Under Max. Testing Power 5000kn Max. Shearing Power 1000kn Max. Pressure of The Pump MPa 31.5 Swept Capacity of The Pump L/Min 3-4 Size of The Bearing Plate mm 740X740 Max. Distance of The Piston mm 100 Distance Between Columns mm 750 Net Weight Kg 5500 Size of The Main Frame 1100X800X2700mm Size of The Cabinet 480X585X1135mm Packing Weight Kg 5800 Transport Package Wooden Case Specification 1100x800x2700mm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description
STYE-5000 Rubber Plinth Shear and Compression Testing Machine| Max. testing power(kN) | 5000 |
| Max. shearing power(kN) | 1000 |
| Max. pressure of the pump(MPa) | 31.5 |
| Swept capacity of the pump(L/min) | 3~4 |
| Size of the bearing plate | 740×740(mm) |
| Max. distance of the piston(mm) | 100 |
| Distance between columns(mm) | 750 |
| Working voltage | AC 380V±10%(3 phases and 4 lines)AC 220V±10%(Single phase) |
| Working temperature(ºC) | 10~35 |
| Relative ambient humidity | ≤ 80% |
| Net weight(kg) | 5500 |
| Size of the main frame | 1100×800×2700mm |
| Size of the cabinet | 480×585×1135mm |
| Packing weight(kg) | 5800 |
| Power of the motor(kW) | 3 |
| Using servo motor | driven mute pump |
