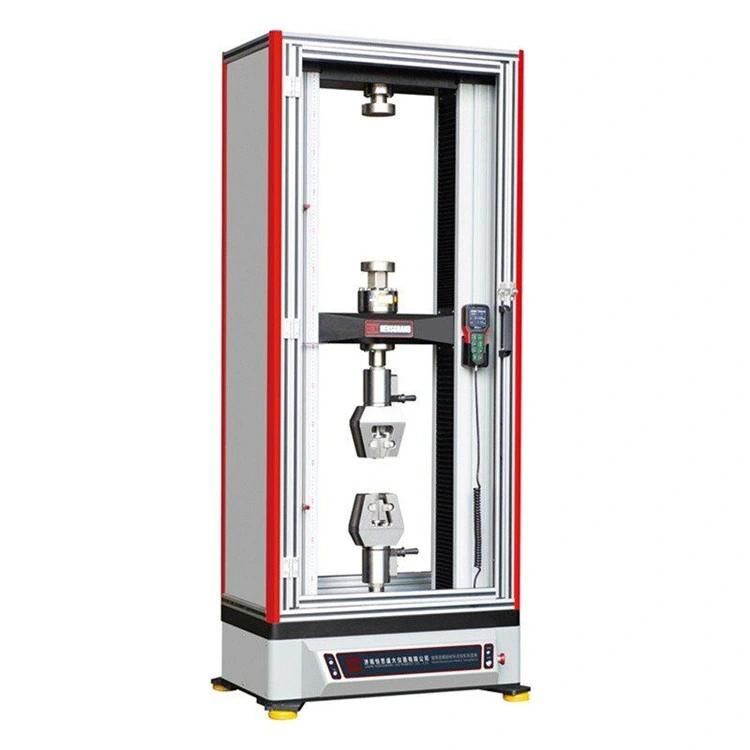

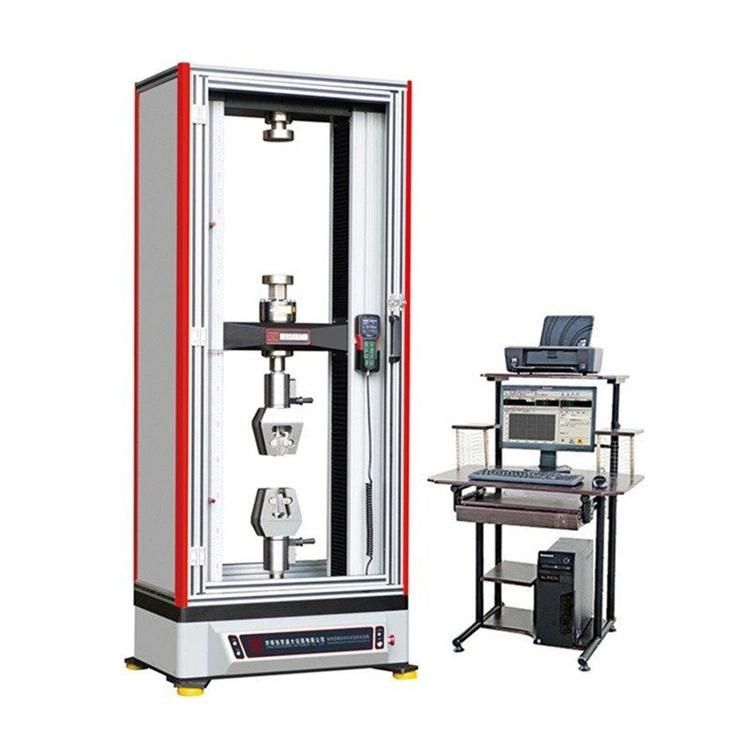

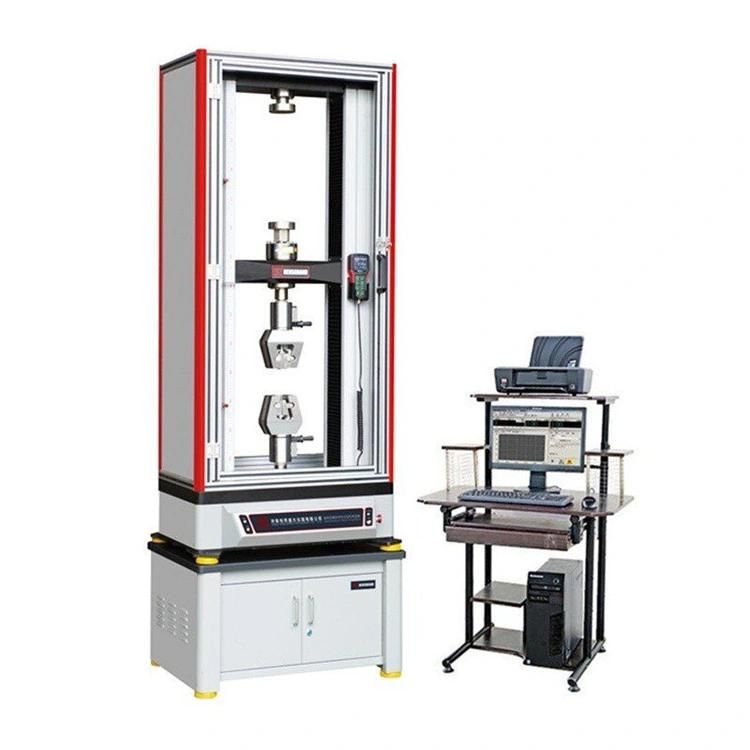

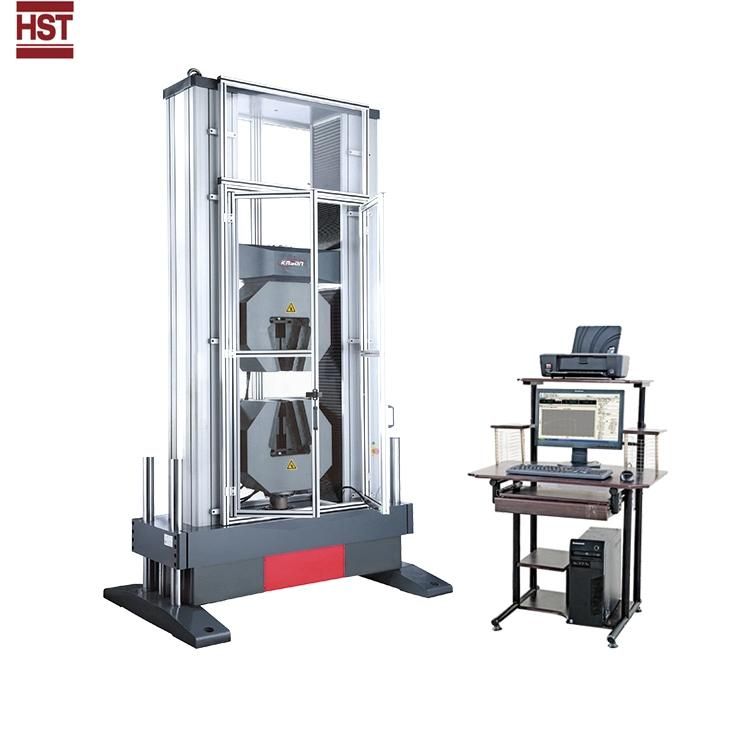

100kn Computerized Electronic Material Testing Machine
Jinan Kason Testing Equipment Co., Ltd.- Type:Universal Testing Machine
- Maxcapacity:100kn
- Accuracy Grade:1 or 0.5
- Load Way:Electronic Load
- Loading Method:Static Load
- Display:Computer Display
Base Info
- Model NO.:Material Testing Machine
- Control:Computer Control
- Weight:100-500Kg
- Power Source:AC220V
- Oil Cylinder Position:Motor Under
- Product Name:Universal Testing Machine
- Transport Package:Plywood Exporting Package
- Specification:350kg, 1.35CBM, color can customize
- Trademark:HST
- Origin:Jinan, Shandong, China
- HS Code:9024109000
- Production Capacity:800 Set,Month
Description
Basic Info.
Model NO. Material Testing Machine Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Motor Under Product Name Universal Testing Machine Transport Package Plywood Exporting Package Specification 350kg, 1.35CBM, color can customize Trademark HST Origin Jinan, Shandong, China HS Code 9024109000 Production Capacity 800 Set/MonthProduct Description
100kN Computerized Electronic Material Testing Machine1. Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:
Model | WDW-100 |
Max. load | 100 kN |
Structure | Four-column floor model, (upper is tensile and lower is compression; upper is compression and lower is tensile) |
Control method | Computer control |
Load accuracy | 1 class/0.5 class (optional) |
Load range | 1%~100%F·S/0.4%-100% FS (optional) |
Resolution | 1/300000 |
Measuring range of deformation | 2%-100% |
Accuracy Indication of deformation | ≤±1% |
Disp. indicating relative error | ≤±1% |
Displacement Resolution | 0.01mm |
Effective Tensile space | 600mm(can be customized) |
Effective Compression space | 600mm(can be customized) |
Effective Testing width | 450mm(can be customized) |
Power supply | AC220V±10%,50Hz (can be customized) |
