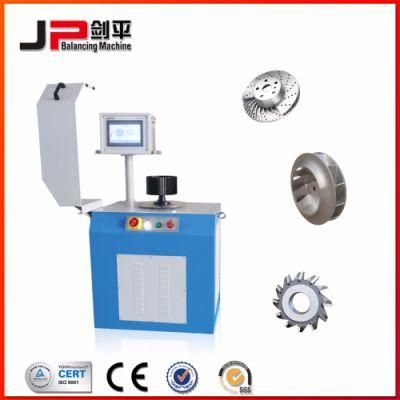

Flywheel Balancing Machine in Hot

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.
  • Type：Universal Testing Machine
  • Maxcapacity：>1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：PHLD-100
  • Control：Computer Control
  • Weight：1000-2000Kg
  • Power Source：AC380V
  • Transport Package：Packed in Fumigated Wood Box
  • Specification：ISO. CE. SGS
  • Trademark：JP
  • Origin：Shanghai China
  • HS Code：90311000
  • Production Capacity：100sets,Month

Description

Technical data at a glance

PHLD-100

PHLD-200

Max Mass of  Workpiece ( with clump) (kg)

 100

200

Max Diameter of Workpiece (mm)

6001)

10002)

6001)

10002)

Height of Workpiecemm

 200

200

Rotation Speed of Main Axis(r/min)

 ~1080

~1080

Motor Power(kw)

3variable-frequency

4variable-frequency

Min Achievable Residue Unbalace Amount (emar )

 5g· mm/kg

5g· mm/kg


1) With hood
2) Without hood
Flywheel Balancing Machine in Hot

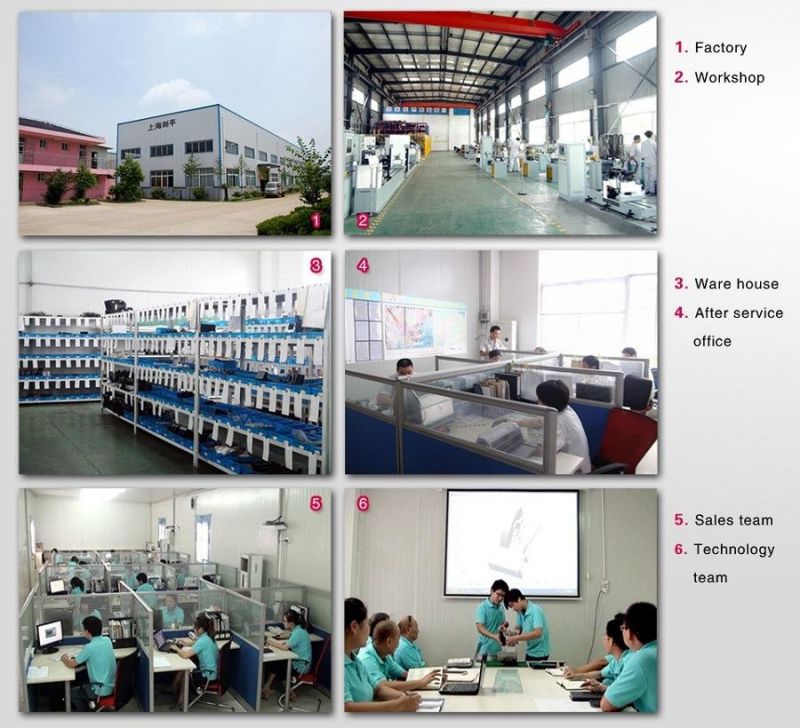

Factory Outlook
