• Model NO.：180
• Origin：China
• Production Capacity：100PCS,Month

Basic Info.

Model NO. 180 Origin China Production Capacity 100PCS/Month

Product Description

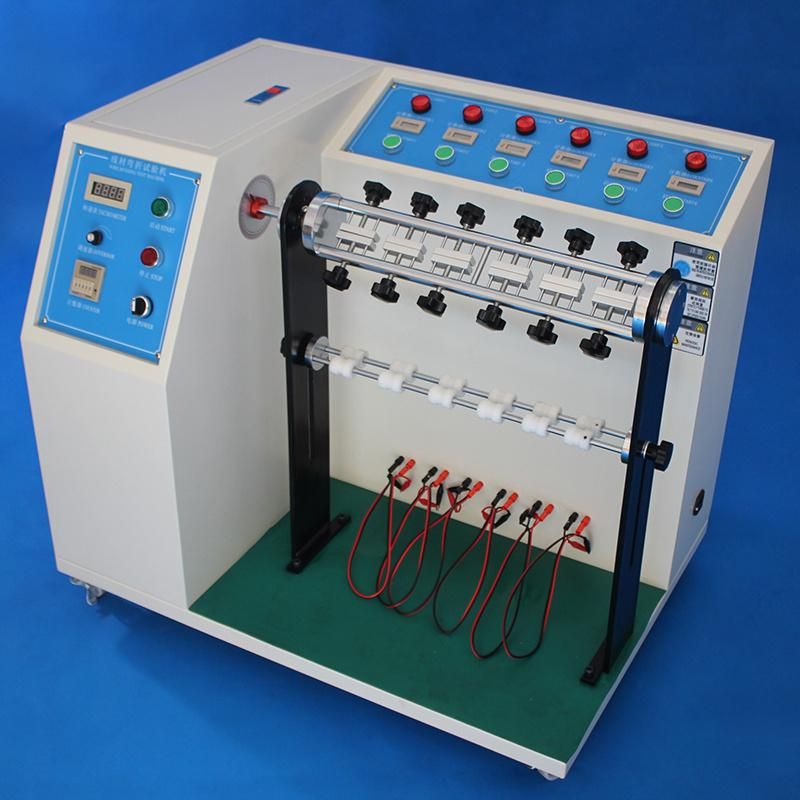

The tester complies with UL8167 and other relevant standards "general safety requirements for cord elements and power cords". it is applicable to bending test of power line and DC line by relevant manufacturers and quality inspection departments
The tester is specially used to test the bending strength of plug leads and cables.
The speed is collected by photoelectric sensor and transmitted to the digital display meter. The value can be read by adjusting the stepless governor directly.
Test mode
The test method is to fix the test sample on the fixture, add a certain load, the fixture swings left and right, check its disconnection rate after a certain number of times, or check its total count times when it cannot be powered on, and stop working by itself.

Test rate	10-60 times/min
Bending angle	10°-180°
Station	Conduct 6 plug lead tests at the same time each time
Bending times	0-999999, preset
Weight	50 100 200 300 500g, 6 each
Dimension	85*60*75cms
Tester weight	100kg

If you need more further details about our machines,  please feel free to contact us .
