• Model NO.：HD-A523
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Load Capacity：600kg
• Impact Surface Dimension(L*H)mm：1600*2200mm
• Design Standard：Ista-1e
• Plane Inclined to The Vertical Angle：10°
• Velocity Range (M/S)：1.1~2.3m,S
• Power Supply：Power Supply
• Control System：PLC Type
• Impact Surface Material：Rubber Wood with Two-Rail Steel Track
• Delivery Time：20 Days After Receive The Deposit
• Transport Package：Strong Wooden Case
• Specification：ISTA-1E
• Trademark：HAIDA
• Origin：China
• HS Code：9024109000
• Production Capacity：1000sets,Year

ItemDescriptionLoad capacity100kg-600kg (can be customized)Impact surface dimension1600*2200mm,2100*2400mm (can be customized)Rolling carriage table dimension1220*1220mm (can be customized)Control systemTouch screen controllerMax. slide length2200mm (can be customized)Plane inclined to the vertical angle0°, 15°(can be customized)Velocity range1.1~2.3m/sImpact surface materialRubber wood with two-rail steel trackWorking conditionTemperature 0~40°, humidity ≤80%  (no condensation)Floor area7220*1800mmSafety featuresE-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat Feature:
1. Flexible positioning and electric trolley. It is easy to fix and achieve the changeable value of speed.
2. The height of trolley is relatively low so that is easy to fix the specimen; the strong impact resistance board can guarantee the fastness of the structure.
3. The trolley can be adjusted to be horizontal in order to fix the specimen for customer. The angle adjustment is driven by air cylinder which is flexible and convenient.
4. In order to keep the test staff completely safe, the tester is with remote control function.
5. Before testing, the customer only needs to fix the tester on the ground when stalling it, no other complicated operation.
.
Explanation:
1. Power: The battery main switch
2. Stop: Stop test
3. Start: Press this button to start the test (it will be automatic stop when get the test times)
4.  up & down: Press UP or DOWN to adjust the rolling carriage up and down, the max. angle of rolling carriage with base is 13°
5. Counter: Setting the test times
6. Speed display: To display the velocity during test (m/s), and will automatic reset for another test
7. Time display: To display time during test(s)
8. Speeder: set the different frequency to change the impact velocity.

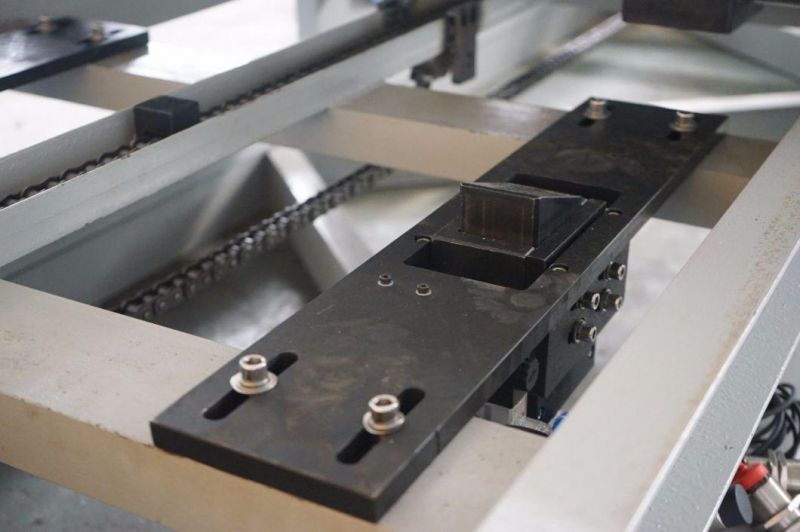

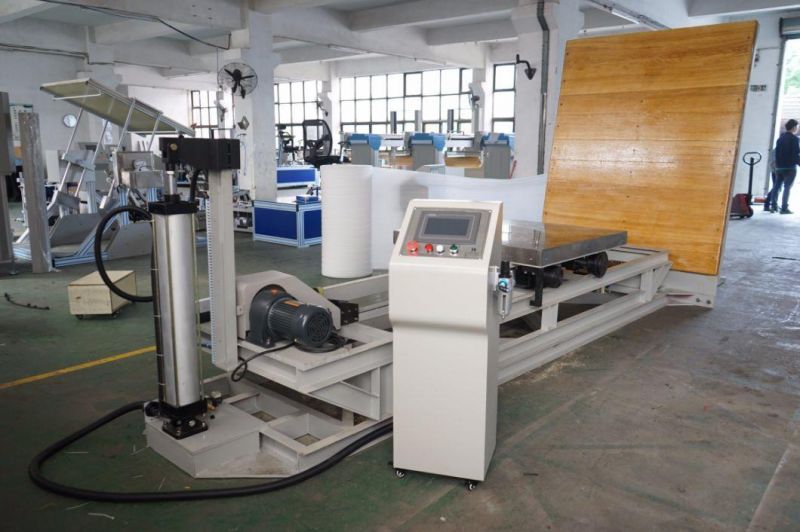

Product images:




The Introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
