Cheap Cleveland Open Cup Flash Point Test Apparatus

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Power Source：AC220V
  • Usage：Cleveland Open-Cup Flash Point Tester
  • Test Flame Applicator：It Applies The Test Flame Automatically
  • Temperature Range：Ambient Temperature~400celsius
  • Ignition Mode：Ignite Once Manually
  • Temperature Display：Thermometer

Base Info

  • Model NO.：GD-3536
  • Printing：No
  • Communication Port：No
  • Other Functions：Manually Adjust Heating Rate
  • Dimension：350*290*350mm
  • Delivery Time：10 Working Days(If Urgent, We Can Push)
  • Transport Package：Wooden Case for Gd-3536
  • Trademark：GOLD
  • Origin：Chongqing, China
  • Production Capacity：100 Sets, Month

Description

Model and product nameStandardApplicationFeaturesGD-3536 Cleveland Open cup flash point testerASTM D92applicable to all petroleum products with flash points
above 79ºC and below 400ºC except fuel oils1. The heating power is continuously adjustable

2.It is equipped with flame extinguishing cover



Main technical specification:

1. Power supply:  AC(220±10%)V, 50Hz.
2. Heating device: Quartz tube furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W.
3. Test flame applicator: It applies the test flame automatically.
4. Thermometer: (-6~400)ºC. It is the same as thermometer ASTM 11C.
5. Igniting device: (1) Ignition source: coal gas(or civil gas)
                             (2) Flame diameter is 3.2mm~4.8mm
6. Ambient temperature: (-10∼50)ºC
7. Relative humidity: ≤85%
8. Maximum power consumption:  650W

Related Products:
ParameterGD-3536GD-3536-1GD-3536AGD-3536D
Temperature rangeAmbient temperature~400ºCAmbient temperature~400ºCAmbient temperature~400ºCAmbient temperature~400ºC
Ignition modeIgnite once manuallyIgnite once manuallyIgnite once manuallyAutomatic
Temperature displayThermometerLCDColor LCDColor LCD
PrintingNoNoYesYes
Communication portNoNoNoYes
Other functionManually adjust heating rateAutomatically control temperature and display by LCDAutomaticAutomatic, with RS232 communication port
Dimension350*290*350mm340*320*450mm410*360*420mm520*380*310mm


Detail Images:

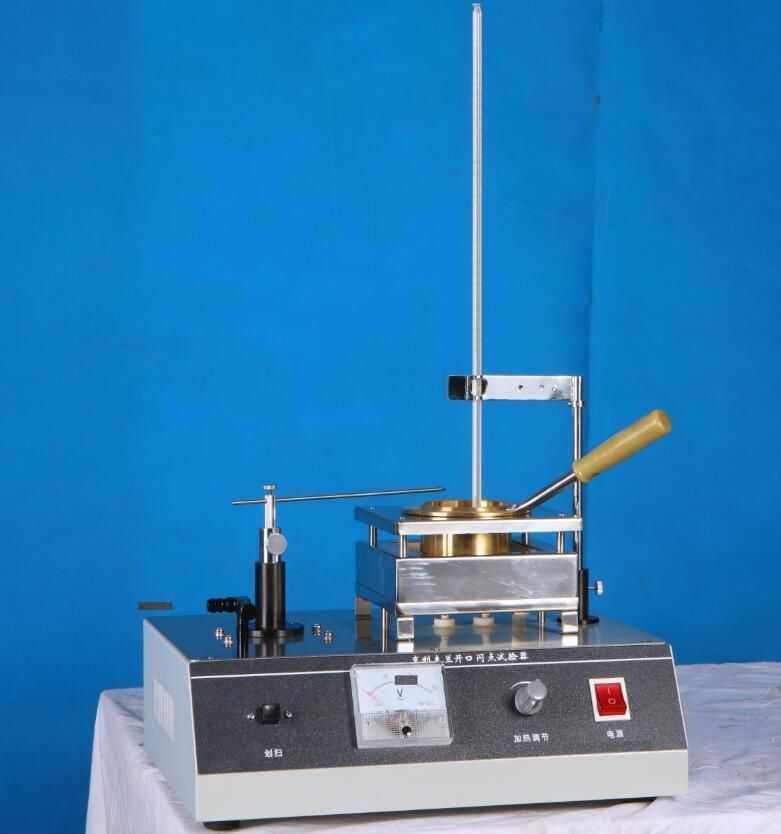

Cheap Cleveland Open Cup Flash Point Test Apparatus

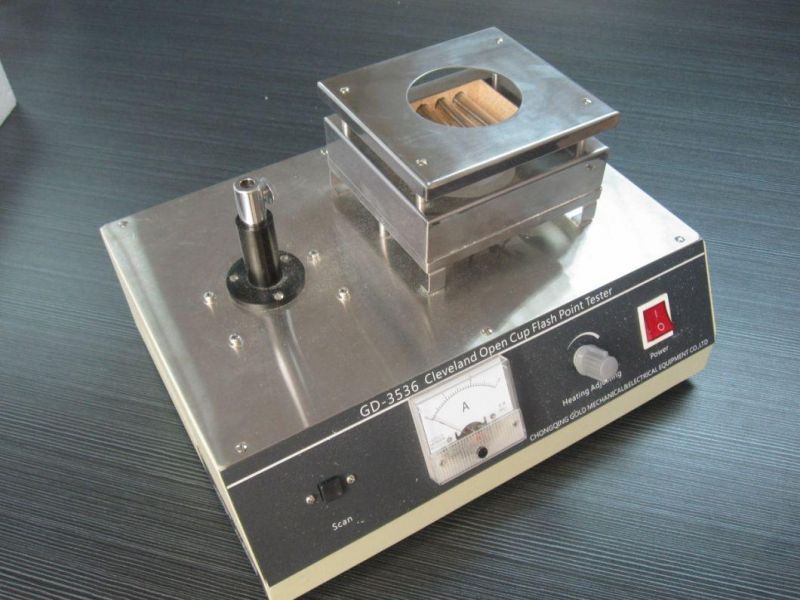

Cheap Cleveland Open Cup Flash Point Test Apparatus

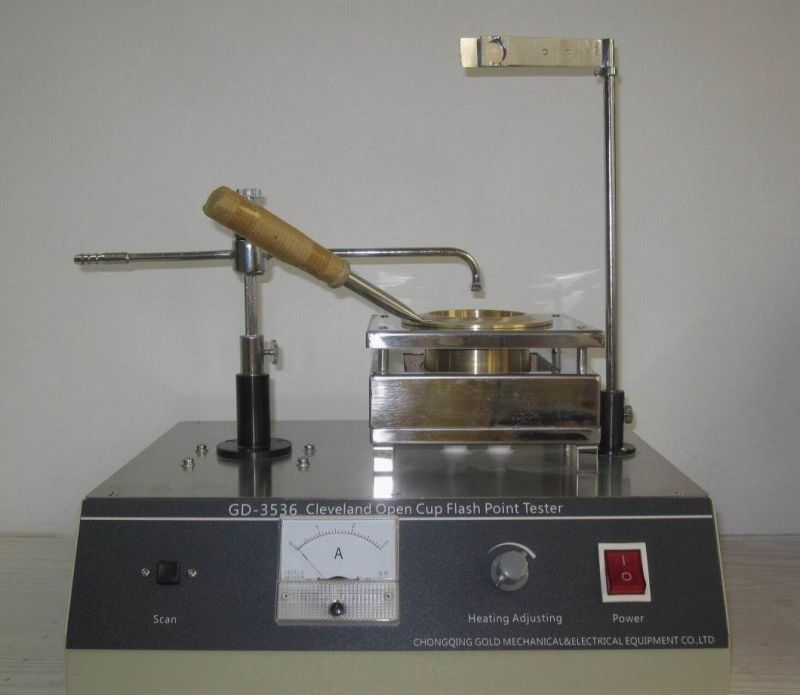

Cheap Cleveland Open Cup Flash Point Test Apparatus


About us:

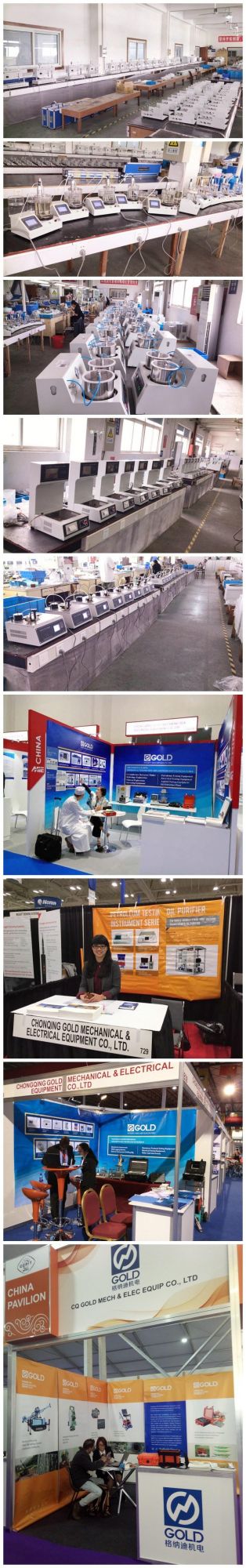

Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil teste,laboratory instrument,road building instrument.
