• Model NO.：GDY-1A+
• Loading Method：Dynamic Load
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Test Samples：Coal, Coke, Petrol, Diesel and Fuels
• Bomb Calorimeter：Calorific Value of a Combustible Substance or Fuel
• Heat Capacity：14000 J,K ~15000 J,K
• Resolution：0.001K
• Measurement Accuracy：+-60j,G
• Warranty：1 Year
• Transport Package：Venner Case
• Trademark：GOLD
• Origin：Made in China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GDY-1A+ Loading Method Dynamic Load Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Test Samples Coal, Coke, Petrol, Diesel and Fuels Bomb Calorimeter Calorific Value of a Combustible Substance or Fuel Heat Capacity 14000 J/K ~15000 J/K Resolution 0.001K Measurement Accuracy +-60j/G Warranty 1 Year Transport Package Venner Case Trademark GOLD Origin Made in China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

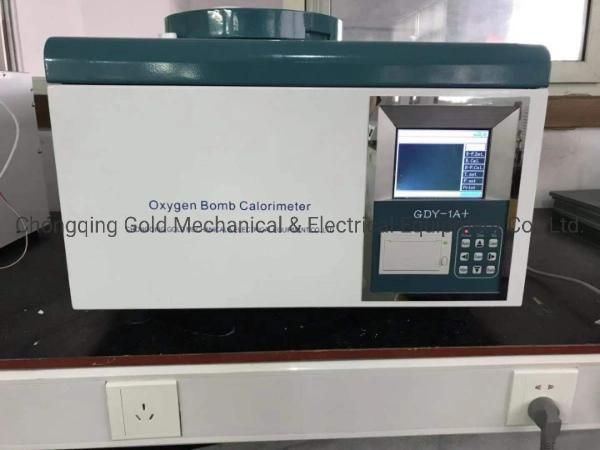

GDY-1A+ Automatic bomb calorimeter for measuring cross calorific value of solid and liquid samples

Preface:

1. For bomb calorimeter, the reaction takes place in a sealed metal container, which is placed in the water in an insulated container. Heat flow from the reaction crosses the walls of the sealed container to the water. The temperature difference of the water is measured, just as it was for a coffee cup calorimeter. Analysis of the heat flow is a bit more complex than it was for the coffee cup calorimeter because the heat flow into the metal parts of the calorimeter must be taken into account.

q_reaction = - (q_water + q_bomb)

where q_water = 4.18 J/(g·°C) x m_water x Δt

2. The bomb has a fixed mass and specific heat. The mass of the bomb multiplied by its specific heat is sometimes termed the calorimeter constant, denoted by the symbol C with units of joules per degree Celsius. The calorimeter constant is determined experimentally and will vary from one calorimeter to the next.

q_bomb = C x Δt

3. Once the calorimeter constant is known, calculating heat flow is a simple matter. The pressure within a bomb calorimeter often changes during a reaction, so the heat flow may not be equal in magnitude to the enthalpy change.


Main Features:

1. The instrument adopts technology of single chip machine, LCD screen, high accuracy temperature sensor and high performance A/D conversion device. It is a highly intelligent instrument.

2. The test procedure is fully automatic. After placing the sample and inputting the right parameters, the instrument will finish all the procedures without manual interference. It will print the test data directly after test is over.

3. This instrument adopts sealed oxygen bomb. The whole structure adopts stainless steel material.The strength is enough to resist 20MPa hydrostatic test under room temperature.

4. The inner water container is made of stainless steel and the section likes as a pear.Its water volume is 3000g and with electric stirrer to make sure the uniform temperature in water bath.

5. The external water jacket is a double container.It will be filled fully with water when testing,and the stirrer in the water jacket will work to ensure the uniform temperature and create the constant temperature condition for test requirement.


Technical Parameters:

1. Heat capacity: 14000 J/K~15000 J/K

2. Measuring range: (10~35)ºC

3. Resolution: 0.001 K

4. Measurement accuracy: ± 60J/g

5. Repeatability error: ≤0.2% (Grade C)

6. Pressure endurance of bomb: 20 MPa

7. Temperature measurement range: 10ºC~28ºC

8. Relative humidity: ≤85%

9. Power supply: AC 220V±5%, 50 Hz

10. Overall dimension: 600mm*480mm*460mm

11.Total power consumption: Less 150W

12. Note: Pellet press machine is optional

Automatic bomb calorimeter for measuring cross calorific value of solid and liquid samples
