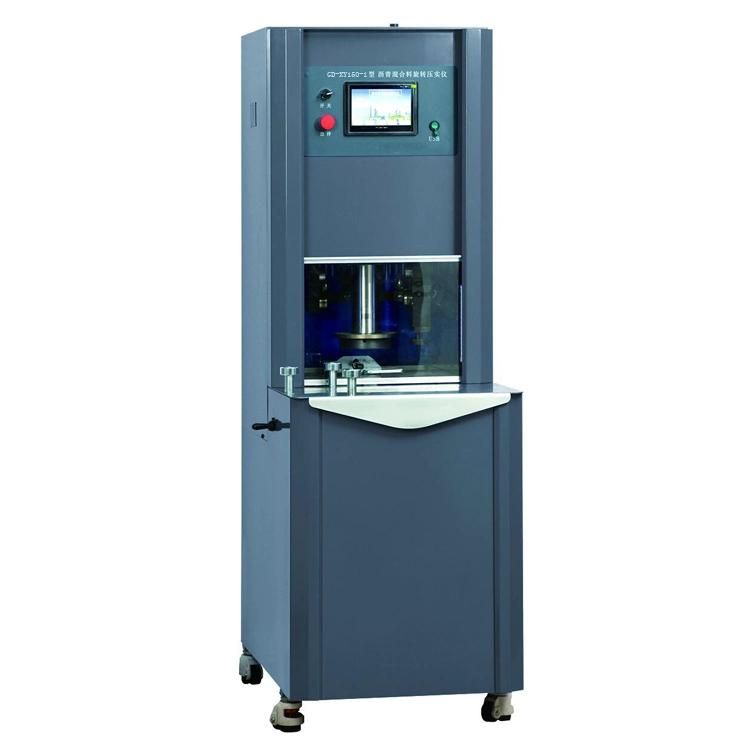

• Model NO.：GD-XY150
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Specification：620mm*460mm*355mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

Rotating compaction displacement range:  (0 ~ 250) mm.Molded specimen height range:  (50 ~ 170) mm.Rotational compaction displacement accuracy:  less than 0.10mm.Rotation angle of compaction:  (0 ~ 2)°, ± 0.02°, adjustable, set at the factory to 1.16 °± 0.02°(inner corners), can be customized a greater angle.1. Rotating compaction pressure:

  (0 ~ 1000) kPa ± 3% adjustable, set at the factory to 600kpa ± 2%,

more pressure can be customized.

2. Rotation speed:  (30 ± 0.3) r / min, can be customized continuously adjustable speed.Spinning times:  (0 to 999) times.Displacement measurement:  (0 ~ 220) mm.Tryout size:  Standard configuration Φ150mm, can be customized Φ100mm.The method of pressure:  pneumatic.The whole Dimensions  900mm * 700mm *1800mmInstrument packaging size:  1000mm * 800mm * 1950mmMold weight:  7.5kgWeight:  350kg









I. Main technical features



1. Using high hardness and high quality steel as a framework, to ensure accurate angle control.



2. Electro-pneumatic servo control regulation.



3. Color display touch control system, can be directly connected to the computer, through the interface of microcomputer can display

a variety of curve table, and with the touch screen bumpless connection, joint control over the instrument.



4. Can be easily set the angle of the rotation compaction, compaction pressure, rotating speed, the number of rotation and other test parameters.



5. Compaction process that can be measured and real-time display test rotation angle, compacting pressure, specimen compaction,

rotation number and other important parameters.



6. The operation of the compaction test result can be saved, draw, printed and so on.



7. Two kinds of operation modes to complete compaction experiment: (1) preset number of revolutions, (2) pre-specified height.



8. Interface configuration: 1 USB interface, 1 RS232 interface.



9. The integration of the built-in ejector.



10. Can do the heating insulation of the tryout rotation studio (optional).



At present, there are more than 150 employees, of whom more than 70% are technical personnel with a college

degree or above. With strong technical force and strong development, new products have been launched continuously.


Exhibition



We have developed sales channels in many countries such as the UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan,

India, Germany, Belgium, the USA, Mexico, Kenya, Nigeria, South Africa, and other countries worldwide. And we have

gained a strong advantage and high reputation in the international market.

After several years' development, our products have become highly intelligent and wide coverage.
And our company has become one of the leading manufacturers of petroleum testing instrument and electrical testing

instrument.

Packing

Goods are packed in veneer case, which is firm and safe for overseas shipment.
