Sthz-15b Pavement Concrete Core Drilling Machine
Shanghai Civil & Road Instrument Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：90kgs
- Type：Portable Concrete Core Drilling Machine
- Maxcapacity：No
- Accuracy Grade：1
- Load Way：No
Base Info
- Model NO.：STHZ-15B
- Loading Method：No
- Display：Digital
- Control：Manual Control
- Weight：90kgs
- Power Source：AC220V
- Oil Cylinder Position：No
- Product Name：Sthz-15b Pavement Concrete Core Drilling Machine
- Application：Not Only Coring But Also Cutting and Grinding Core
- Max. Drilling Diameter：Dia 150mm
- Max. Drilling Depth：400mm
- Motor Power：2kw
- Motor Voltage：AC220V
- Transport Package：Wooden Case
- Specification：0.2CBM
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STHZ-15B Loading Method No Display Digital Control Manual Control Weight 90kgs Power Source AC220V Oil Cylinder Position No Product Name Sthz-15b Pavement Concrete Core Drilling Machine Application Not Only Coring But Also Cutting and Grinding Core Max. Drilling Diameter Dia 150mm Max. Drilling Depth 400mm Motor Power 2kw Motor Voltage AC220V Transport Package Wooden Case Specification 0.2CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description

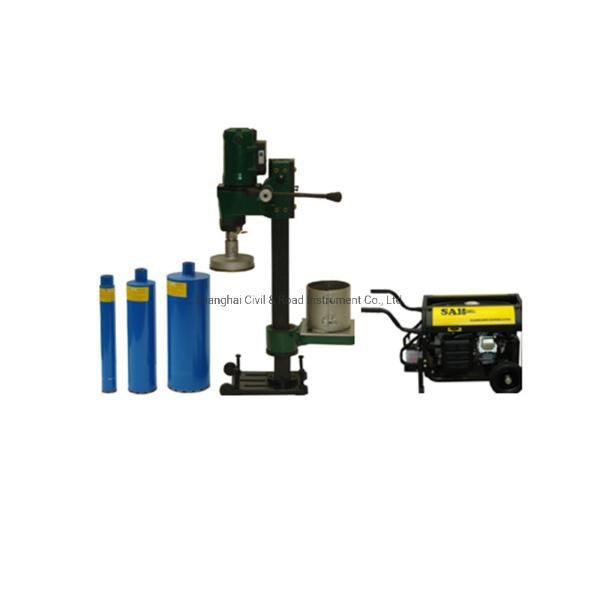

STHZ-15B Pavement Concrete Core Drilling Machine
Application: it is multifunctional in performing not only coring but also cutting and grinding cores.Parameters:
| Max. drilling diameter | Φ150mm |
| Max. drilling depth | 400mm |
| Motor power | 2kW |
| Motor voltage | AC220V |
| Feature | Cutting and grinding in lateral direction,Manual feeding,Diamond drilling head and blade |
