Exfo Yokogawa Aq1210 OTDR Machine Pon OTDR Tester with Touch Screen
Hangzhou DAYTAI Network Technologies Co., Ltd.- Connectors：Sc,FC
- Test Mode：Other
- Usage：Network Cable Tester
- Cable Type：Other
- Power：Electricity
- Certification：CE, FCC, RoHS, ISO
Base Info
- Model NO.：Yokogawa AQ1210 OTDR
- Customized：Customized
- Trademark：DAYTAI
- Origin：Japan
- Production Capacity：1000,Year
Description
Basic Info.
Model NO. Yokogawa AQ1210 OTDR Customized Customized Trademark DAYTAI Origin Japan Production Capacity 1000/YearProduct Description

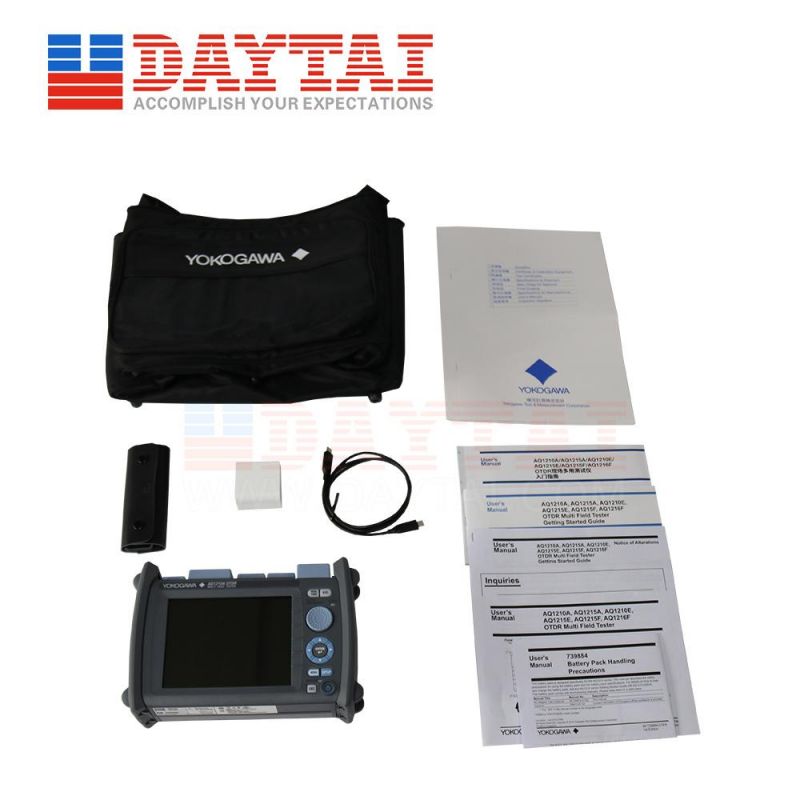

Exfo Yokogawa Aq1210 OTDR machine Pon OTDR Tester with Touch ScreenDescription

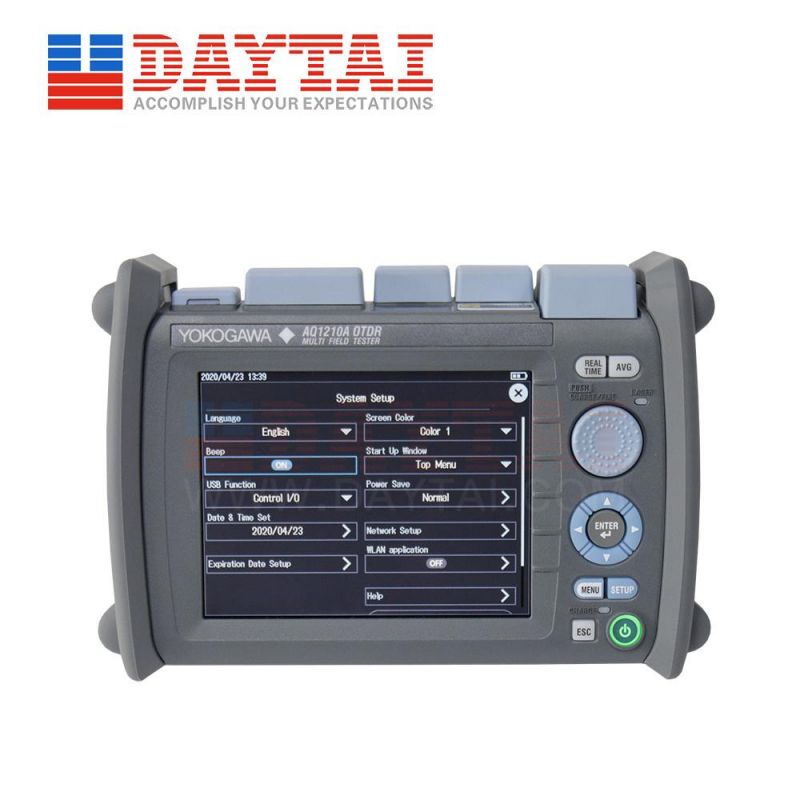

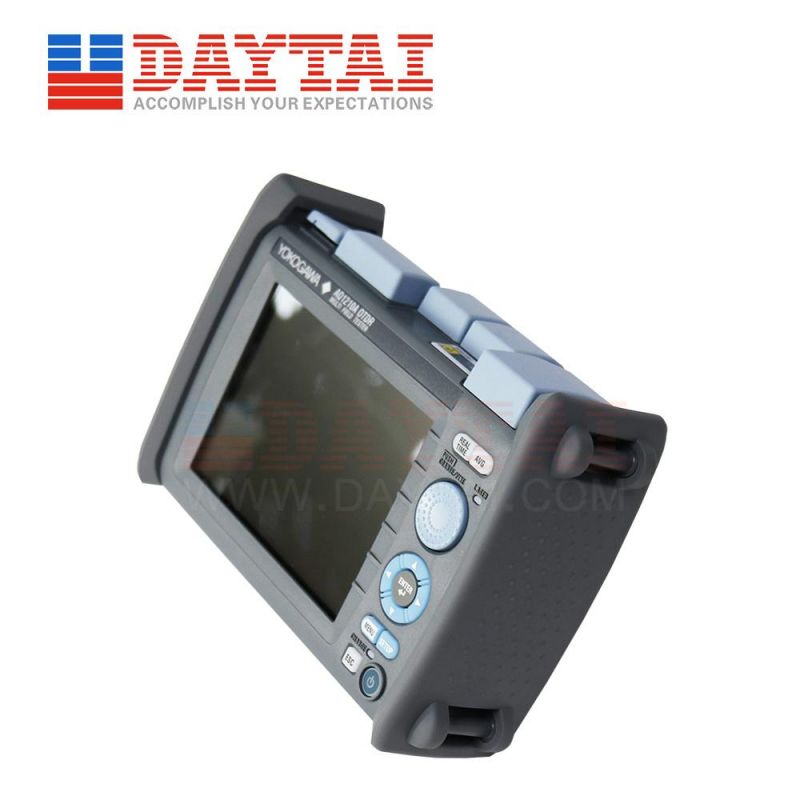

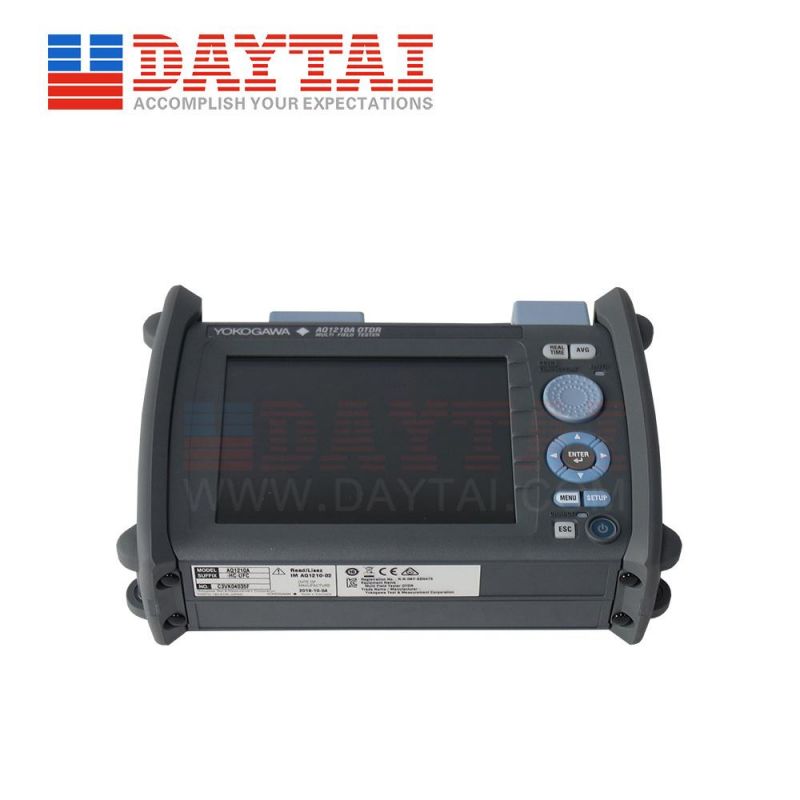

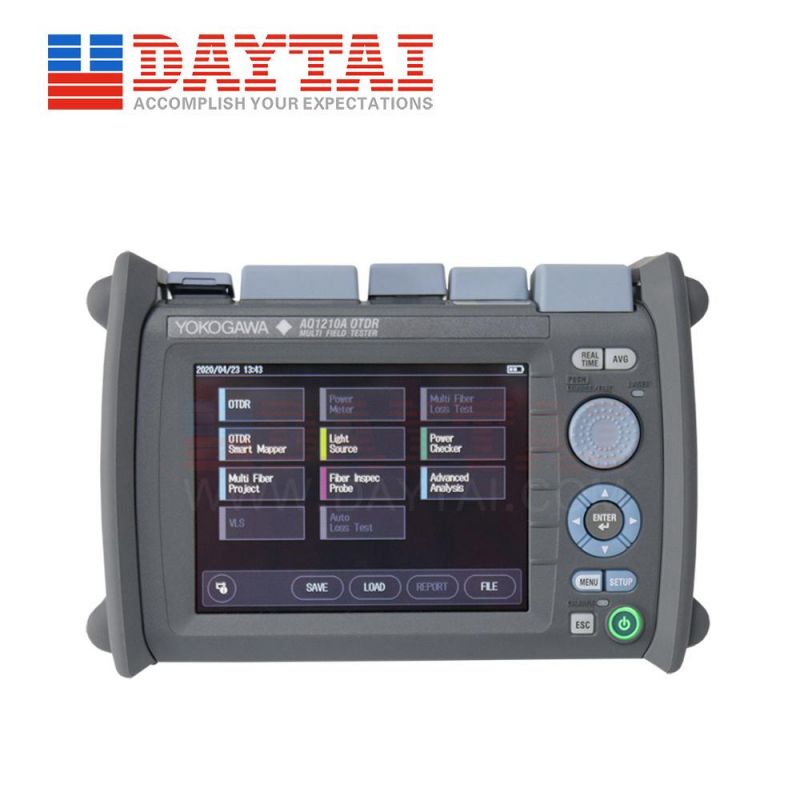

Yokogawa AQ1210 OTDR,The AQ1210E is equipped with a 5.7-inch capacitive touch screen that offers excellent operability. It also comes with hard keys and a rotary dial that makes it easy to mark and shift OTDR waveform observation points.

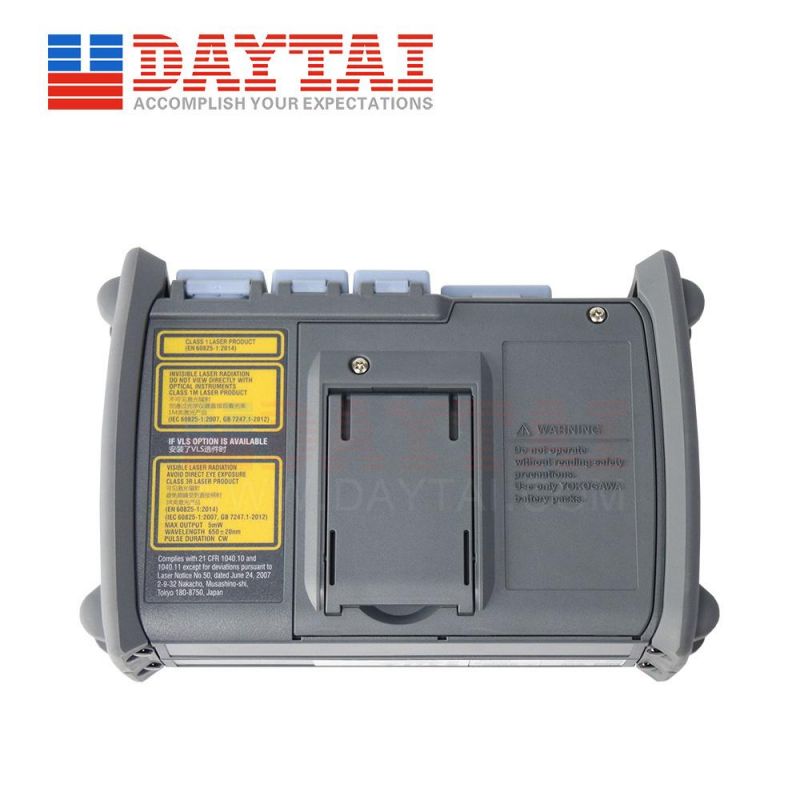

The AQ1210E has a large-capacity lithium-ion battery that delivers up to 10 hours of run time, enabling engineers to work a whole workday in locations where AC power sources are not readily available.
The AQ1210E otdr can automatically characterize the fiber in passive optical networks(PON) that use high-port count optical splitters. A built-in smart mapper enables the operator to rapidly characterize fiber an generate easy-to-read reports with icons clearly highlighting events. A Wi-Fi or Ethernet dongle can be plugged into the USB port to enable remote file transfer and control.
Product Specification
| Wavelength (nm) | 1310 ±25/1550 ±25/1625 ±10 |
| Dynamic range (dB) | 37/35/35 |
| Number of optical ports | 1 |
| Distance range (km) | 0.1 to 256 |
| Pulse width (ns) | 5 to 20000 |
| Event dead zone (m) | 0.75 |
| Attenuation dead zone (m) | 4 |
| PON dead zone (m) | 35 |
| Number of sampling points | 256.000 |
| Display | 5.7-inch color TFT LCD |
