• Model NO.：GD-265H-1
• Single/Double Glass Tank：Double
• Sample Quantity：4
• Timing Function：Yes
• Auto-Calculate and Print：Yes
• Size：800*530*610mm
• Transport Package：Wooden Case for Gd-265h-1
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

Product nameGD-265H-1 Fully Automatic Kinematic Viscometer ASTM D445 with Capillary washing and drying functionViscometer tubeUbbelohde viscometer (Dilution type); as per GB/T1632-93Measurement precisionAs per GB/T265, GB/T1632-93Temperature rangeAmbient to 100.0ºCTemperature control accuracy±0.1ºCTiming accuracy±0.1 sTiming range0.0s~ 999.9 sPower supplyAC 220V±10%, 50 HzMaximum power consumption2000 WAmbient temperature:0ºC~ 40ºCRelative humidity20 ~ 90% at 40 ºCBarometric pressure96 kPa ~ 103 kPaDimension800*530*610mm(circulating bath and vacuum suction apparatus are not included )


Note: The instrument is equipped with four sets of photoelectric Ubbelohde viscometer tube assemblies in standard packing list. The inner diameters for each is 0.8mm,1.0mm,1.2mm and 1.5mm. If the user need other kinds of viscometer, pls inform us for customizing.



Other models:

Model

GD-265B

GD-265C

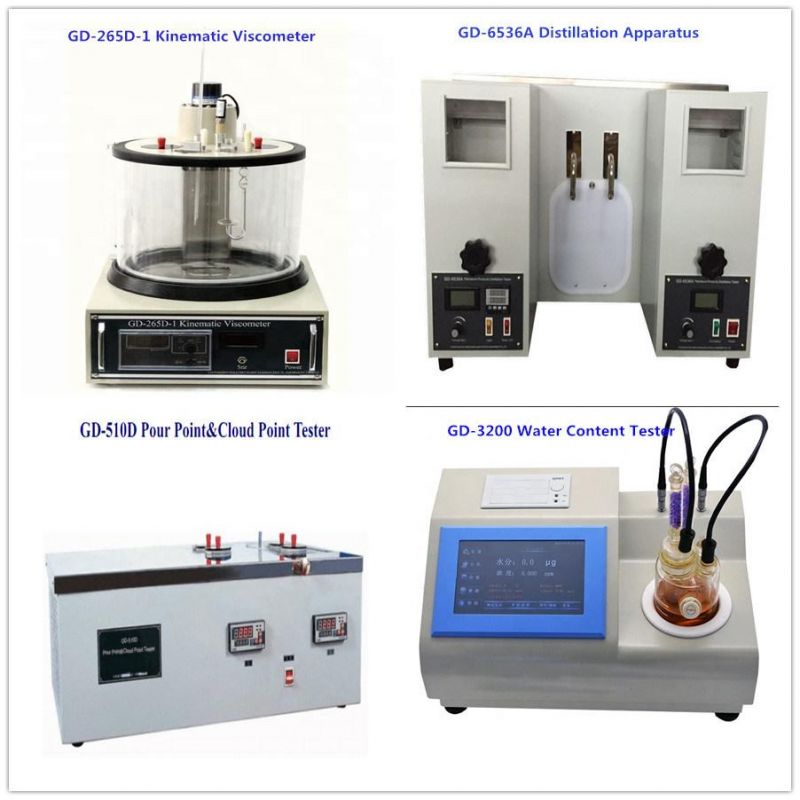

GD-265D-1

GD-265H

GD-265H-1

Range

ambient~ 100ºC

ambient~ 100ºC

ambient~ 100ºC

ambient~ 100ºC

ambient~ 100ºC

Temp. Control precision

±0.1ºC

±0.1ºC

±0.01ºC

±0.01ºC

±0.1ºC

Temp. control method

continuous

continuous

continuous

continuous

continuous

Single/ Double glass tank

S

D

D

D

S

Samples quantity

2

4

4

4

2

Timing function

N

N

Y

Y

Y

Automatic calculate

 and print

N

N

N

Y

Y
