• Model NO.：MP-2B
• Display：Digital
• Control：Electric
• Weight：0-100Kg
• Power Source：AC220V
• Grinding/Polishi Disc Diameter：200mm
• Grinding Disc Rotating Speed：50-1000rpm(Stepless Speed)
• Motor：Yss6324 250W
• Dimension：400*730*310mm
• Operating Voltage：AC 220V,50Hz
• Warranty：12 Months
• Transport Package：Standard Exporting Plywood Case
• Specification：400*730*310mm
• Trademark：OBT
• Origin：China
• HS Code：9024109000
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. MP-2B Display Digital Control Electric Weight 0-100Kg Power Source AC220V Grinding/Polishi Disc Diameter 200mm Grinding Disc Rotating Speed 50-1000rpm(Stepless Speed) Motor Yss6324 250W Dimension 400*730*310mm Operating Voltage AC 220V,50Hz Warranty 12 Months Transport Package Standard Exporting Plywood Case Specification 400*730*310mm Trademark OBT Origin China HS Code 9024109000 Production Capacity 100 PCS/Month

Product Description

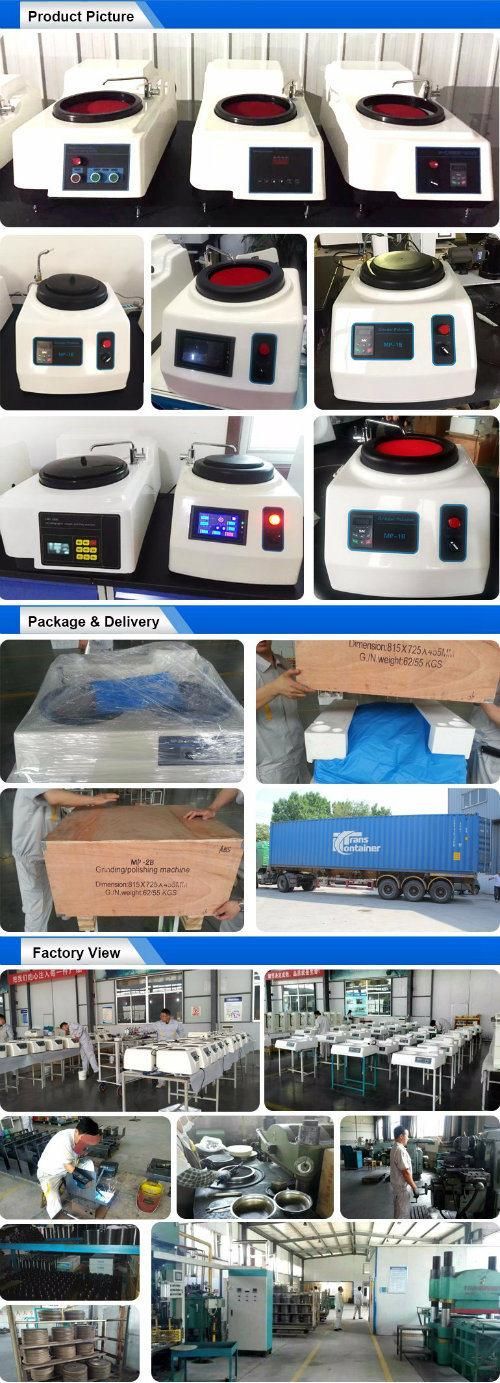

MP-2B Double Discs Polishing Machine

1.Application and Feature of Grinding-Polishing Machine
The grinding-polishing machine is a double-disc desktop, operated by two people simultaneously, applicable to pre-grinding, grinding and polishing of metallographic sample. The machine regulates its speed by a frequency changer, with a speed of 50-1000rpm, thus widening its application. The machine is an indispensable equipment in making the metallographic sample. The machine has a cooling device to cool the sample during pre-grinding, thus preventing the damage of the metallographic structure caused by overheat of the sample. The machine, easy to use, safe and reliable, is an ideal preparation equipment for the labs of plants, research institutes and universities and colleges.
2. Main Specifications:

Model	MP-2B
Grinding Disc Diameter	230mm
Polishing Disc Diameter	200mm
Grinding Disc Rotating Speed	50-1000rpm(stepless speed)
Motor	550 W
Dimension	700x600x278mm
Weight	50kg
Operating voltage	AC 220V,50Hz
