• Model NO.：MP-1B
• Display：Digital
• Control：Electric
• Weight：0-100Kg
• Power Source：AC220V
• Grinding/Polishi Disc Diameter：200mm
• Grinding Disc Rotating Speed：50-1000rpm(Stepless Speed)
• Motor：Yss6324 250W
• Dimension：400*730*310mm
• Operating Voltage：AC 220V,50Hz
• Warranty：12 Months
• Transport Package：Standard Exporting Plywood Case
• Specification：400*730*310mm
• Trademark：OBT
• Origin：China
• HS Code：9024109000
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. MP-1B Display Digital Control Electric Weight 0-100Kg Power Source AC220V Grinding/Polishi Disc Diameter 200mm Grinding Disc Rotating Speed 50-1000rpm(Stepless Speed) Motor Yss6324 250W Dimension 400*730*310mm Operating Voltage AC 220V,50Hz Warranty 12 Months Transport Package Standard Exporting Plywood Case Specification 400*730*310mm Trademark OBT Origin China HS Code 9024109000 Production Capacity 100 PCS/Month

Product Description

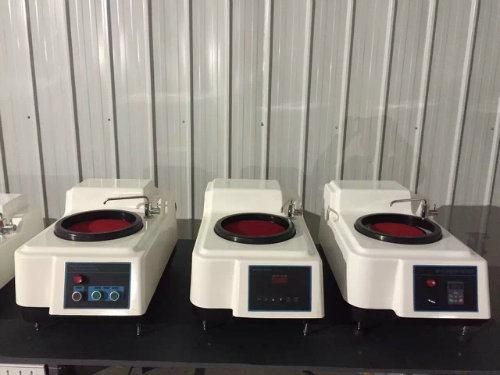

MP-1B Metallographic Specimen Grinding & Polishing Machine

1. Application and Feature:
MP-1B Metallographic Specimen Grinding & Polishing Machine is equipped with single disc and features stepless speed changing grinding and polishing.
The rotating speed of grinding and polishing disc is adjustable from 50 to 1000 rpm.
It can realize the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. This machine features easy operation and economical applying.
It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

2.Main Specifications:

Model	MP-1B
Grinding/Polishing Disc Diameter	200mm
Grinding Disc Rotating Speed	50-1000 rpm (stepless speed)
Motor	YSS6324  250 W
Dimension	400×730×310 mm
Weight	13 Kg
Operating Voltage	AC 220V,50Hz
