Microcomputer Controller Electronic Multifunction Tester
Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd.- Type:Strength Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
Base Info
- Model NO.:WDL-50-5000N
- Control:Computer Control
- Weight:100-500Kg
- Power Source:AC380V
- Oil Cylinder Position:Under
- Mobility:Desktop
- Rated Voltage:AC220V,50Hz;AC110V,60Hz
- Application:Testing
- Support Language:Chinese, English, German, Portuguese, Turkish, Cze
- Customized:Non-Customized
- Transport Package:in Bulk or According to Your Needs
- Specification:850*700*2350
- Trademark:Guangyue,OEM
- Origin:China
- Production Capacity:50 Sets,Month
Description
Basic Info.
Model NO. WDL-50-5000N Control Computer Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Under Mobility Desktop Rated Voltage AC220V/50Hz;AC110V/60Hz Application Testing Support Language Chinese, English, German, Portuguese, Turkish, Cze Customized Non-Customized Transport Package in Bulk or According to Your Needs Specification 850*700*2350 Trademark Guangyue/OEM Origin China Production Capacity 50 Sets/MonthProduct Description

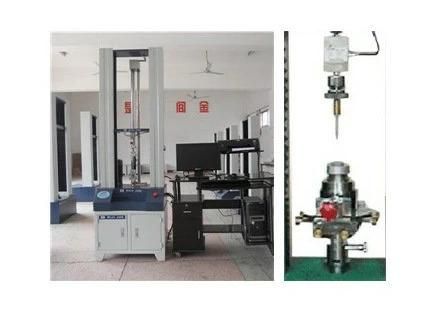

Brife DescriptionWDL computer-controlled multifunctional electronic pull test machine is widely used in the pull test,compression test ,bending test ,tearing test,peeling test and adhesive test of metallic and non-metallic materials like rubber,plastics,leather,electrical wries and calbes ,fabrics, fibers ,paper,films,cord thresds ,canvas,non-woven fabrics ,steel wries etc. It involves advanced technologies and boasts high-level automation.
Technical parameter
Measuring/N | Accuracy of differentiation /N | System precision /% |
0-100 ,300,500 | 0.001 | <0.5 |
0-1000 | 0.01 | <0.5 |
0-2500 | 0.1 | 0.5 |
0-5000 | 0.1 | 0.5 |
1 Tension speed:2~500mm/min
2 Max.journey of camping device:900mm
3 Measuring range of automatic tracing for elongation:870mm
4Tolerance of automatic tracing of elongation :≤±1%of display
5 Votage:~200V±10%50HZ
6 Dimensions:Column Style 700X600X2270
7 Weight:250KG
Characteristics
Specifications:
Rockwell Scales | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRP,HRR,HRS,HRV |
Preliminary Test Force | 10Kgf(98.07N) Permitted Error:±2.0% |
Test Force | 60Kgf(588.4N),100Kgf(980.7N),150Kgf(1471N) Permitted Error:±1.0% |
Dwell Time | Adjustable 1-60s |
Hardness Indication | 5.2" Touch Screen, Resolution:640x480 |
Resolution | 0.1HR |
Loading Control | Auto Loading/Dwell/Unloading |
Hardness Conversion | HRC,HV,HBS,HBW,HK,HRA,HRD,HR15N,HR30N, HR45N,HS,HRF,HR15T,HR30T,HR45T,HRB |
Conversion Standards | ASTM,DIN |
Language Option | Chinese, English, German, Portuguese, Turkish, Czech, Korean |
Correction Range | -3.0HR to +3.0HR, Step 0.1HR |
Data Memory | 2000 Single Measuring Result, Curve Analysis, Results Reviewing And Analysis |
Data Output | Optional Blue Tooth Mini Printer |
Max. Height Of Specimen | 175mm |
Instrument Throat | 165mm |
Power supply | AC220V/50Hz;AC110V/60Hz |
Dimension(LxWxH) | 520 x 215 x 700mm |
Packing Dimension | 630 x 440 x 960mm |
Gross/Net Weight | 120Kg/90Kg |
Execution Standard | GB/T230.2, JJS Z2245, EN-ISO6508, ASTME-18 |
Standard accessory
Name | Qty | Name | Qty |
Instrument Main Body | 1pc | Ø1.588mm Ball Indenter | 1pc |
Hardness Block (57-70) HRC | 1pc | Ø1.588mm Steel Ball | 1pc |
Hardness Block (20-33) HRC | 1pc | Cone Diamond Indenter | 1pc |
Hardness Block (85-100) HRB | 1pc | Weight A | 1pc |
Ø 150mm Flat Anvil | 1pc | Weight B | 1pc |
Ø 60mm Flat Anvil | 1pc | Weight C | 1pc |
Ø 40mm V-shape Anvil | 1pc | Power Cable | 1pc |
Accessories Box | 1pc | Instrument Manual | 1pc |

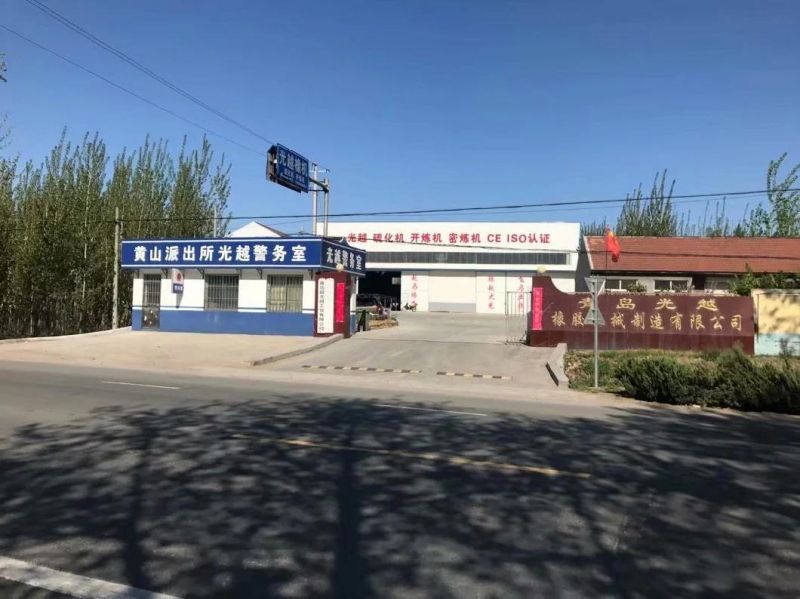

We are Qingdao Guangyue Rubber Machinery Manufacturing CO.,LTD.Our main products are: various types of rubber mixer, rubber crusher, plate vulcanizer, rubber cutter, rubber extruder, rubber refiner and other kinds of rubber machineries. The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .
If you are interested in our products mentioned above, kindly let us know by return e-mail.
Also we can make non-standard rubber machinery as customer's requirements.
We are looking forward to receiving your inquiry sincerely, thanks!
