Test Instrument

Home > Product > Test Machine

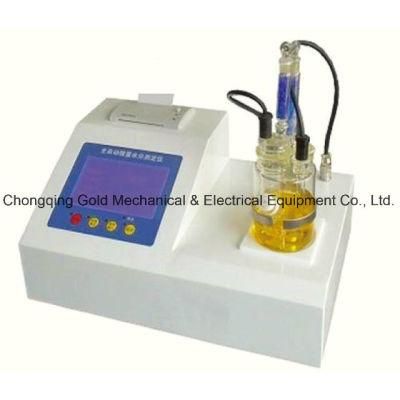

Gd-2100 ASTM D1744 and ASTM D6307 Coulometric Method Karl Fischer Titrator for Petroleum Products

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Product Name：Coulometric Method Karl Fischer Titrator (Gd-2100)
  • Auto/Manual：Automatic
  • Standard：GB,T11133, ASTM D1744, ASTM D6304
  • Test Method：Coulometric Karl Fischer Titration Method
  • Test Sample：Liquid Petroleum Products
  • Measurement Range：0.1ug~100mg

Base Info

  • Model NO.：GD-2100
  • Resolution：0.1ug
  • Single/Double Unit：Single
  • Sample Quantity：1
  • Size：390*260*170mm
  • Transport Package：Wooden Case for Gd-2100 Coulometric Method Karl Fi
  • Trademark：Gold
  • Origin：China
  • Production Capacity：100 Piece,Pieces Per Month

Description

1Intelligent Determination2Powerful new-generation processor; dual-CPU design.3Dual power channels separate electrolytic electrode and measuring electrode; automatically removing all
kinds of interference; greatly improving the accuracy of test results.4Measuring electrode data directly A / D sample converting; data true value avoids errors caused by analog
circuit; results more accurate.5Easy Operation6Touch-screen operation; only pressing once then the test will be done automatically and the reported values will automatically display.7Background Compensation8Large current background compensation. Standby time can be shortened to be less than 10 minutes.9Rotating Speed Control10Software adjusting stirring speed; selection between 0 to 36.11End Point Indication12Character tips and buzzer13Perfect Calculating Function14Automatically display, calculate, print ug / ppm / percentages / mg/L / sample name / test date15Automatic Date Data Storage16Year, month, day, hour, minute, second; automatic storage when power off .



Specifications:

Product nameGD-2100 ASTM D1744 and ASTM D6307 Coulometric Method Karl Fischer TitratorDisplayLCDMeasuring range3ug to 200 mg water; Water content range: 1ppm-100%Resolution0.01 ug waterAccuracy10μg-1mg water, ± 0.2%; >1mg water, < ± 0.3% (excluding injection error)Electrolysis speedmax 2.4 mg/minElectrolytic current0~430 mAAmbient temperature5 ~ 35 ºCHumidity≤85%Power supplyAC 220V ± 10%Dimension320*240*180mmWeightabout 6kg



Product Packing:
Gd-2100 ASTM D1744 and ASTM D6307 Coulometric Method Karl Fischer Titrator for Petroleum Products

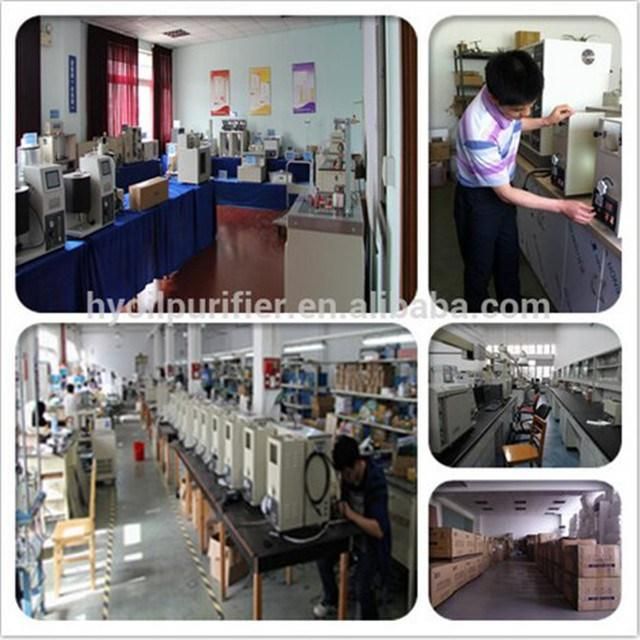

Company  Information:



Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .

Gd-2100 ASTM D1744 and ASTM D6307 Coulometric Method Karl Fischer Titrator for Petroleum Products

Contact Information:

If you have interest, please feel free to contact with me:

Chongqing Gold Mechanical&Electrical Equipment Co., Ltd

website: chinainstrument.en.made-in-china.com
