• Model NO.：HJ-69
• Minimum Display Load：0.01g
• Single Bit：GF, Kgf, Lbf, N (Can Be Switched at Will)
• Maximum Test Stroke：200mm
• Minimum Display Stroke：0.01mm
• Testing Speed：0-300mm,Min
• Machine Size：W420*D650*H700mm
• Machine Weight：50kg
• Power Supply：220V
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-69 Minimum Display Load 0.01g Single Bit GF, Kgf, Lbf, N (Can Be Switched at Will) Maximum Test Stroke 200mm Minimum Display Stroke 0.01mm Testing Speed 0-300mm/Min Machine Size W420*D650*H700mm Machine Weight 50kg Power Supply 220V Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

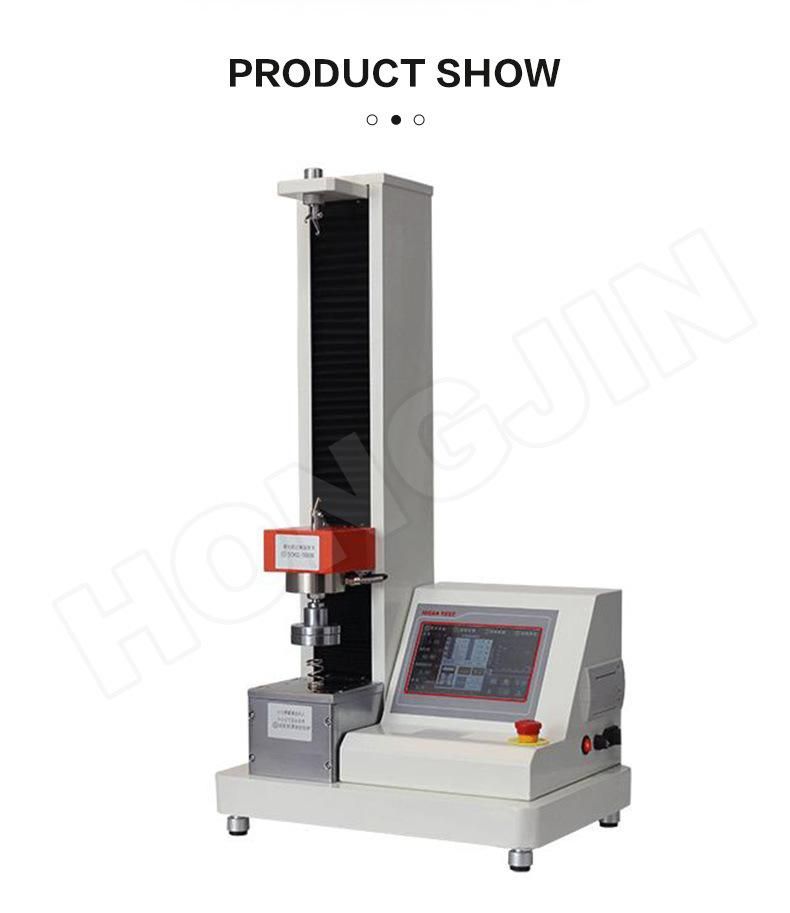

Product Description

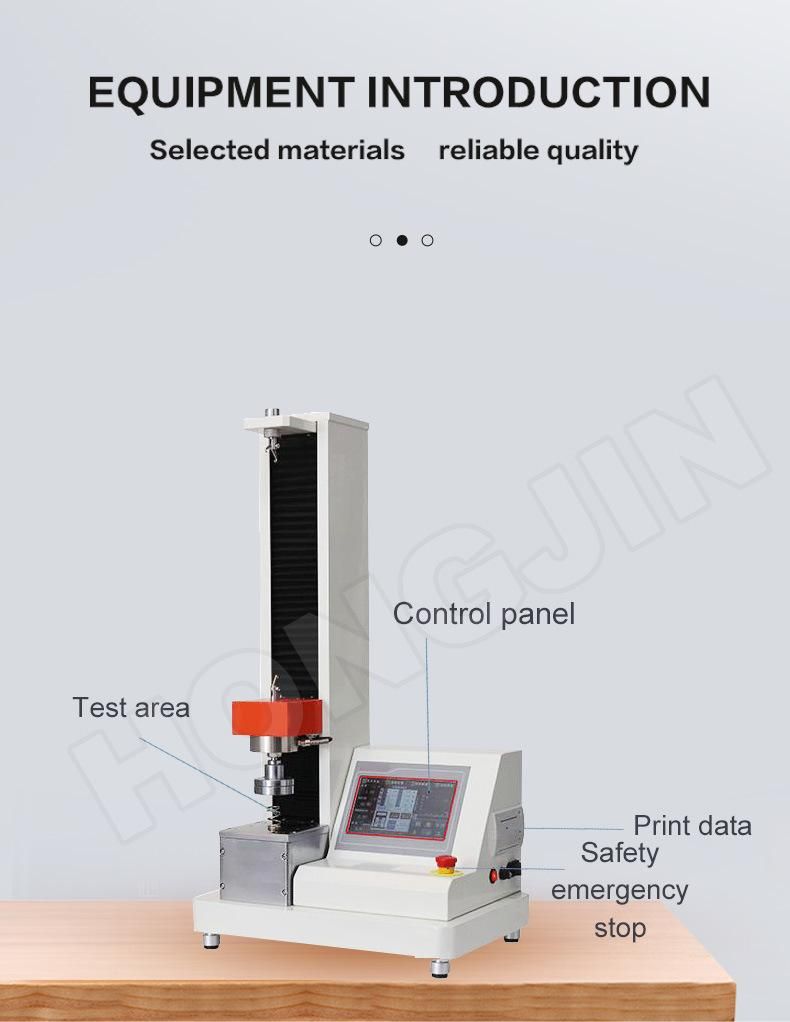

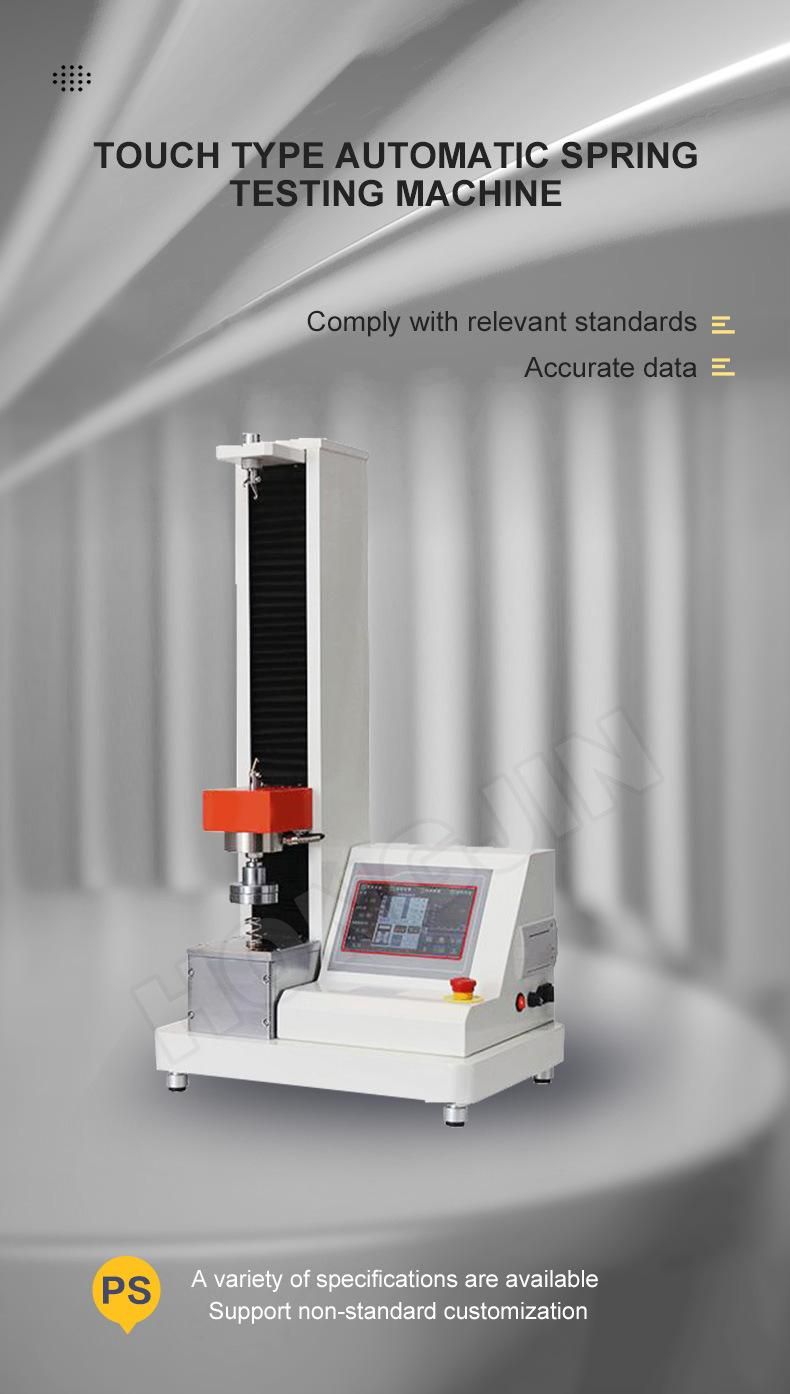

Features
1. It can automatically measure the tension, pressure and elastic coefficient of the spring, and can measure four points at the same time;
2. Using touch screen operating system, the operation is simple and convenient;
3. The power division value can be freely set up to three decimal places of 0.001N. The displacement can reach 0.01MM;
4. With automatic and manual zero capture function. High-efficiency zero capture can be achieved, and the height can be automatically remembered when power is turned off;
5. The pressure test can realize the double test of the height method and the deformation method (pressure method: can realize the test spring
The force corresponding to how long the compression remains. Deformation method: How much downward compression can be achieved after hitting the spring. two function can measure 4 points at the same time).
6. Preload and rigidity compensation correction can ensure the accuracy of the measured value;
7. Load sensor overload protection and emergency stop function;
8, with a micro-printer.

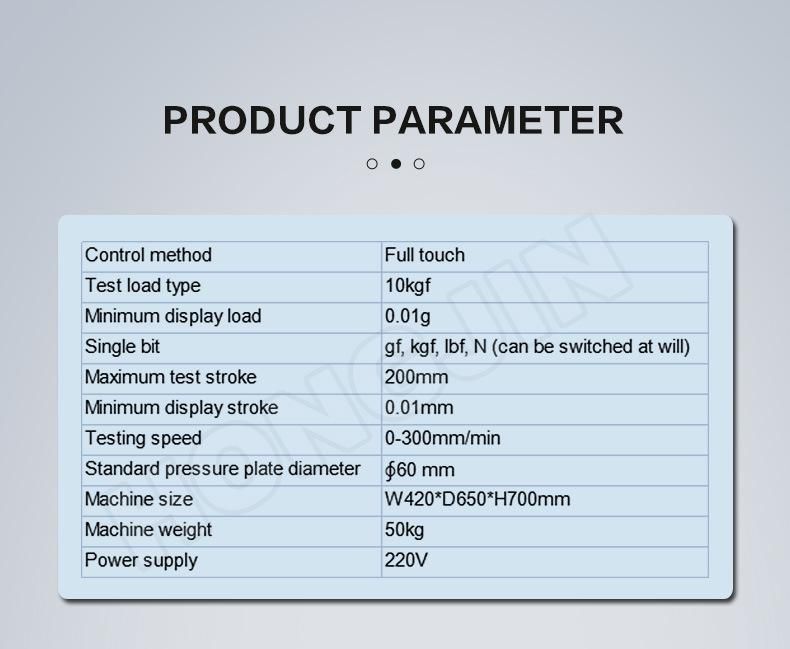

Control method	Full touch
Test load type	10kgf
Minimum display load	0.01g
Single bit	gf, kgf, lbf, N (can be switched at will)
Maximum test stroke	200mm
Minimum display stroke	0.01mm
Testing speed	0-300mm/min
Standard pressure plate diameter	∮60 mm
Machine size	W420*D650*H700mm
Machine weight	50kg
Power supply	220V
