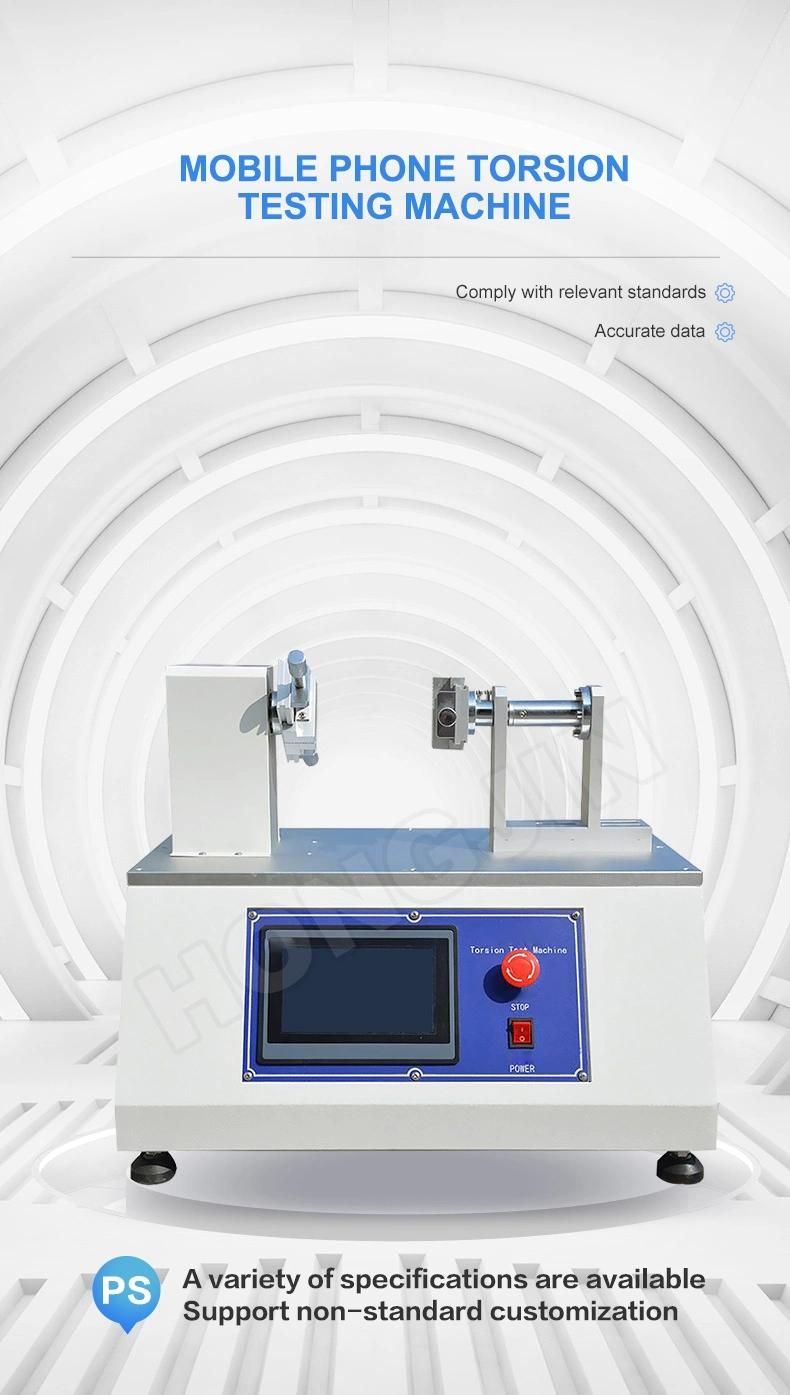

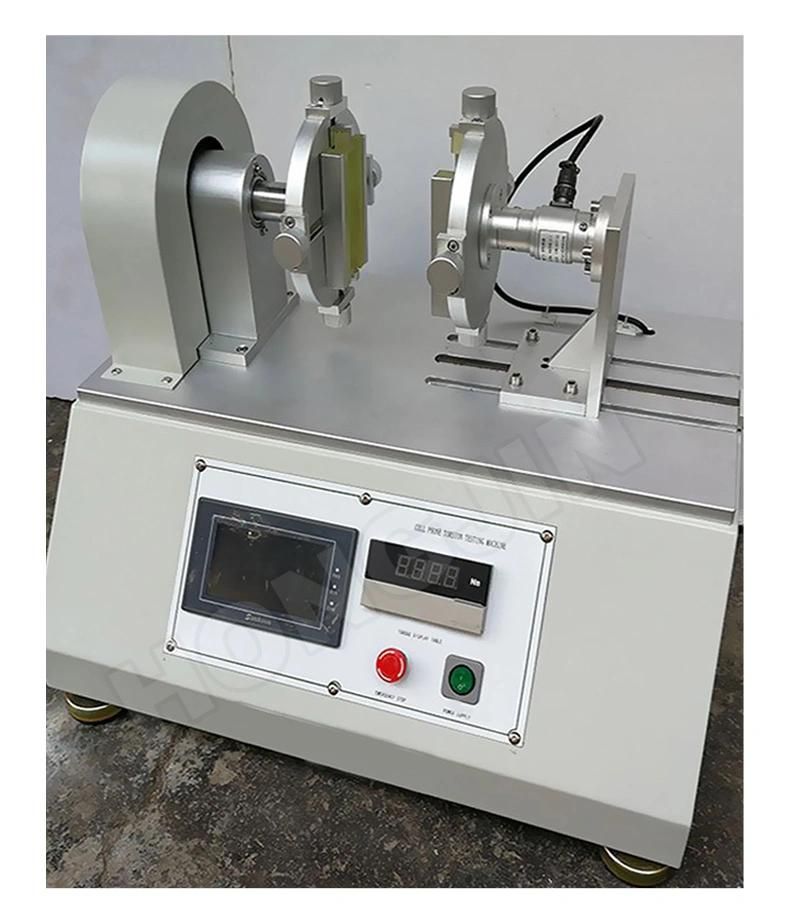

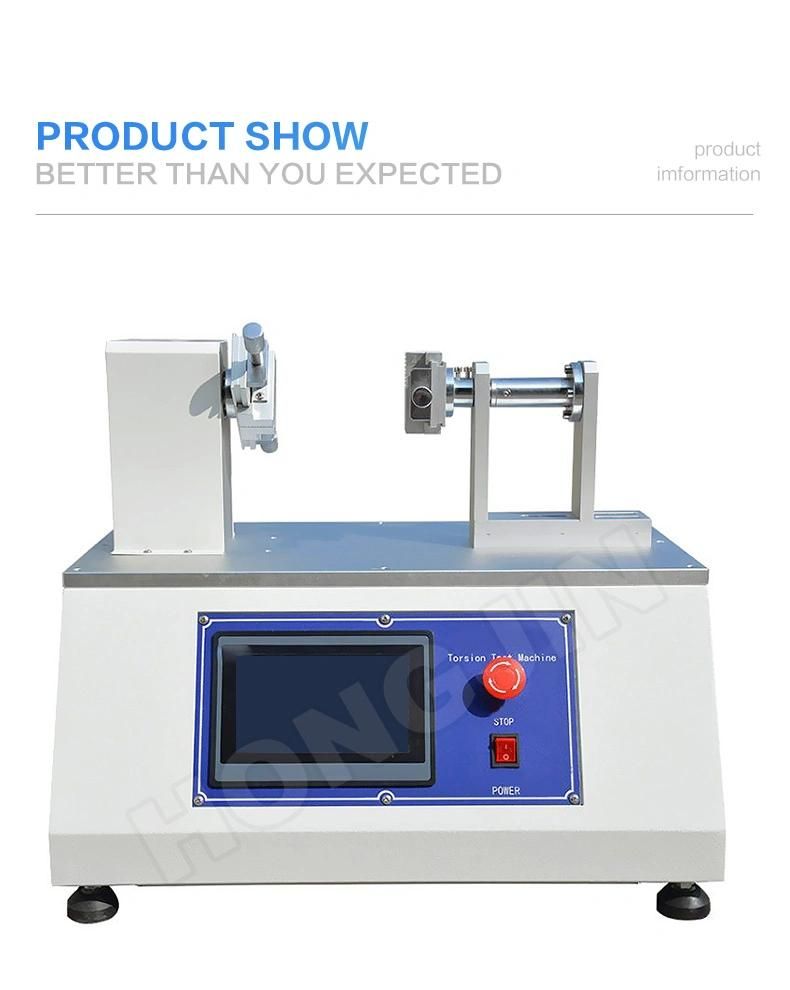

Tablet PC Twist Bending Tester, Mobile Phones Torsion Testing Machine
Dongguan Hongjin Test Instrument Co., Ltd.- After-sales Service：Lifetime Maintenance
- Warranty：1 Year
- Type：Mobile Phone Torsion Test Equipment
- Maxcapacity：<1000KN
- Accuracy Grade：1
- Load Way：Electronic Load
Base Info
- Model NO.：HJ-69
- Weight：0-100Kg
- Power Source：AC220V
- Control Method：Touch Screen
- Test Station：1
- Number of Rotations：15-30 Times
- Torque Setting Range：0-10nm
- AC Servo Motor：220V,750W
- Overall Machine Size：380*560*580mm
- Power Supply：AC220,50Hz
- Transport Package：Fumigation-Free Standard Export Wooden Box
- Trademark：Hongjin
- Origin：China
- Production Capacity：1000 Sets, Month
Description
Basic Info.
Model NO. HJ-69 Weight 0-100Kg Power Source AC220V Control Method Touch Screen Test Station 1 Number of Rotations 15-30 Times Torque Setting Range 0-10nm AC Servo Motor 220V/750W Overall Machine Size 380*560*580mm Power Supply AC220/50Hz Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ MonthProduct Description

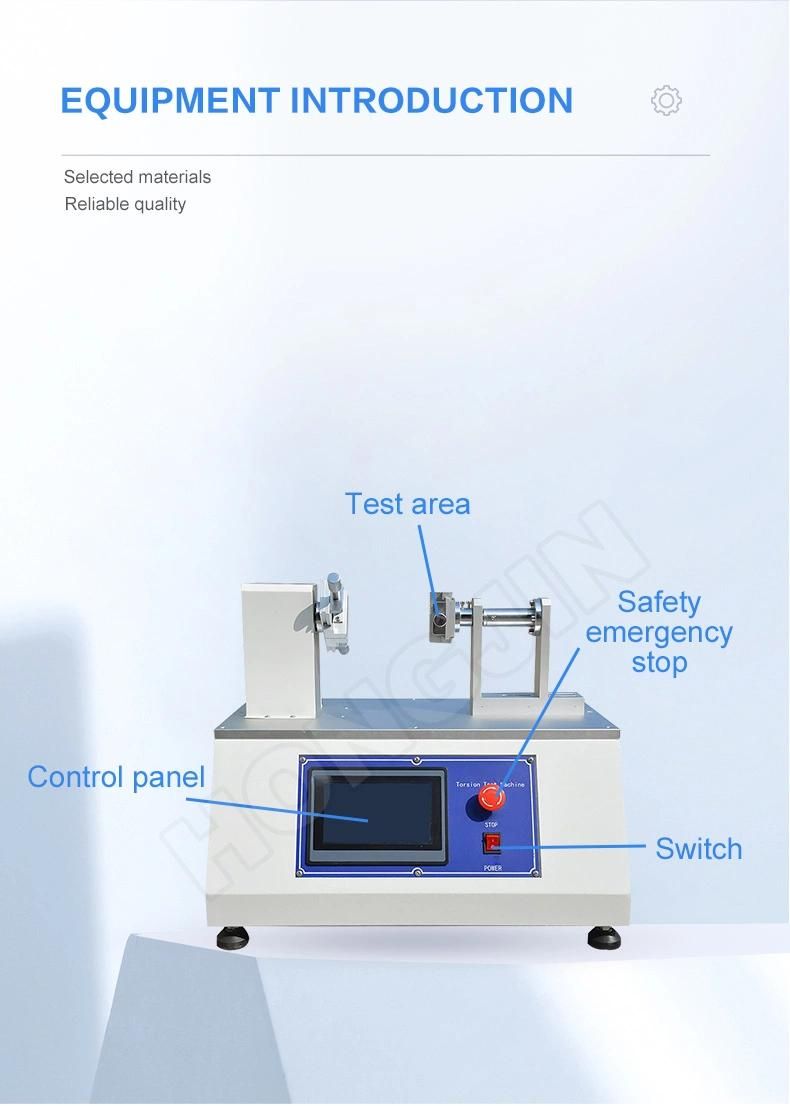

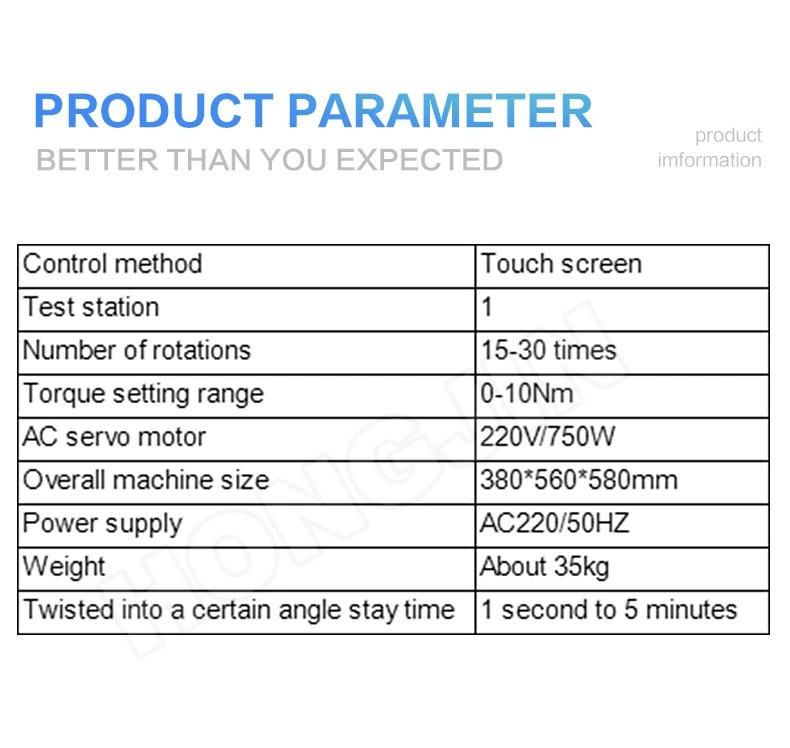

This machine is used to detect the torsion test of mobile phones. It adopts PLC and HMT control system. The torque value can be set to test the number of torsion times. After the life, to see if the function of the mobile phone is normal. The screen is adjusted and displayed on the touch screen, which is easy to operate. Meet the YD/T 1539-2006 standard. The mobile communication handset is not packaged, installed with the matching battery, and fixed on the torsion testing machine without turning on. The two ends are clamped by 15mm, and the maximum torque of not more than 2N.m and the minimum of not less than 0.5Nm are applied to the twisting and twisting clockwise. The counterclockwise twisting is performed in a staggered manner at a frequency of 15-30 times per minute for a total of 500 twists. After the removal, the functional, appearance and assembly inspections should meet the requirements of relevant standards. For handhelds with folding, sliding and rotating structures, The test should be carried out in the closed state.| Control method | Touch screen |
| Test station | 1 |
| Number of rotations | 15-30 times |
| Torque setting range | 0-10Nm |
| AC servo motor | 220V/750W |
| Overall machine size | 380*560*580mm |
| Power supply | AC220/50HZ |
| Weight | About 35kg |
| Twisted into a certain angle stay time | 1 second to 5 minutes |
