Mobile Phone Cover Notebook Shaft Bending Testing Machine

Dongguan Hongjin Test Instrument Co., Ltd.
  • After-sales Service：Lifetime Maintenance
  • Type：Notebook Shaft Life Fatigue Tester
  • Maxcapacity：<1000KN
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Static Load

Base Info

  • Model NO.：HJ-56
  • Display：Digital
  • Control：Manual Control
  • Weight：About 35kg
  • Power Source：AC220V
  • Operation Mode：Touch Screen
  • Number of Stations：4
  • Control Element：PLC
  • Action Execution Component：Stepper Motor
  • Counter：6 Digits (Built-in)
  • Transport Package：Fumigation-Free Standard Export Wooden Box
  • Trademark：Hongjin
  • Origin：China
  • Production Capacity：1000 Sets, Month

Description

Basic Info.

Model NO. HJ-56 Display Digital Control Manual Control Weight About 35kg Power Source AC220V Operation Mode Touch Screen Number of Stations 4 Control Element PLC Action Execution Component Stepper Motor Counter 6 Digits (Built-in) Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

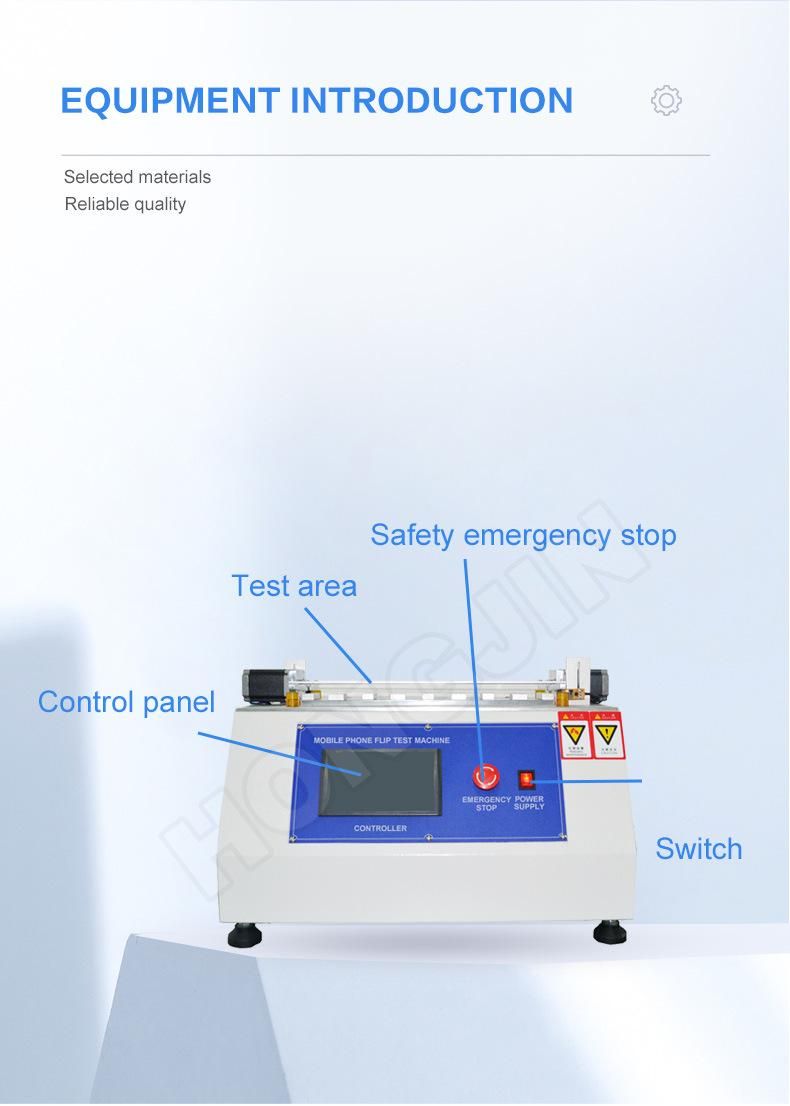

The flip test machine is suitable for the flip-up life test of mobile phones (mobile phones), electronic dictionaries, and other small consumer electronic products and parts. Product features: The four-station mobile phone flip test machine adopts Mitsubishi LCD touch human-machine interface, which is intuitive and generous; the control part adopts Mitsubishi PLC, which is reliable; because it is driven by a stepping motor, the angle is accurate and convenient, and the power supply system is rectified The setting greatly improves the service life and reliability of the circuit part of the machine. Because this machine uses dual motors to drive separately in a single station, it can truly simulate the actions of a mobile phone when it is in use. This machine can realize the life test of the flip cover of four mobile phones at the same time without interfering with each other. It also reflects the user-friendly design style in the program, allowing the operator to learn as soon as possible.

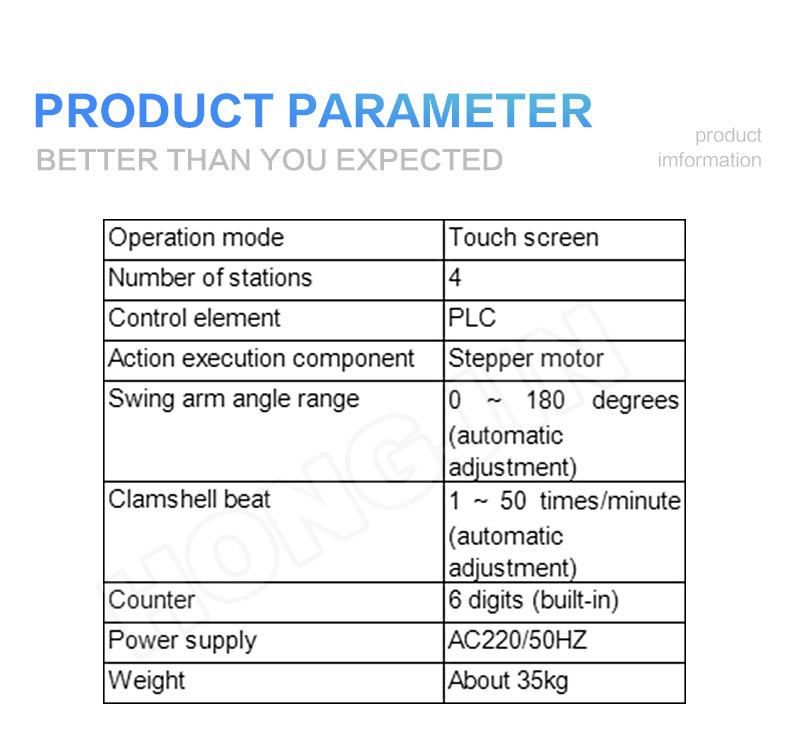

Operation modeTouch screen
Number of stations4
Control elementPLC
Action execution componentStepper motor
Swing arm angle range0~180 degrees (automatic adjustment)
Clamshell beat1~50 times/minute (automatic adjustment)
Counter6 digits (built-in)
Power supplyAC220/50HZ
WeightAbout 35kg
