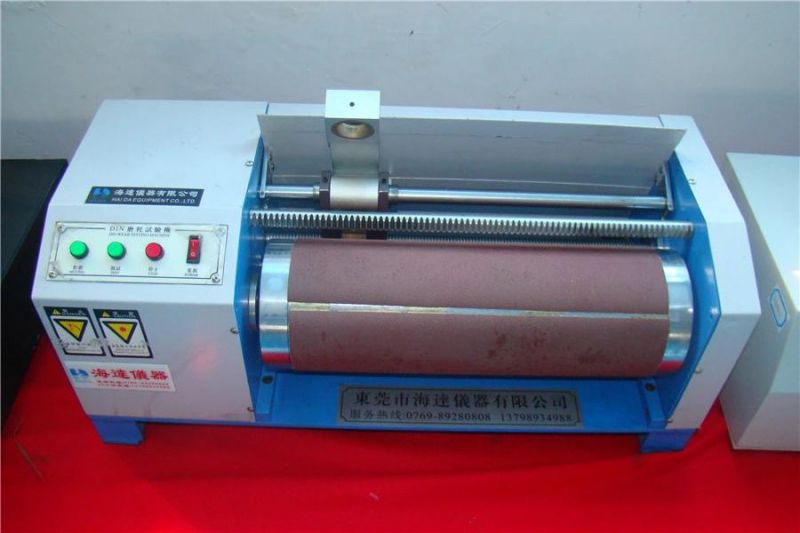

Electronic Rubber DIN Abrasion Testing Machine
Dongguan Haida Equipment Co., Ltd.- Type：Friction Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
Base Info
- Model NO.：HD-P307
- Control：Manual Control
- Weight：0-100Kg
- Power Source：AC220V
- Product Name：DIN Abrasion Testing Machine
- Certificate：ISO9001: 2008
- Delivery Time：15 Days After Receive Deposit
- Specimen Load：10n ± 0.2n
- Fixture Load：2.5n
- Weight Load：2.5n,5n
- Fixture Lateral Displacement：4.2 ± 0.04mm , Wheel Every Lap
- Attrition Rate：0.32m,Sec
- Power：AC220V,2.6A
- Roller Length：460mm
- Transport Package：Strong Wooden Case
- Specification：ISO9001: 2008
- Trademark：Haida
- Origin：China
- HS Code：9024109000
- Production Capacity：150 Sets,Month
Description
Item
Specification
Specimen load
10N ± 0.2N
Specimen size
¢ 16mm, 6 ~ 15mm (D)
Fixture Load
2.5N
Weight load
2.5N,5N
Fixture lateral displacement
4.2 ± 0.04mm / wheel every lap
Wheel diameter
Φ(150 ±0.2)mm
Roller length
460mm
Roller speed
40±1r.p.m
Wear trip
40m (20m) equivalent wheel turns 84 (42)
Attrition rate
0.32m/sec
Inclination
3 ° (test piece vertical support shaft and the roller angle)
Angle of Dimensions
(L×W×H)70×30×30cm
Power
AC220V,2.6A
Weight (about)
about 61kg
After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
