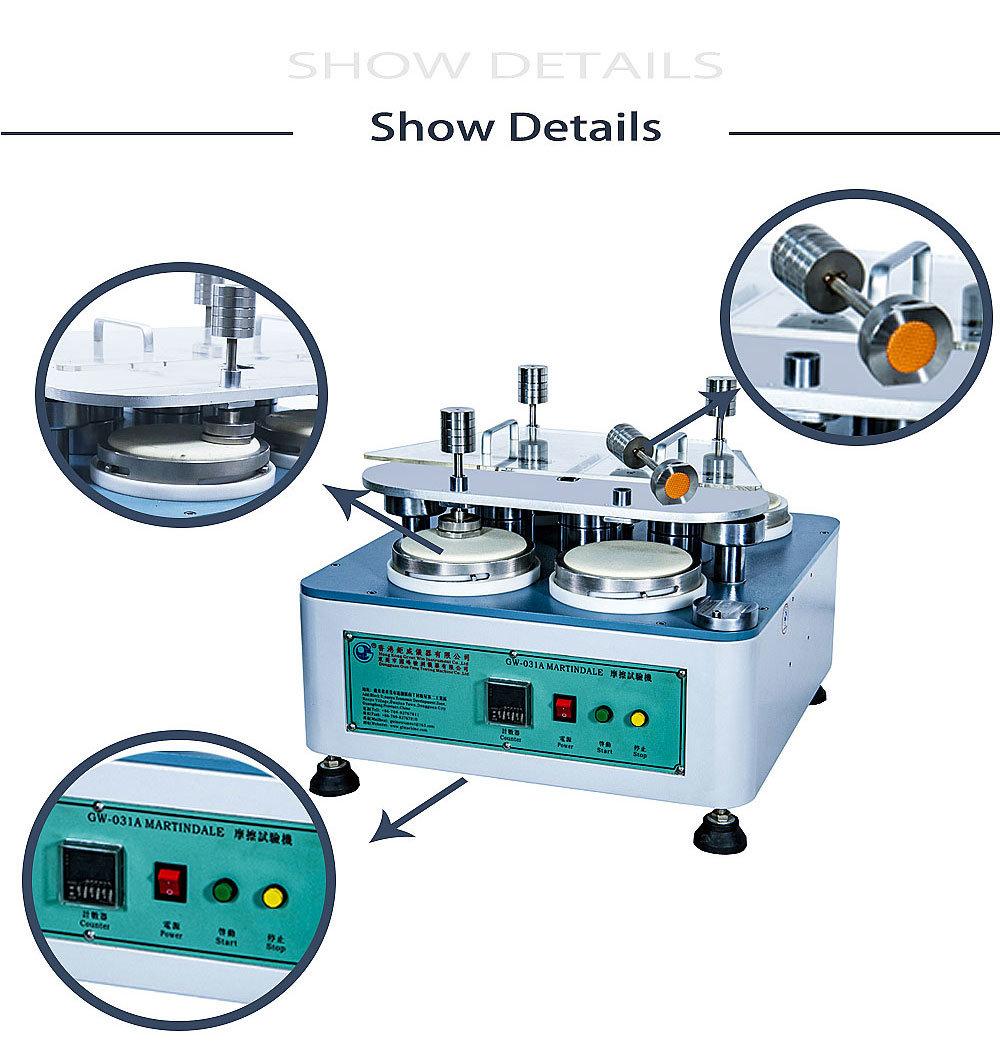

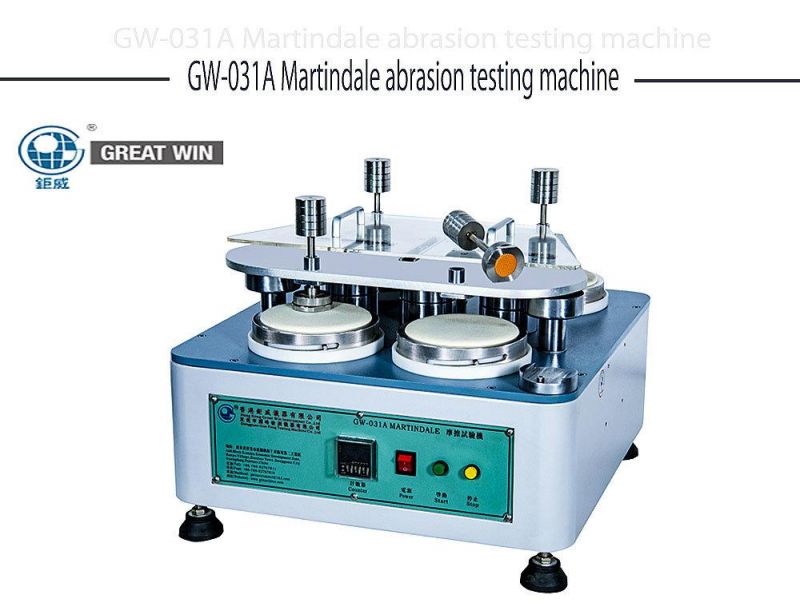

ISO-20334 4 Heads Martindale Fabric Abrasion Resistance Testing Machine (GW-031A)

GREAT WIN INSTRUMENT CO., LTD.
  • Max Diameter of Workpiece：1000mm
  • Mass Scope of Workpiece：<900kg
  • Type：Material Testing Machine
  • Maxcapacity：Leather and Textile Crock Testing Machine
  • Accuracy Grade：1
  • Load Way：Mechanical Load

Base Info

  • Model NO.：GW-031A
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Electric Control
  • Packaging：Wooden Case
  • Export Markets：Global
  • Model No：Gw-31b
  • Sampling：4-8 PCS
  • Loading：595g, 795g
  • Counter：LCD:0-999999
  • Dimension：570*640*340mm
  • Power：AC 220V, 50Hz
  • Transport Package：Standard Export Safety Packing
  • Specification：50kg
  • Trademark：Great Win
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：500 Pieces,Year

Description

Sampling
 4pcs
 Load
 595g,795g
 Counter
 LCD,0-999,999
 Dimension
 570*640*340mmN.W
 78kg
 Power
 AC220V,1.5A


•Standard for:
BS-3424,ASTM-D4966,DIN-53863,SATRATM31,ISO-20334,GB/T20991-2007


•Accessories:
20pcs woolen felt  578g/m²~678g/m² Thickness 1.8mm
1pc standard die mould  size:Ø40mm
1pc pressure plate 2kg
20pcs N600 abrasive paper 14cm*14cm
 ISO-20334 4 Heads Martindale Fabric Abrasion Resistance Testing Machine (GW-031A)
ISO-20334 4 Heads Martindale Fabric Abrasion Resistance Testing Machine (GW-031A)


ISO-20334 4 Heads Martindale Fabric Abrasion Resistance Testing Machine (GW-031A)ISO-20334 4 Heads Martindale Fabric Abrasion Resistance Testing Machine (GW-031A)ISO-20334 4 Heads Martindale Fabric Abrasion Resistance Testing Machine (GW-031A)ISO-20334 4 Heads Martindale Fabric Abrasion Resistance Testing Machine (GW-031A)ISO-20334 4 Heads Martindale Fabric Abrasion Resistance Testing Machine (GW-031A)ISO-20334 4 Heads Martindale Fabric Abrasion Resistance Testing Machine (GW-031A)ISO-20334 4 Heads Martindale Fabric Abrasion Resistance Testing Machine (GW-031A)ISO-20334 4 Heads Martindale Fabric Abrasion Resistance Testing Machine (GW-031A)
What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
