• Model NO.：XL-1000
• Illumination Intensity：Full Spectrum
• Bpt：40~120degree C(+,-3degree C)
• Bst：38~120degree C(+,-3degree C)
• Sunlight Exposure Cycle：0.01~999 Hours 59mins
• Spray Water Flow (L/Min)：1~2.4
• Explore Area (Cm2)：7500
• Transport Package：Wooden Case
• Specification：XL Series
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：90248090
• Production Capacity：100 Sets,Month

Product Parameters

XL - 1000

Internal Dimension WxHxD (mm)

1000x1000x1000

External Dimension WxHxD (mm)

1550x2150x1550

Tube Using Life (H)

1500

Tube Power

1KW/6KW

Illumination  Intensity

340nm

0.35~0.6w/m2

Full spectrum

1200±200w/m2

Lighting Filter Type

Inner filter

Quartz

Outer filter

Quartz

Simulated Test Status

Test samples: Explore under outer space

Cooling System

Water cooled or wind cooled

Temperature Control Range of the Test Cabinet

Black panel temperature : BPT 40~120°C(±3°C)

Black standard temperature :BST 38~120°C(±3°C)

 Humidity Control Range of the Test Cabinet

Humidity when lighting: 20%R.H.~75%R.H. (± 5%R.H.)

Humidity when dark: 60%R.H.~95%R.H. (± 5%R.H.)

Rotating Speed of the Samples Holder (RPM)

1~5 adjustable

Diameter of Sample Shelf(mm)

500±50

Sunlight Exposure Cycle

0.01~999 hours 59mins

Raining Period/ Time

Raining Period:1~240mins,discontinuous-type, adjustable

Raining Time:1~9999mins, adjustable, water spray pressure 70~130Kpa

Spray water flow(L/min)

1~2.4

Explore Area(cm2)

7500

Power

 AC 380 V(±10%),50/60HZ ,

Application:

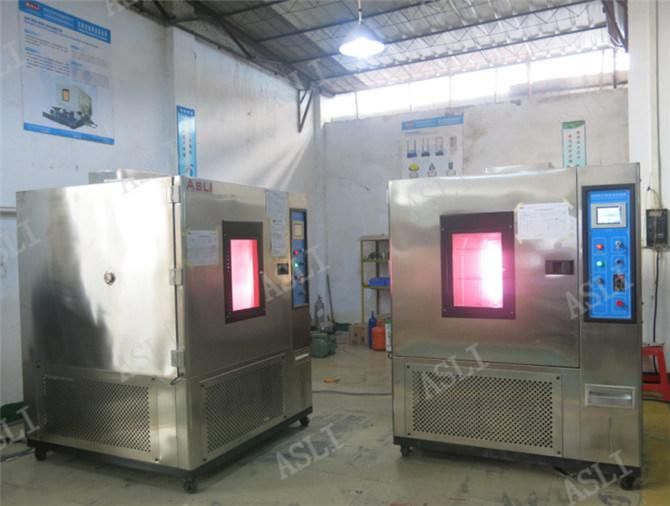

UV + Xenon Accelerated Aging Test Instrument is a comprehensive climate testing machine, it can do climatic aging test, and also can do fading acceleration test under color effect or color changed. The test range including: dying and finishing, printing, leather, plastic, plyglass, painting, textile, printing ink, rubber and also the industry relative color.  Light fastness and fade grade can be known in short time. Those materials exposed at simulated sunlight to evaluated the material's light fastness performance. To simulate and strengthen the test according to light energy, temperature, rain fall or condensation, humidity, .etc these main climate factors. Adopt simulated sunlight spectrum's Xenon arc light to create destructive waves under different environment. It can be used for choosing new materials, improving existing materials, or assessment of durability change after material composed.

Xenon Arc Lamp Accelerated Chamber Features
1.ASLi Brand xenon lamp weather resistance test chamber with advanced design technology and concept.
2. ASLi Brand xenon lamp weather resistance test chamber with excellent technology of producing and outstanding system of quality management.
3. ASLi Brand xenon lamp weather resistance test chamber can be the most realistic simulated solar spectrum.
including ultraviolet, visible and infrared.
4. ASLi Brand xenon lamp weather resistance test chamber tested in the range of the full spectrum, necessary for most textile sun and color fastness test.
5. ASLi Brand xenon lamp weather resistance test chamber can determine the color fastness and aging to sunlight, weather resistance, etc.


Any doubt or needs about Xenon Arc Lamp Accelerated Weather Aging Test Chamber for Plastics, please feel free to contact us.
