Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber

Ai Si Li (China) Test Equipment Co., Limited
  • After-sales Service：Lifelong Technical Service Support
  • Power Supply：AC380V
  • Certification：CE, TUV, ISO
  • Warranty：1 Year
  • Test Hole：50mm or 100mm
  • Water Tank：25L

Base Info

  • Model NO.：TH-1000-D
  • Viewing Window：250*300mm
  • Temperature Range：-40~+150 Degree C
  • Humidity Range：20%~98%R.H.
  • Control Method：LCD Touch Screen
  • Compressor：German Brand
  • Application：LED, Universal
  • Transport Package：Wooden Case
  • Specification：TH Series
  • Trademark：ASLi
  • Origin：Guangdong, China
  • HS Code：85141910
  • Production Capacity：100 Sets,Month

Description

Overview Product Description

Programmable Climate Test Chamber is also called environment testing machine, used to test various Types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspectionfor all Types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

Product ParametersLow Temperature(A:25°C  B:0°C  C:-20°C  D:-40°C  E:-60°C  F:-70°C)
High Temperature 150°C Humidity Range  20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional , need Dehumidifier)Control Accuracy of Temperature and Humidity ±0.5°C; ±2.5% R.H.Temperature Rising/ Falling VelocityTemperature rising approx.  0.1~3.0°C/min ;
temperature falling approx.  0.1~1.0°C/min;

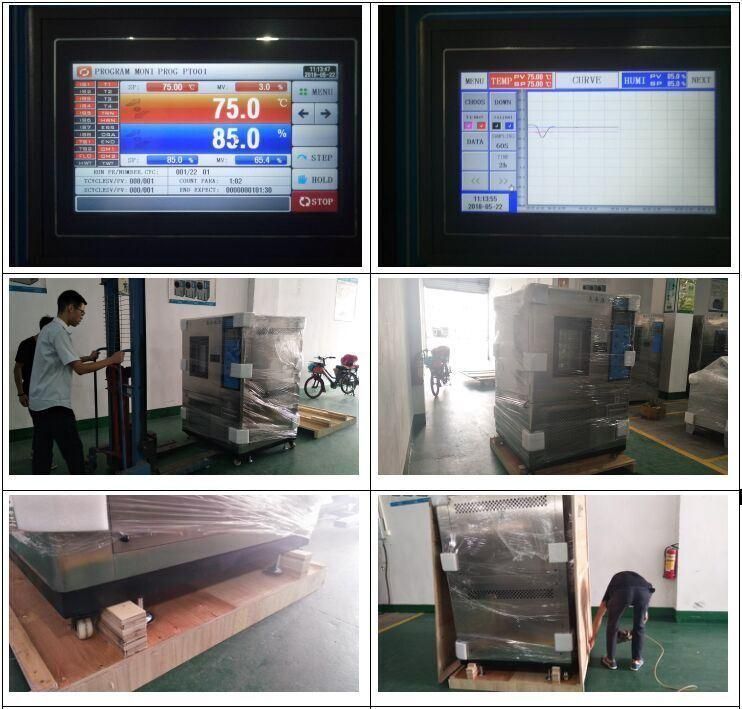

( Falling Min.1.5°C/min is optional) Optional Accessories    Inner door with operation hole , Recorder, Water Purifier, DehumidifierPower AC380V 3 phase 5 lines , 50/60HZ Detailed Photos

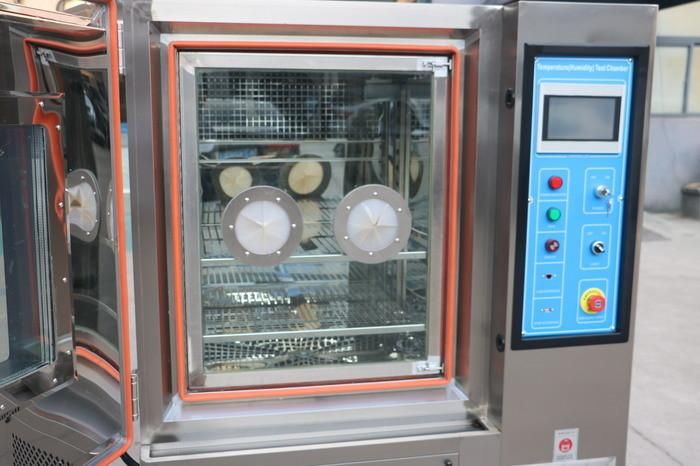

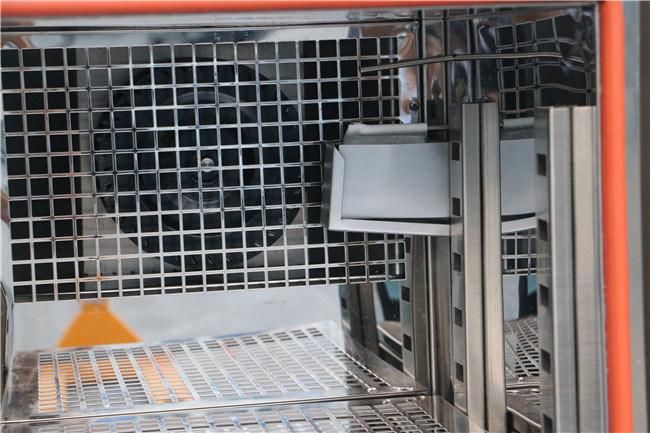

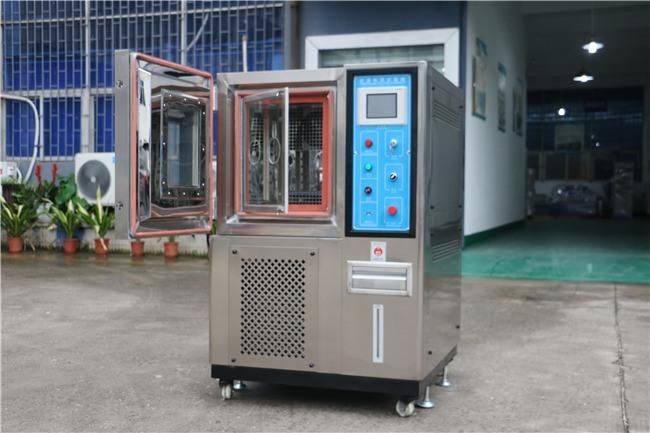

Programmable Constant Laboratory Temperature Humidity Control Climatic Test ChamberProgrammable Constant Laboratory Temperature Humidity Control Climatic Test Chamber

Programmable Constant Laboratory Temperature Humidity Control Climatic Test ChamberProgrammable Constant Laboratory Temperature Humidity Control Climatic Test ChamberProgrammable Constant Laboratory Temperature Humidity Control Climatic Test Chamber



Features of Humidity Chamber:

LCD Touch Screen (TATO TT5166)

PID Control of Temperature and Humidity

Both Temperature and Humidity are Programmable (can have 100 pattern, each pattern has 999 segment)

With Humidity Sensor

With thermostats (prevent overheat)

Test Hole (50 mm diameter)

With Data Storage function by USB Flash Memory

Protection (phase protection, overheat, over current etc)

Water Tank with level detector

Adjustable Shelf

With RS485/232 output to computer

Window Software

Remote fault notification(optional)

 With Viewing Window

Anti-condensation technology of the workroom .(Optional)

User friendly three color LED indicator lamp ,easy to read working condition

Packing Detail:
Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber

Please feel free to contact me if any needs about Programmable Constant Laboratory Temperature Humidity Control Climatic Test Chamber.
