• Model NO.：DTH Series
• Temp. Rising Speed：0.1~3.0degree C,Min
• Temp.Falling Speed：0.1~1.5degree C,Min
• Size：Customize
• Certificate：Ce
• Transport Package：Wooden Case
• Specification：DTH Series
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：85141910
• Production Capacity：100 Sets,Month

Overview Product Description

Inner door with operation hole (optional)
Traveling cable port, Dia. 50mm or 100mm
Sample Shelves, two layers
RS-232 or RS-485 communication


Application:

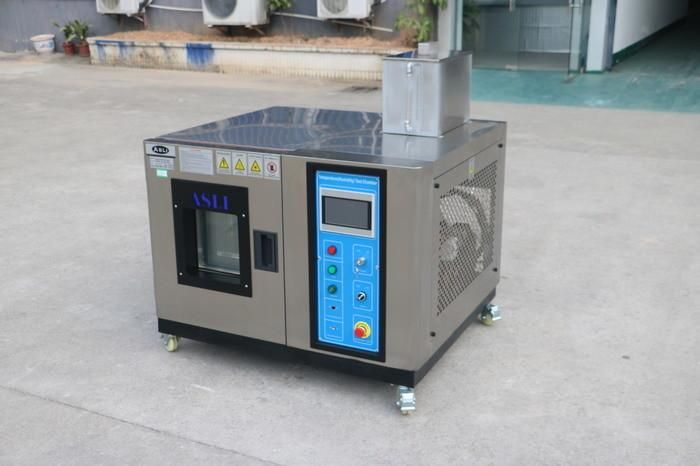

Desktop High Temperature Environmental Thermal Humidity Aging Cycling Testing Oven is used to test various types of materials for their tolerances Of heat, cold, dry, humidity, and applied for quality inspection for all types of electronic products, electric Appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, Building materials, medical and aerospace industries.
 Product ParametersThermal Humidity Aging Cycling Testing Oven Technical Parameters:400*500*400External Dimensions
W*H*D (mm)1150*1150*1050Temperature Range(RT+10degree C) ~+150degree C0~+150degree C-20 ~+150degree CHumidity Range20%~98%R.H. Indication Resolution/
Distribution
Uniformity of
Temperature
and Humidity0.1degree C; 0.1% R.H / ±2.0degree C; ±3.0% R.H.Control Accuracy
of Temperature
and Humidity±0.5degree C; ±2.5% R.H.Temperature Rising/
Falling Velocity Temperature rising approx.  0.1~3.0degree C/min;
 temperature falling approx.  0.1~1.2degree C/min;Interior and Exterior
 MaterialInterior material is SUS 304# stainless steel,exterior is stainless steel or
SEE cold-rolled steel with paint coated.Insulation MaterialResistant to high temperature, high density, formate chlorine, ethyl acetum foam
insulation materials Cooling SystemWind cooling Protection DevicesFuse-free switch, overloading protection switch  for compressor, high and low
 voltage coolant protection switch, over-humidity and over-temperature protection
switch, fuses, fault warning system, water short storage warning protectionOptional AccessoriesInner door with operation hole(Optional), Recorder(optional),Water PurifierCompressor French Tecumseh Brand, Germany Bizer BrandPowerAC 220V(±10%), 1 phase 3  Lines , 50/60HZ;   Weight (Kg)75 Detailed Photos

Desktop High Temperature Humidity Cyclin Machine Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips, .
Rectangular double-paned viewing window for the observation of sample under test, with interior lights.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23, R404A.
6. LCD display screen is used for the control unit, capable of displaying set point and actual value at the
Same time
7. The control unit has the functions of multiples segment program editing, and of quick or ramp rates
Control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.

Exhibition:

If you need more information about Desktop High Temperature Environmental Thermal Humidity Aging Cycling Testing Oven,please don't hesitate to contact us
