Programmable Hot and Cold Temperature Thermal Cycling Testing Chamber
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service：Lifelong Technical Service Support
- Power Supply：AC380V
- Certification：CE, TUV, BV
- Warranty：1 Year
- Temperature Range：-70~+150 Degree C
- Control Accuracy：+,-0.5degree C
Base Info
- Model NO.：HL Series
- Uniformity：+,-2.0degree C
- Temp. Rising Speed：0.1~3.0degree C,Min
- Temp.Falling Speed：0.1~1.5degree C,Min
- Compressor：French Tecumseh Brand
- Transport Package：Wooden Case
- Specification：HL Series
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：85141090
- Production Capacity：50 Sets,Month
Description
Overview
Product ParametersHL -225(A~F)HL -408(A~F) Internal Dimensions
W*H*D (mm) 400*500*400 500*600*500 600*750*500 600*850*800 External Dimensions
W*H*D (mm) 950*1650*950 1050*1750*1050 1200*1900*1150 1200*1950*1350 Temperature Range Low Temperature(A:25degree C B:0degree C C:-20degree C D:-40degree C
E:-60degree C F:-70degree C )
High Temperature 150degree C Analytic Accuracy/
Distribution Uniformity
of Temperature 0.1degree C /±2.0degree C Control Accuracy of
Temperature ±0.5degree C Temperature Rising/
Falling Velocity Temperature rising approx. 0.1~3.0degree C /min ;
temperature falling approx. 0.1~1.5degree C /min;
( The Falling Speed Rate Min.1.5degree C per minute is a special optional condition) Internal and External
Material Material of the inner box is SUS 304# stainless steel,of the outer box is
stainless steel or SEE cold-rolled steel with paint coated. Insulation Material Resistant to high temperature, high density, formate chlorine, ethyl acetum
foam insulation materials Cooling System Wind cooled or water cooled,single segment compressor for -40degree C ,
double segment compressor for -70degree C Protection Devices Fuse-free switch, overloading protection switch for compressor, high and
low voltage coolant protection switch, Over-humidity and over-temperature
protection switch, fuses, fault warning system Optional Accessories Inner door with operation hole(Optional), Recorder(optional),Dehumidifier Compressor French Tecumseh Brand,Germany Bizer Brand Power AC 220V, 1Phase 3 Lines,50/60HZ ; AC 380V ,3 Phase 5 Lines,50/60HZ Approx. Weight (Kg) 150 180 250 320
Product DescriptionHot and Cold Temperature Thermal Cycling Chamber Application:
High low Temperature Cycling Test Chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Hot and Cold Temperature Thermal Cycling Chamber Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for observation of sample under test,with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen is used for the control unit, capable of displaying set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing function
8. Quick or ramp rates control of temperature and humidity.
9. Casters are provided for ease of mobility, with strong positioning screws.

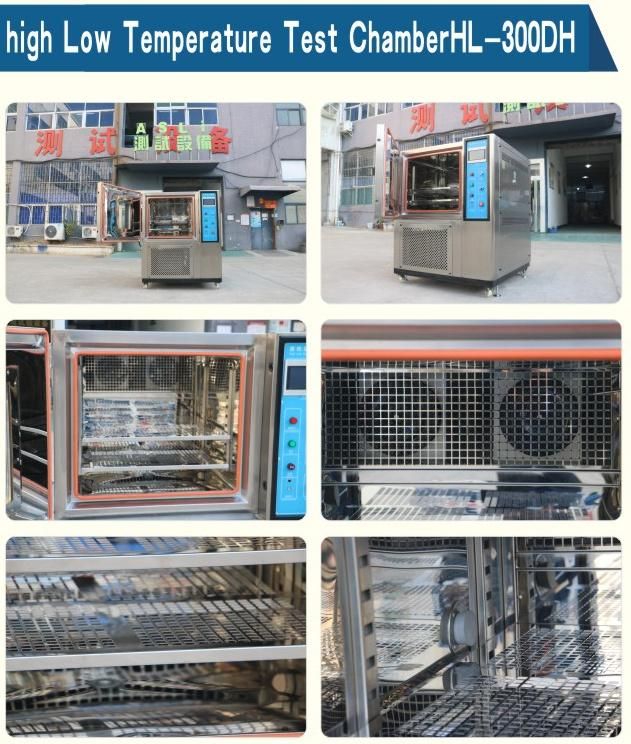

Detailed Photos
Feedback within 2 hours, and offer solution in 48 hours and help to solve the problems.
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.Walk in stability test chamber is our star products , and we had obtained the CE certification for this machine.
Customers' Visit ASLI:

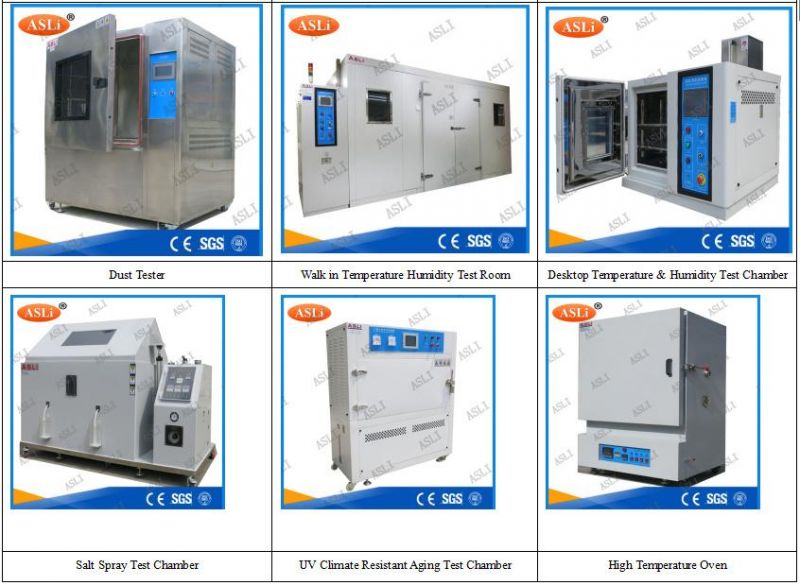

ASLi Main Test Equipments:
Environmental chambers, temperature (humidity) chamber,Programmable Hot and Cold Temperature Thermal Cycling Testing Chamber, Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
