Walk in Temperature and Humidity Control Chamber for Environmental Testing
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service:Lifelong Technical Service Support
- Power Supply:AC380V
- Certification:CE, TUV, ISO
- Warranty:1 Year
- Temperature Range:-70~+150 Degree C
- Humidity Range(Optional):20%~98%R.H.
Base Info
- Model NO.:THR Series
- Temp. Rising Speed:0.1~3.0degree C,Min
- Temp.Falling Speed:0.1~1.5degree C,Min
- Analytic Accuracy:0.1degree C; 0.1% R.H
- Uniformity:+,-2.5degree C; +,-3.5% R.H.
- Control Accuracy:+,-0.5degree C; +,-2.5% R.H.
- Cooling System:Water Cooling
- Transport Package:Wooden Case
- Specification:CE Certified
- Trademark:ASLi
- Origin:Guangdong, China
- HS Code:8514191000
- Production Capacity:100 Sets, Year
Description
1 Product Name
1-1 Product Name: Walk in Temperature and Humidity Control Chamber for Environmental Testing
2 Main Technical Parameters
2-1 Dimension: According to customer's requirements
2-2 Material : SUS#304ss
2-3 Temperature :-40°C~150°C (according to customer's requirements)
2-4 Temperature Indication Resolution: ±0.1°C
2-5 Temperature Control Accuracy: ±0.5°C
2-6 Temperature distribution uniformity:±2°C
2-6 Humidity: 20%~98%R.H (according to customer's requirements)
2-7 Humidity Indication Resolution: ±0.1%R.H
2-8 Humidity distribution uniformity: ± 5.0%R.H
Product ParametersWalk in Test Room Technical ParametersModel
THR-volume (low-temperature options : A ~ F)
Inner Dimensions(cm)
Customers designated space size and design
Temperature Range
Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 80°C (80°C ~150°C is optional)
Humidity Range
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)
0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H.
Control Accuracy of
Temperature and Humidity
±0.5°C; ±2.5% R.H.
Temperature Rising/Falling
Velocity
Temperature rising approx. 0.1~3.0°C/min
temperature falling approx. 0.1~1.0°C/min;
( The Falling Velocity Min.1.0°C /min is a optional)
Cooling System
Water cooled
Protection Devices
Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories
Slope for cart , Recorder, Water Purifier, Dehumidifier
Compressor
French Tecumseh Brand, Germany Bizer Brand
Power
AC 380 V(±10%),50/60HZ ,3 ph 5 Lines

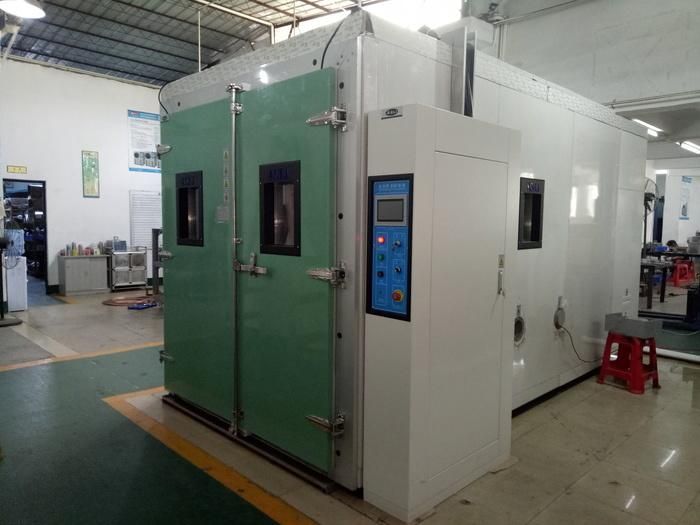

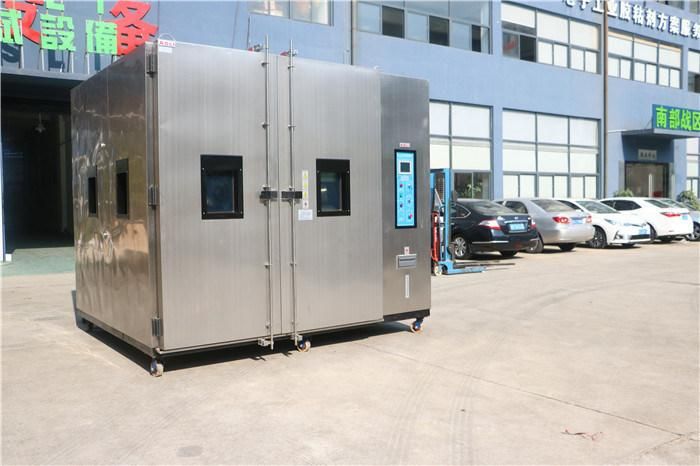

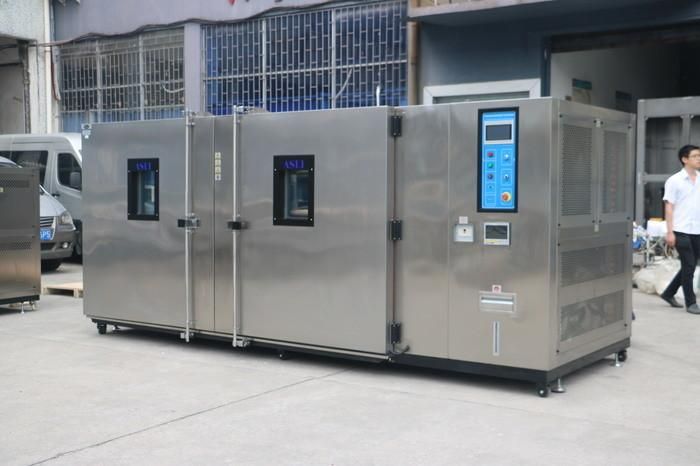

Detailed Photos

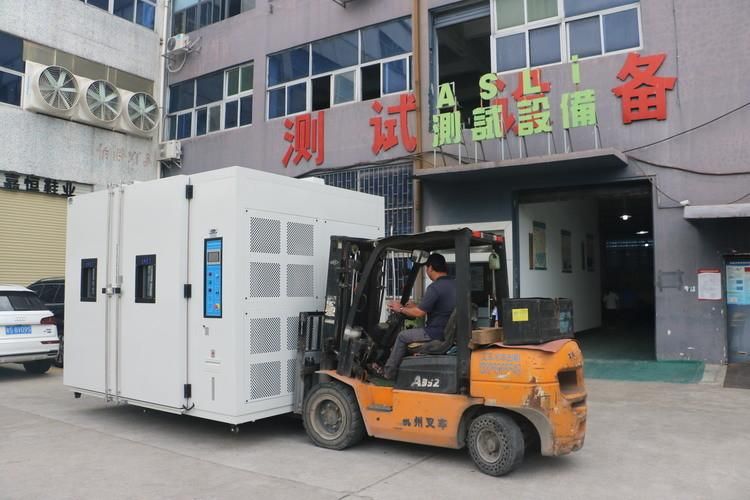

Walk in Temperature and Humidity Control Chamber for Environmental Testing in cutsomer facory.Packaging & Shipping

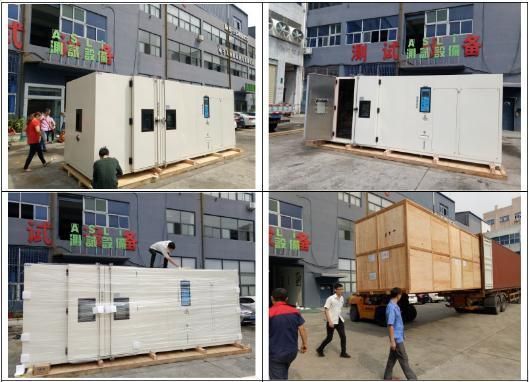

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Company Information
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. Walk in Temperature and Humidity Control Chamber for Environmental Testing is our star products , and we had obtained the CE certification for this machine .
Exhibition:
Please don't hesitate to send your inquiries, if you have any needs about Walk in Temperature and Humidity Control Chamber for Environmental Testing. ^_^
