Walk in Temperature Test Chamber/ Temperature and Humidity Control Cabinet
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service:Lifelong Technical Service Support
- Power Supply:AC380V, 3 Phase 5 Lines
- Certification:CE, TUV, ISO
- Warranty:1 Year
- Temperature Range:-70~+150 C
- Humidity Range(Optional):20%~98%R.H.
Base Info
- Model NO.:THR-Volume
- Temp. Rising Speed:0.1~3.0 C,Min
- Temp. Falling Speed:0.1~1.5 C,Min
- Analytic Accuracy:0.1 Degree C; 0.1% R.H
- Uniformity:+,-2.5 C; +,-;3.5% R.H.
- Control Accuracy:+,-0.5 C; +,-2.5% R.H.
- Cooling System:Water Cooling
- Transport Package:Wooden Case
- Specification:CE Certified
- Trademark:ASLi
- Origin:Guangdong, China
- HS Code:85141910
- Production Capacity:100 Sets,Month
Description
Technical Parameters:Model THR-volume (low-temperature options : A ~ F) Inner Dimensions(cm) Customers designated space size and design Temperature Range Low Temperature(A:25degree C B: 0degree C C:-20degree C D:-40degree C E:-60degree C F:-70degree C )
High Temperature 80degree C (80degree C ~150degree C is optional) Humidity Range 20%~98%R.H.
(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) Indication Resolution/
Distribution Uniformity of
Temperature & Humidity 0.1degree C ; 0.1% R.H/±2.5degree C ; ±3.5% R.H. Control Accuracy of
Temperature and Humidity ±0.5degree C ; ±2.5% R.H. Temperature Rising/
Falling Velocity Temperature rising approx. 0.1~3.0°C/min;
temperature falling approx. 0.1~1.0°C/min;
( The Falling Velocity Min.1.0°C /min is a optional) Cooling System Water cooled Protection Devices Fuse-free switch, overloading protection switch for compressor,high and
low voltage coolant protection switch, over-humidity & over-temperature protection
switch, fuses, fault warning system, water short storage warning protection Optional Accessories Slope for cart , Recorder, Water Purifier, Dehumidifier Compressor French Tecumseh Brand, Germany Bizer Brand Power AC 380 V(±10%),50/60HZ ,3 phase 5 Lines

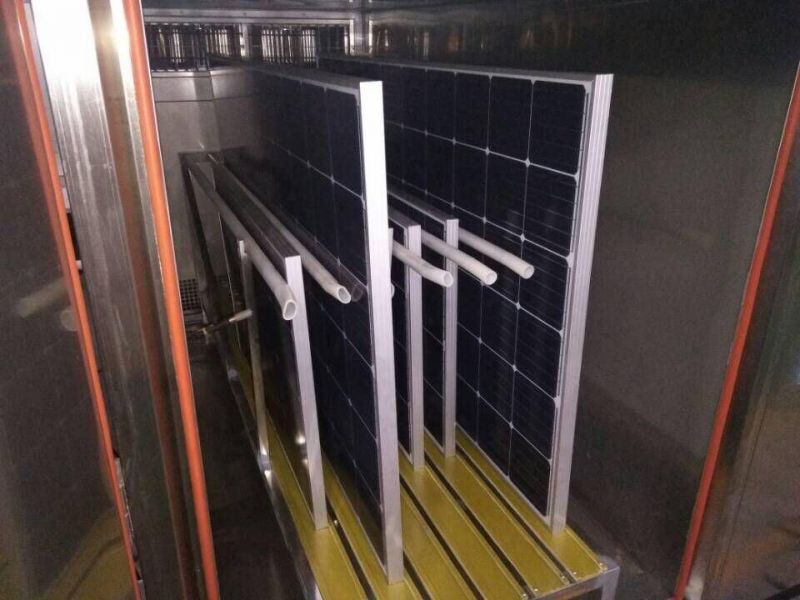

Walk in chamber for PV modules:
Temperature And Humidity Control Cabinet Features :
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of sample under test with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A
6.LCD display screen, capable of displaying the set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, with ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
Central Control Unit:
1.LCD touch screen controller;
2.Machine conversational mode is used for control system;
3.Two lines of input & two lines of output control mode for controlling temperature and humidity separately; Can display set point, program curve, working time, and working condition of heaters, refrigeration units & fan.
4.Test procedure automatic operation and PID parameter self-tuning function;
5.Can automatically combine the subsystem like heating system, humidification/dehumidification system, refrigeration system, circulation fan, super temperature alarming to operate, to ensure high quality of the whole temperature/humidity control system;
6.Control system has automatic self-checking, self-diagnosis, fault display and alarming function.
Main Parameters:
1.Display Mode: LCD display, touch control
2.Display Accuracy: temperature 0.1%, huidity0.1%
3.Set Accuracy: temperautre0.1ºC, huidity0.1%
4.Display Resolution: temperautre0.1ºC, humidity0.1%
5.Sampling Time: 32 S/Time;
6.Graphical Display: Full display of setting and program curve
7.Program Capacity: Max.269 programs,each program with 50 Segment, max.13450 cycles

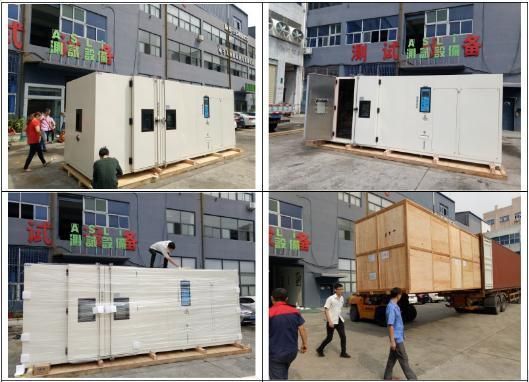

Packing Detail:
Any question or more information needed about Walk in Temperature Test Chamber/ Temperature and Humidity Control Cabinet, please do not hesitate to contact us.
