Mechanical Shock Impact Testing Equipment
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service：Lifelong Technical Service Support
- Warranty：1 Year
- Type：Impact Testing Machine
- Maxcapacity：Customize
- Accuracy Grade：0.001
- Load Way：Mechanical Load
Base Info
- Model NO.：SS-10
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：>2000Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Table Size：200X200mm
- Pulse Acceleration：15~1500 G
- Pulse Width：0.6~18ms
- Wave：Half Sine Wave
- Drive Mode：Mechanical Drive
- Hydraulic Oil：No #46
- Standard：IEC, Mil, Gjb, JIS, ASTM
- Power：AC380V
- Transport Package：Wooden Case
- Specification：SS Series
- Trademark：ASLI
- Origin：Guangdong China
- HS Code：85141910
- Production Capacity：30 Set,Month
Description
Overview
Product Description
Application:
Mechanical Shock Impact Testing Equipment is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.
Product ParametersMechanical Shock Impact Testing Equipment Technical Parameters:Model SS-5 SS-10 SS-25 SS-50 SS-100 SS-200 SS-400 Load Capacity (Kg) 5 10 25 50 100 200 400 Table Size (mm) 120x120 200x200 350x350 450x450 650x650 750x750 850x850 Pulse
Acceleration
(m/s2) Half Sine Wave 150~15000 150~15000 150~15000 150~6000 150~6000 150~3500 150~1500 Trapezoid
Wave 300~1000 300~1000 300~1000 300~1000 300~1000 300~1000 300~500 Sawtooth
Wave 150~1000 150~1000 150~1000 150~1000 150~1000 150~1000 150~500 Pulse width Half Sine
Wave 0.5~18 0.6~18 0.8~25 1.5~30 1.5~30 2~30 6~30 Trapezoid
Wave 6~12 6~12 6~18 6~12 6~12 6~12 6~12 Sawtooth
Wave 6~18 6~18 6~18 6~18 6~18 6~18 6~18 Drive Mode Mechanical drive Hydraulic drive External Dimension
WxHxD (mm) 800x2200
x900 800x2200
x900 850x2250
x950 1000x2600
x1300 1100x2700
x1400 1300x2700
x1600 1300x2700
x1650 Weight (Kg) 600 700 900 2600 3300 4000 4500 Hydraulic Oil No #46 hydraulic oil Power AC 380V 50/60HZ

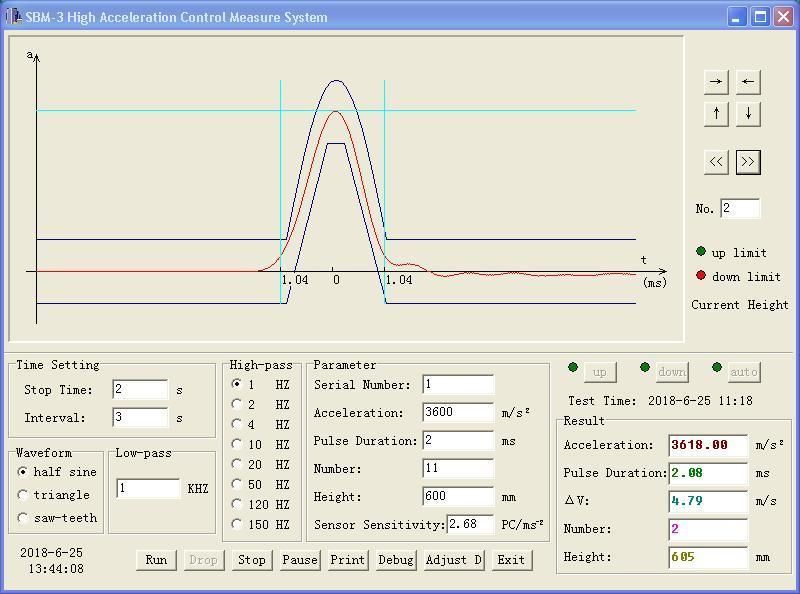

Test Data
Mechanical Shock Impact Testing Equipment Features:
1.Built-in self-protection device, no secondary impact,
2.Shock height controlled by digital
3.Good repeatability test data
4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5.Good vibration isolation performance, impact on the environment can control within the scope of the requirements:
6.Good Safety performance.
7.Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves;Detailed Photos
Our service
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.
Our advantage
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufacturer in China with excellent experience and skills, also have best quality products
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Mechanical Shock Impact Testing Equipment is our star products , and we had obtained the CE certification for this machine .

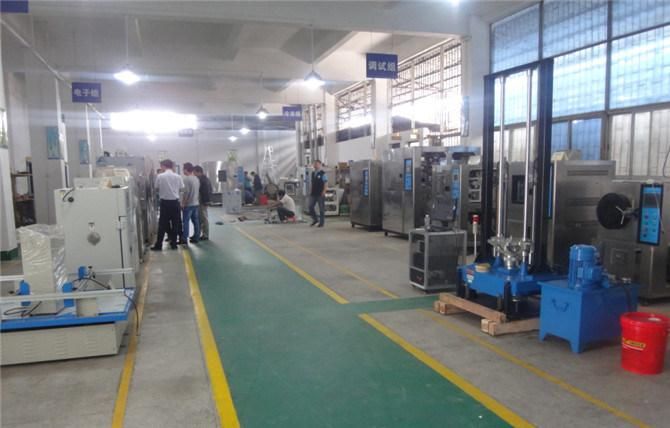

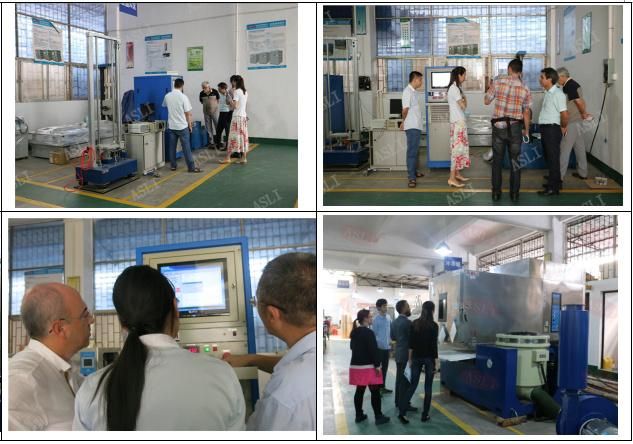

Customers' Training at ASLI factory:
