• Model NO.：PCLD-904P
• Cable Type：Shielded
• Certification：CE, FCC, RoHS
• Customized：Non-Customized
• Color：Orange
• Bandwidth 1：All-Pass: 80Hz 1500Hz
• Bandwidth 2：Low-Pass: 80Hz 400Hz
• Bandwidth 3：High-Pass: 200Hz~1500Hz
• Bandwidth 4：Band-Pass: 150Hz~600Hz
• Signal Gain：>=80dB
• Accuracy：0.1m
• Magnification Times：>80dB
• Battery：7.4V
• Continuous Work Time：Above 9 Hours
• Charger：Input AC220V
• Quick Charging：Below 4 Hours
• Display Method：320X240 DOT LCD
• Size：210mmx95mmx115mm
• Weight：0.6kg
• Working Temp：-10c-40c
• Transport Package：Export Standard Carton with Strong Pallet
• Specification：CE, ROHS
• Trademark：Grewin
• Origin：Tianjin
• HS Code：8543201000
• Production Capacity：100PCS,Month
• Package size per unit product：58.00cm * 46.00cm * 25.00cm
• Gross weight per unit product：9.600kg

Basic Info.

Model NO. PCLD-904P Cable Type Shielded Certification CE, FCC, RoHS Customized Non-Customized Color Orange Bandwidth 1 All-Pass: 80Hz 1500Hz Bandwidth 2 Low-Pass: 80Hz 400Hz Bandwidth 3 High-Pass: 200Hz~1500Hz Bandwidth 4 Band-Pass: 150Hz~600Hz Signal Gain >=80dB Accuracy 0.1m Magnification Times >80dB Battery 7.4V Continuous Work Time Above 9 Hours Charger Input AC220V Quick Charging Below 4 Hours Display Method 320X240 DOT LCD Size 210mmx95mmx115mm Weight 0.6kg Working Temp -10c-40c Transport Package Export Standard Carton with Strong Pallet Specification CE, ROHS Trademark Grewin Origin Tianjin HS Code 8543201000 Production Capacity 100PCS/Month

Packaging & Delivery

Package size per unit product 58.00cm * 46.00cm * 25.00cm Gross weight per unit product 9.600kg

Product Description

Product Description: 0.1m Accuracy Power Cable Fault Pinpointer with ISO9001

1.Introduction:

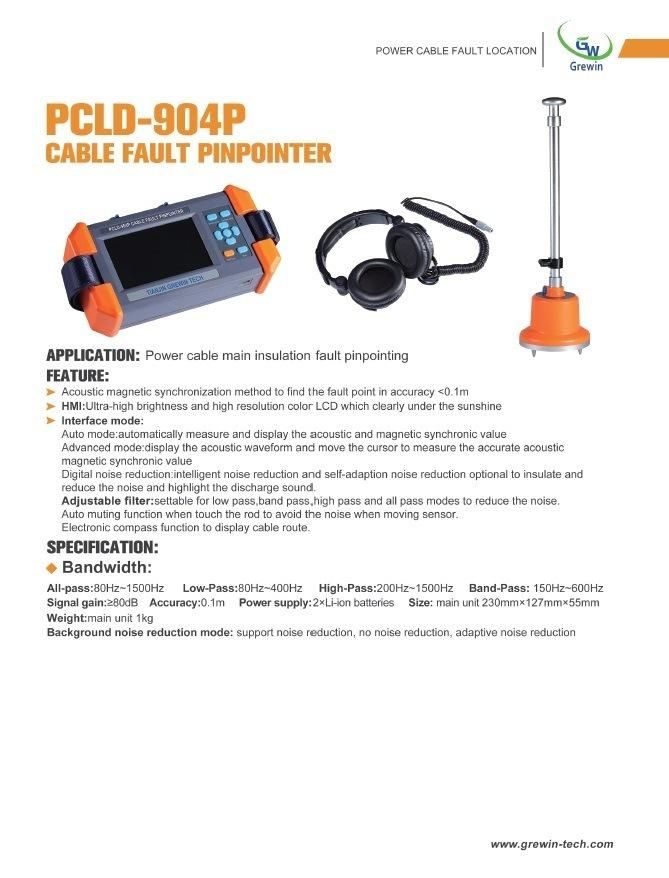

   PCLD-904P  Digital Power Cable Fault Pin-pointer is an easy operation device used to pinpoint the fault point. It integrated the function of acoustic magnetic synchronization method, the step voltage method, the magnetic field strength method to make the pinpointing accuracy.

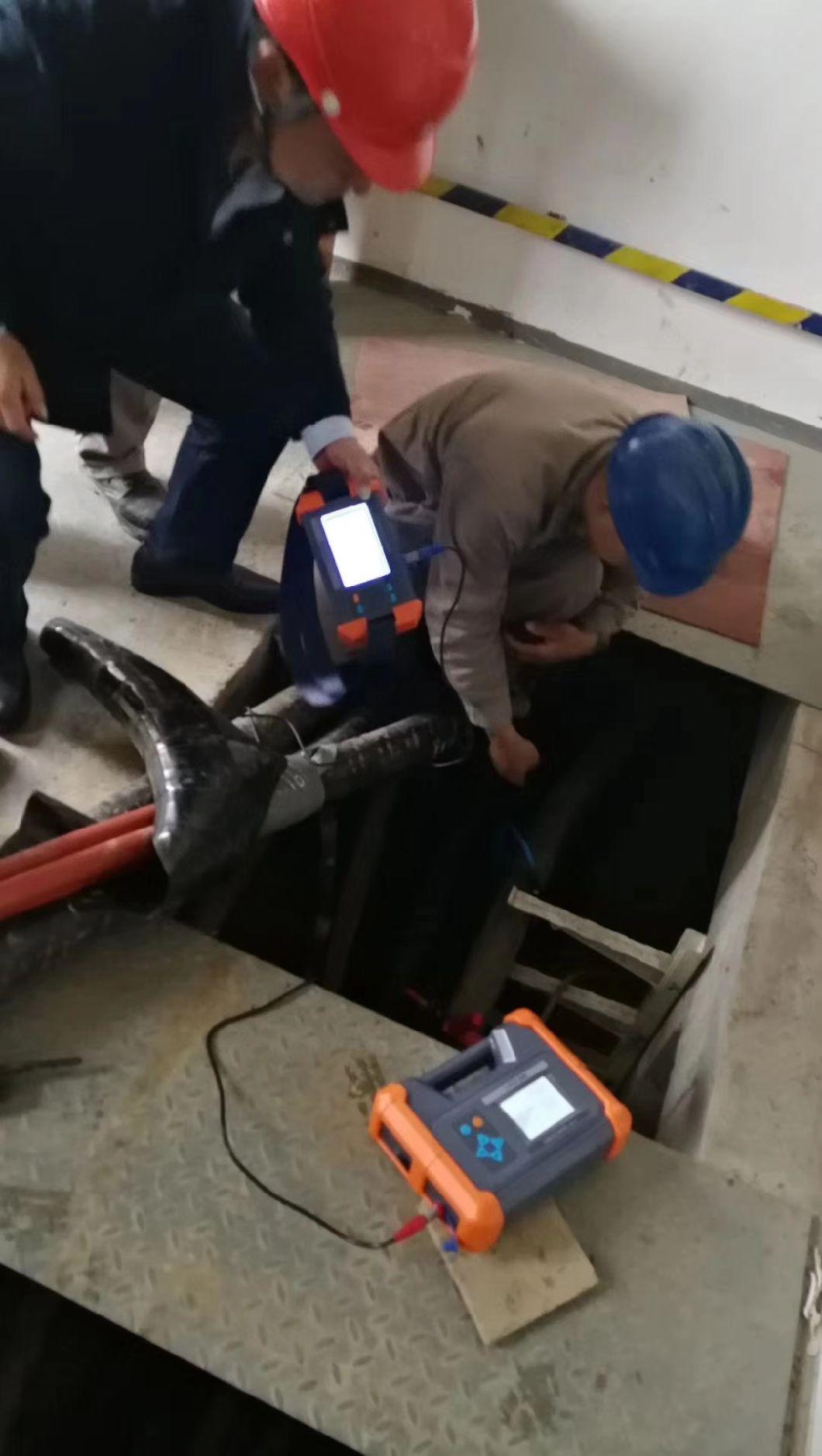

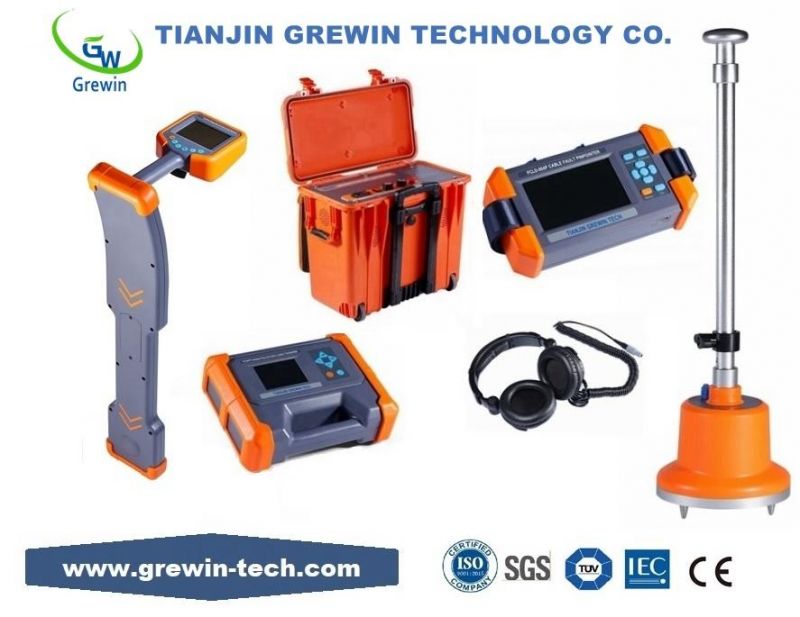

2.Product Pictures:






  3.CABLE FAULT PINPOINTER SPECIFICATION AND ADVANTAGES:







4.Function features:Integrated the function of acoustic magnetic synchronization method, the step voltage method(optional)Intelligent pinpointing method to calculate the acoustic magnetic delay valueBackground noise reduction function Auto muting function to avoid the noiseElectronic compass function to display the included angle between cable route direction and sensor. It's very useful for quick pinpointingacoustic channel filtering parameter adjustableAuto gain adjustment function for easy use, automatic trigger by magnetic fieldHigh performance anti-noise headphoneWater-proof IP 65 for outdoor application Color LCD to make clear display under the sunPower supply management: power off automatically in 5 min. without action; Power off also when low battery voltage

 5.Specification
(1).acoustic magnetic synchronous pin-pointing:
      A.acoustic channel
            Bandwidth:
                    all-pass: 80Hz~1500Hz
                    low-pass: 80Hz~400Hz
                    high-pass: 200Hz~1500Hz
                    band-pass: 150Hz~600Hz
      B.Signal gain: ≥80dB
      C.Accuracy: 0.1m
(2)Step voltage function(optional):Magnification times: >80db
(3)Power supply:
        Battery: built-in Li-ion battery series,7.4V,3400mAH
        Continuous work time above 9 hours
        Charger: input AC220V±10%,50Hz;output 8.4V,DC 1A
        Quick charging below 4 hours
(4)Display method: 320x240 dot LCD, screen semitransparent & Semi Gloss to make sure clear display under the sun
(5)Size: 210mm×95mm×115mm
(6)Weight: 0.6kg
(7)Use environment: -10ºC~40ºC,5-90% RH, elevation <4500m

6.Physical Characteristics:

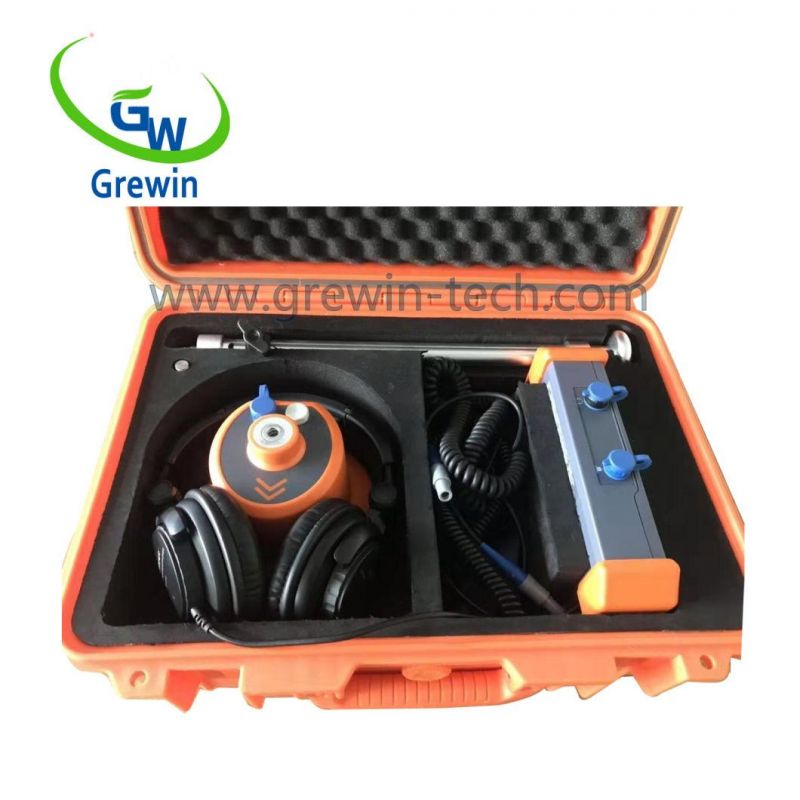

1.Standard Configuration :
Main unit x1
acoustic magnetic synchronous sensors x1
High performance anti-noise earphone x1
Step voltage probe x2(optional, to match with the step voltage function)
Charger x2

2.Main Unit Panel
Details as Fig.2

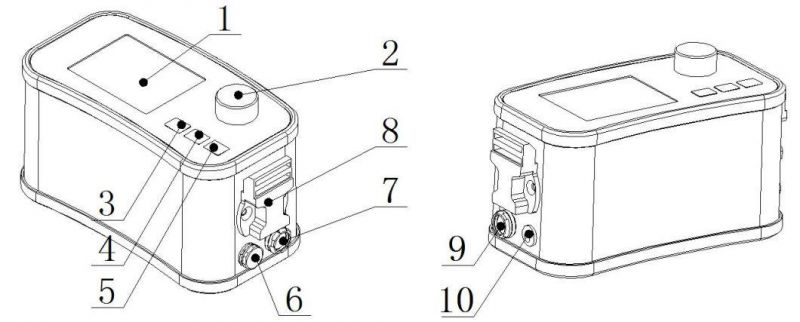

 Fig.2 Main unit front panel
Details:

NO	NAME	INTRODUCTION
1	LCD
2	KNOB	Adjust the acoustic gain or cursor; Adjust the magnetic gain Setting the interface
3	SET/POWER	Long time press: power on/off;short time press: enter or exit
4	MUTE	Headphone on/off
5	CURSE/GAIN	Adjust cursor or gain
6	BREATHER VALVE
7	SIGNAL INPUT	Use the signal line to connect with the sensor
8	STRAP HOOK	Install the strap
9	HEADPHONE INPUT	Connect with the headphone
10	CHARGING PORT

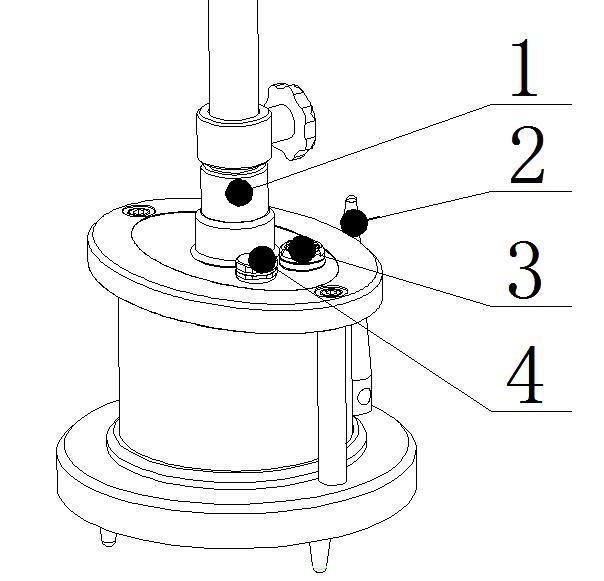

Fig.3 Sensor introduction


NO	NAME	INTRODUCTION
1	Pole	Install method: insert into the open hole and rotate the pole as one quarter turn
2	Long probe	Used for the lawn or soft ground. Remove it and install in the screw hole in the bottom
3	Signal port	Use to contact with the main unit with signal line
4	Breather  valve

7.Company introduction:

1).Company profile
     Tianjin Grewin is concentrating on transformers for 20 Years and complianted by ISO9001:2015,CB,IEC CB,CE etc.We're always pay great attention to its business philosophy "Quality and Honesty First".Grewin is specialized in the design and manufacture of wound components such as transformer,current sensors, chokes etc .windely used in communications,electronics,meters,industrial control,medical equipments and other fields.We are also a provider of power meters and instruments locators. 85% of its products exported to America, Europe, and Asia etc.We sincerely invite you to join us to create a bright future.

2).Terms of Shipment:
Within 10 working days after received related prepayment or L/C.

3).Payment terms:
(1)T/T 100% or 50% deposit by T/T in advance, balance amount to be paid 7 days before
delivery.
(2) By irrevocable L/C at sight, to be issued immediately against confirmed order.
(3)Payment by T/T, if order amount is less than USD 20,000.

4).Warranty:
(1)We provide 1 year warranty.
(2)If the product is defective, please notify us within 3 days of delivery.
(3)All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

5.Flow chart of trading activities:

NO	Step	Days need
1	Request for quotation	1 day
2	Making quotations	1 day
3	Offer and counter offer	3 days
4	Sending and receiving samples	3-10 days
5	Sample confirmation	3 days
6	Placing a firm order	1 day
7	Paying and receiving the down payment	1-4 day
8	Factory production & Quality inspection	15-20 days
9	Paying and receiving the balance	4 days
10	Delivery of goods	1 days
