• Model NO.：TDRL-960 TDR Cable Fault Locator
• Certification：CE, RoHS, CE, ISO, RoHS
• Customized：Non-Customized
• Color：Orange
• Type：Energy Meter
• Type1：Gwd-960 Tdr Cable Fault Locator
• Range：0-8km
• Resolution：Max.1m
• Unipolarity Impulse：30V
• Ambipolar Impulse：±30V
• Measurement Dead Zone：1m
• Variable-Gain Range：0-80dB
• Display1：128*64 DOT LCD
• Dimension：225mmx105mmx50mm
• Weight：0.5kg
• Transport Package：Export Standard Carton or Customize Strong Pallet
• Specification：TDRL-960 TDR Cable Fault Locator
• Trademark：GWD-960 TDR Cable Fault Locator
• Origin：China
• HS Code：9028901000
• Production Capacity：4000 PCS Per Month

Basic Info.

Model NO. TDRL-960 TDR Cable Fault Locator Certification CE, RoHS, CE, ISO, RoHS Customized Non-Customized Color Orange Type Energy Meter Type1 Gwd-960 Tdr Cable Fault Locator Range 0-8km Resolution Max.1m Unipolarity Impulse 30V Ambipolar Impulse ±30V Measurement Dead Zone 1m Variable-Gain Range 0-80dB Display1 128*64 DOT LCD Dimension 225mmx105mmx50mm Weight 0.5kg Transport Package Export Standard Carton or Customize Strong Pallet Specification TDRL-960 TDR Cable Fault Locator Trademark GWD-960 TDR Cable Fault Locator Origin China HS Code 9028901000 Production Capacity 4000 PCS Per Month

Product Description

Tianjin Grewin Technology Co.,ltd, who always pay great attention to its business philosophy "Quality and Honesty First". Grewin is specialized in the design and manufacture of wound components such as transformer,current sensors, chokes etc . windely used in communications,electronics,meters,industrial control,medical equipments and other fields.We are also a provider of power meters and instruments locators. 85% of its products exported to America, Europe, and Asia etc. We have passed ISO9001,CE,SGS approval and IEC report and developed good cooperative relationship with valued customers around product quality and value-added service along with the fast efficient solution.Grewin has won a lot of customer's praise.

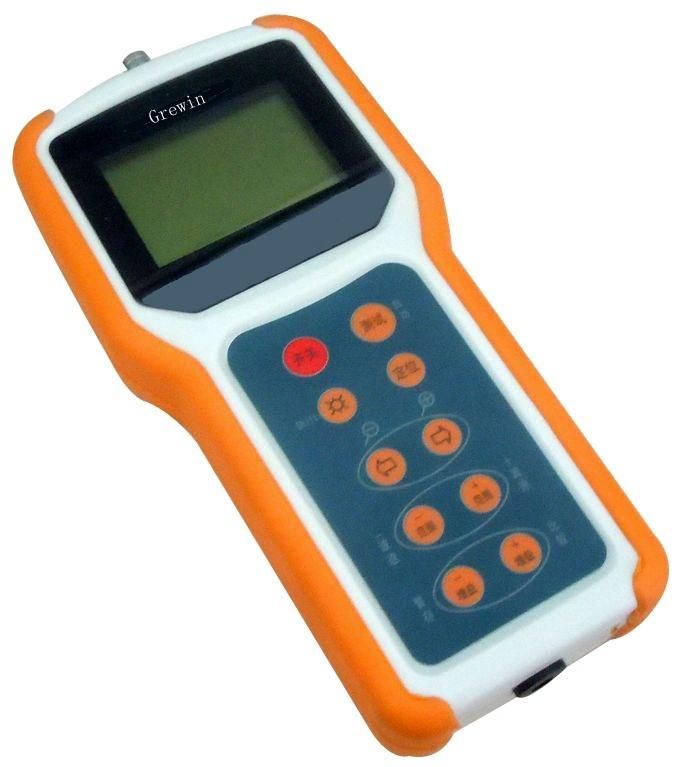

TDRL 960 Cable Fault Location

Locating the disconnection fault, cross fault,
insulation fault and so on.
Measure the cable length, wave velocity
Distinguish the middle joints and terminals


TDRL 960 Cable Fault Location Function Introduction:
1. TDR(Time Domain Reflectometry)method
2. Automatic measurement
3. Auto power-off when sleeping and low battery voltage
4. Friendly user interface, easy to operate
5. Supply by dry batter or recharge battery
6. Handheld device, easy to carry

TDRL 960 Cable Fault Location Function Specification:

1. Range:0-8km
2. Resolution:max.1m
3. Unipolarity pulse
4. Impulse amplitude: unipolarity impulse 30VAmbipolar impulse ±30V
5. Impulse width:80ns-10μs,adjustable
6. Measurement dead zone:1m
7. Adjustable wave velocity :100-300m/μs
8. variable-gain range:0-80db
Display:128*64 dot LCD
Power:5pcs AA nickel hydrogen batteries
Dimension:225mmx105mmx50mm
Weight:0.5kg







Name: TDRL-960 TDR Cable Fault Locator

 Company Introduce:


Tianjin Grewin Technology Co.,Ltd have twenty years producing experience, located in Tianjin , China, our company have professional design term, advanced technology and equipment, especially pay great attention to its business philosophy "Quality and Honesty First". Grewin is specialized in the design and manufacture of  intelligent power meter and testing device, such as Three/single Phase Multi function Meter, Power Monitoring device,Intelligent Pipe Locator,Route tracing/Cable identification/depth measurement/grounding fault location and so on;especially the EPM and TPM product got inland and over sea's clients praise, and established OEM or ODM relationship. Our products have passed and obtained ISO9001 certificate ,CE certificate,SGS approval, and IEC report. We have developed good cooperative relationship with valued customers around the word, have first class product quality and one basket value-added after sales service along with the fast efficient solution. Grewin has won its brand in word wide.
