• Model NO.：TS Series
• Temperature Recovery Time：Less Than 5mins
• Conversion Time：Less Than 5 Seconds
• Temperature Control Accuracy：+,-0.5 Degree C
• Distribution Accuracy：+,-2degree C
• Compressor：French "Tecumseh" Brand
• Control Method：Programmable LCD Touch Screen
• Transport Package：Wooden Case
• Specification：TS Series
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：85141090
• Production Capacity：300 Sets,Month

Overview Product Description

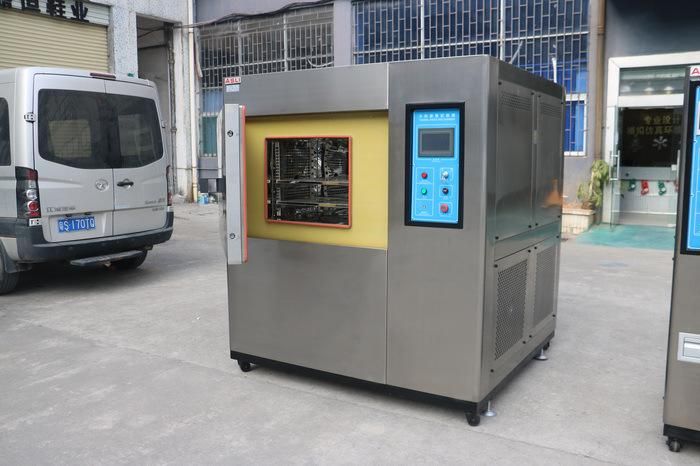

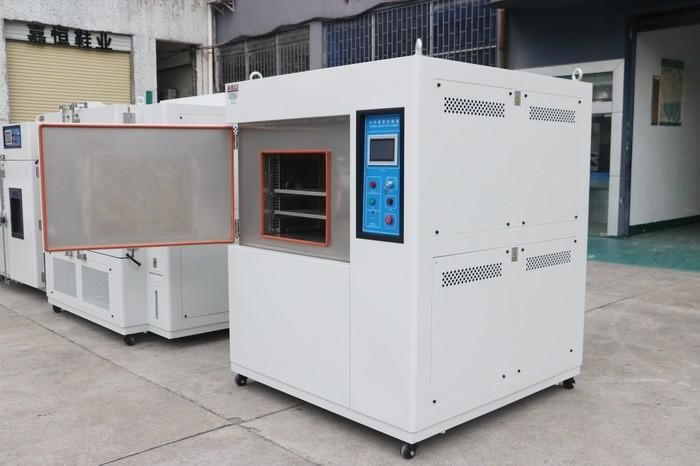

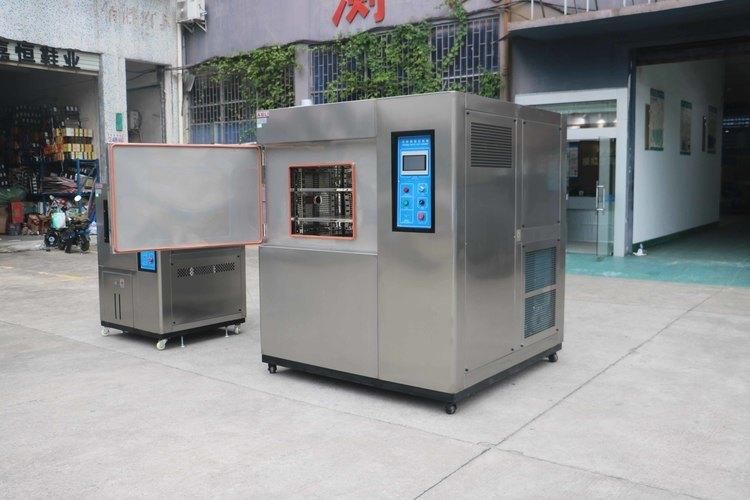

Programmable LCD Touch Screen Environmental Air Thermal Shock Testing Machine is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for product improvement.

Product ParametersLCD Touch Screen Thermal Shock Testing Machine Technical ParametersModel  TS-42(A~C) TS-80(A~C) TS-150(A~C) TS-252(A~C) Internal Dimension
W*H*D ( mm) 400*350*350 500*400*400 600*500*500 700*600*600 External Dimension
W*H*D (mm) 1400*1800*1400 1550*1950*1550 1600*2000*1700 1700*2100*1750 Temperature Range
of Testing zone Type A:-40 degree C
~+150degree C
(200degree C is Optional) Type B:-55degree C ~
+150degree C
(200degree C is Optional) Type C:-65degree C  ~+150degree C
(200degree C is
Optional)  High temperature Range of Testing zone:
+60degree C~+150degree C(200degree C is Optional);
Low Temperature Range of Testing Zone: -10degree C~-40degree C/-55degree C/ -65degree C Exposure Time of
High/Low Temperature Exposure Time of High Temperature:+60degree C~+150degree C
(200degree C is Optional)  30Mins Exposure Time of Low Temperature:-10degree C~Type A:-40degree C/
Type B -55degree C/ Type C -65degree C  30Mins Temperature of
Heat-Storing Slot/
Heating Time  RT~200degree C/About  45mins Temperature of
 Cool-storing Slot/
Cooling Time RT~-75degree C/ About 100mins Temperature
Recovery Time/
Conversion Time ≤5min/≤5sec  Control Accuracy /
Distribution Uniformity   ±0.5degree C/±2degree C Internal and Externa
l Material Material of the inner box is SUS 304# stainless steel,of
the outer box  is stainless steel or  SEE cold-rolled steel
with paint coated. Insulation Material High temperature  resistant, high density, formate chlorine,
ethyl acetum foam insulation materials  Mechanics P.I.D+S.S.R+ Micro-computer balanced temperature control system Cooling System Semi-hermetic double-stage compressor(water-cooled type) /
Hermetic double-stage compressor (air-cooled type) Security Protection
 Devices Non-fuse breaker, high and low pressure protective switch of the compressor ,refrigerator
high-pressure protective switch, failure warning system, electronic alarm Accessories Viewing window(special order) Compressor French "Tecumseh" Brand, Germany Bizer Brand Power AC220V 1 phase  3 lines,50/60HZ, AC380V 3phase  5 lines,50/60HZ Weight (Approx) 450 600 750 950

Thermal Shock Machine Features:
1. It is divided into three zones: High temperature zone, low temperature zone, and testing zone. The test sample is in static mode.
2. Using touch-control graph control as operation interface, easy to operate.
3. Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4. For high temperature shock or low temperature shock, max. Time is up to 999H, and max. Circulation cycles are 9999 times.
5. The system can be used for automatic Circulation Shock or manual selective shock.
6. Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7. Can entering normal temperature. RS-232 and RS-485 communication.Detailed Photos

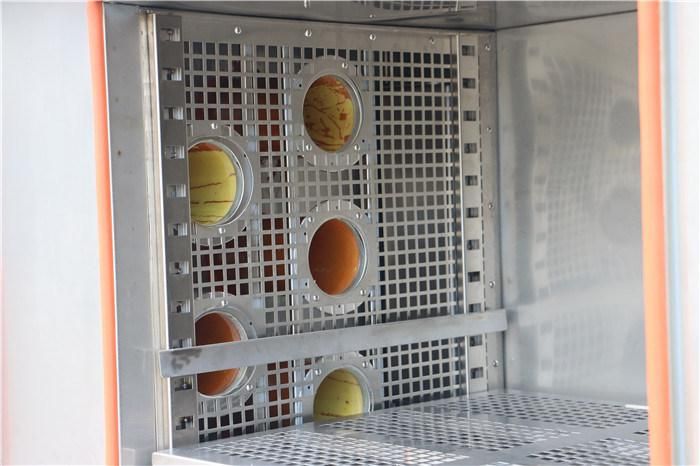

Thermal Shock Chamber with Custom Test Holes:

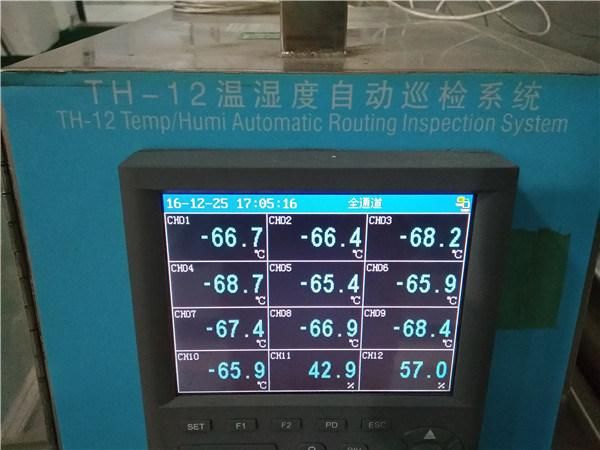

9-Point calibration method to calibration the uniformity of thermal shock test equipment (-66ºC testing):

If you need mroe information about Programmable LCD Touch Screen Environmental Air Thermal Shock Testing Machine, please feel free to send your inquiry.
