• Model NO.：GD-5096A
• Heating Power of Bath：1600W
• Temperature Control Range of Bath：Ambient to 100
• Temperature Control Accuracy：1
• Temperature Display：LCD
• Timing Function：Yes
• Transport Package：Wooden Case for ASTM D130 Corrosion Testing Equipm
• Specification：440*330*560MM
• Trademark：Gold
• Origin：China
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. GD-5096A Heating Power of Bath 1600W Temperature Control Range of Bath Ambient to 100 Temperature Control Accuracy 1 Temperature Display LCD Timing Function Yes Transport Package Wooden Case for ASTM D130 Corrosion Testing Equipm Specification 440*330*560MM Trademark Gold Origin China Production Capacity 100 Sets/Month

Product Description

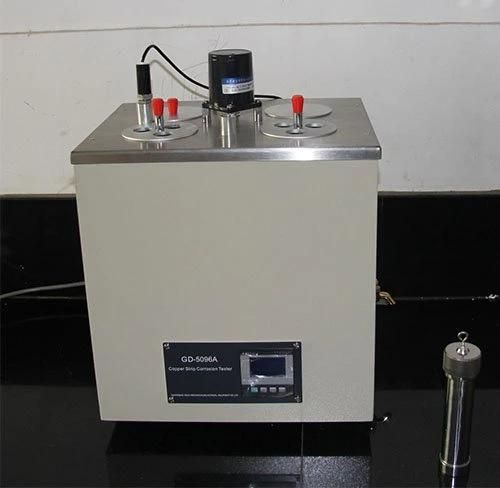

ASTM D130 Corrosion Testing Equipment by Copper Strip



Introduction:

ASTM D130 corrosion testing equipment is designed and made as per ASTM D130 Standard Test Method for Detection of Copper Corrosion from Petroleum Products by Copper Strip Tarnish Test.

ASTM D130 corrosion testing equipment  is suitable to determine the corrosiveness to copper of aviation gasoline, aviation turbine fuels, automotive gasoline, tractor fuels, washing solvent, kerosene distillate, lubricating oil, and other petroleum products.

ASTM D130 corrosion testing equipment  has functions of temperature controlling, automatic timing and alarming.






Features:



1. ASTM D130 corrosion testing equipment  adopts LCD temperature controller, heater and electric stirrer to form the constant bath. The temperature in bath is uniform. The temperature controller has timing function. It can control the test time and automatically timing. There will be alarm when finished.

2. ASTM D130 corrosion testing equipment  has four sample holes. One bomb or three tubes can be put in each hole to be determined. The test efficiency is high.

3. ASTM D130 corrosion testing equipment  equips a standard color board imported from USA. It can meet requirements of test method.


Specifications:

Product name	ASTM D130 Copper Strip Corrosion Test Apparatus
Power supply	AC 220 V±10%, 50 Hz
Temperature sensor	RTD, Pt100
Temperature range	Ambient to 100 ºC
Temperature control accuracy	±1 ºC
Temperature display mode	LCD
Heating power	1600 W
Time controlling range	1 minute~24 hours
Sample testing positions	4
Sample quantity at one test	4 pieces~12 pieces
Ambient temperature	Room temperature~35 ºC
Relative humidity	≤ 85%
Maximum power consumption	1800 W
Dimension	440mm*330mm*560mm
