• Model NO.：GD-H1311
• Noack Volatility：ASTM D5800
• Evaporation Loss：Noack Evaporation Loss Apparatus
• Evaporation Loss Calculation：Test The Evaporation Loss,Volatility of Engine Oil
• Application：The Evaporation Loss Tendencies of Lubricating Oil
• Temperature Control Mode：Digital Display Pid Temperature Control
• Temperature Control Range：Normal Temperature ~ 250+,-0.5c
• Heating Method：Metal Bath Heating
• Pressure Regulation：High Precision Needle Valve
• Suction Method：Vacuum Pump
• Warranty：12 Months
• Transport Package：Plywood
• Trademark：GOLD
• Origin：Made in China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-H1311 Noack Volatility ASTM D5800 Evaporation Loss Noack Evaporation Loss Apparatus Evaporation Loss Calculation Test The Evaporation Loss/Volatility of Engine Oil Application The Evaporation Loss Tendencies of Lubricating Oil Temperature Control Mode Digital Display Pid Temperature Control Temperature Control Range Normal Temperature ~ 250+/-0.5c Heating Method Metal Bath Heating Pressure Regulation High Precision Needle Valve Suction Method Vacuum Pump Warranty 12 Months Transport Package Plywood Trademark GOLD Origin Made in China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

ASTM D5800 Noack Evaporation Loss Apparatus for Noack Volatility Test of Engine Oils



ASTM D5800 Noack Evaporation Loss Apparatus:

Test Method:  A quantity of 65g of a lubricant is placed in an evaporative crucible and heated to 250°C for 60 minutes. The evaporation loss tendencies of the lubricant are determined by passing a constant air stream over the heated sample by means of a vacuum pump.

The Noack Volatility Test is used to test the evaporation loss of lubricating oils, an issue of particular importance in engine lubrication. Portions of an oil can evaporate under high temperature conditions, potentially altering oil properties such as viscosity. A low Noack score indicates an oil that will maintain its original protective and performance quality for a longer amount of time. These oils perform better under heat, translating to better engine protection, longer oil life, and improved fuel economy.


Features:

1. The latest technology: replace the Noack A method, the test process does not require Wood Alloy to avoid environmental pollution and personal injury.

2. Control mode: embedded operating system, high-speed microprocessor control, stable and reliable work.

3. Printing method: USB printer interface, RS232 interface.

4. Touch screen: LCD display, convenient touch screen operation.

5. Security: Built-in diagnostic program and various alarm functions.

6. Precision control: built-in large-capacity EPROM, real-time recording of temperature and pressure values at each moment.


Parameters:

1. Applicable standards: ASTM D5800, DIN51581, NFT60616, CECC40A9S, SH/T0059.
2. Temperature control mode: digital display PID temperature control
3. Temperature control range: normal temperature ~ 250 ± 0.5ºC
4. Heating method: metal bath heating
5. Pressure regulation: high precision needle valve
6. Suction method: vacuum pump
7. Metal bath heating device, safe and environmentally friendly
8. Imported inclined tube differential pressure gauge to ensure accurate pressure
9. Equipped with a special vacuum pumping system
10. Digital timer to record the test time

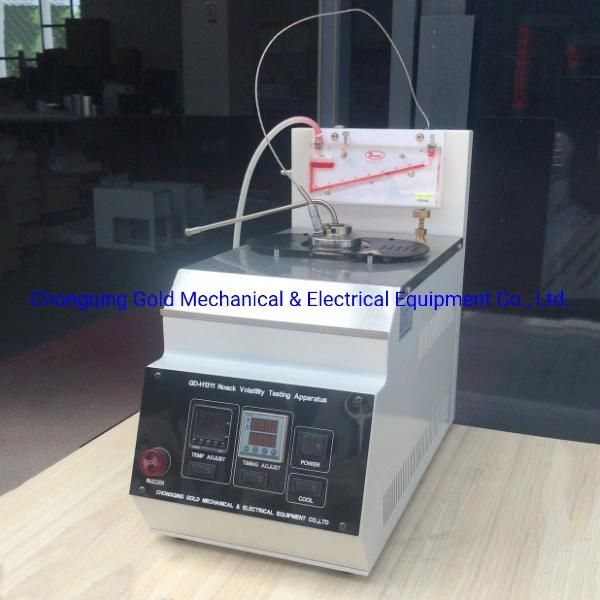

ASTM D5800 Noack Evaporation Loss Apparatus in our laboratory:
