• Model NO.：HD-E808
• Certificate：ISO9001: 2008
• Design Criteria：ASTM, ISO, Cns, DIN, JIS
• Warranty Period：One Year
• Delivery Time：15 Days After Receive The Payment
• Inner Box Size (L*W* H)：90* 60* 50 Cm
• Outside Box Size(L* W* H)：141*88* 128 Cm
• Lab Volume：270L
• Brine Tank Capacity：25L
• Accessories：Testing Salt, Measuring Tank, Equipment Each 1 Se
• Transport Package：Strong Wooden Case
• Specification：ISO9001: 2008, CE
• Trademark：Haida
• Origin：Guangdong, China
• HS Code：9031809090
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-E808 Certificate ISO9001: 2008 Design Criteria ASTM, ISO, Cns, DIN, JIS Warranty Period One Year Delivery Time 15 Days After Receive The Payment Inner Box Size (L*W* H) 90* 60* 50 Cm Outside Box Size(L* W* H) 141*88* 128 Cm Lab Volume 270L Brine Tank Capacity 25L Accessories Testing Salt/ Measuring Tank/ Equipment Each 1 Se Transport Package Strong Wooden Case Specification ISO9001: 2008, CE Trademark Haida Origin Guangdong, China HS Code 9031809090 Production Capacity 150 Sets/Month

Product Description

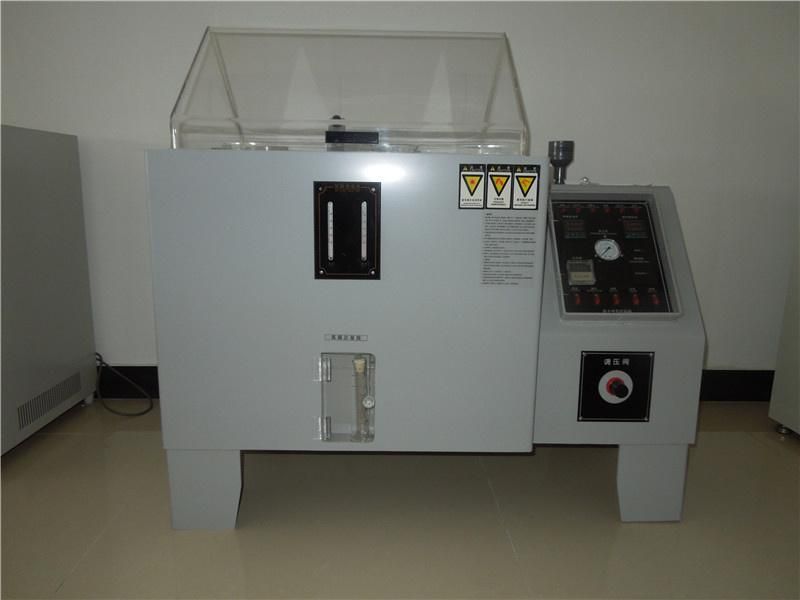

Environmental Climatic Salt Spray Test Chamber for Corrosion Resistance Testing
 Dedcription:
Salt spray tester adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.

Continuous salt spray exposures are widely specified for testing components and coatings for corrosion resistance. Applications include plated and painted finishes, aerospace and military components, and electrical/electronic systems.

Most of these tests are performed to particular specifications such as ASTM B117 (Salt Spray). These tests are widely used for relative corrosion testing. They are typically run at an elevated temperature and do not incorporate a dry-off cycle. They require heated, humidified air for the spray. It has the advantages include the elimination of:

- manual moving of test specimens from one chamber to another
- laborious spraying of test specimens
- variability in results from excessive specimen handling

Parameters:

Model	HD-E808-90
Inner Box Size (L× W× H)	90× 60× 50 cm
Outside Box Size(L× W× H)	141× 88× 128 cm
Equipment Material	Both inside & outside shell of salt spray chamber adopt imported P. V. C rigid plastic board, and tank cover uses imported transparent  P. V. C. rigid plastic board
Temperature Range	35  centigrade degrees to 55 centigrade degrees
Temperature Fluctuations	≤ ± 0.5 centigrade degrees
Temperature Uniformity	≤ ± 2 centigrade degrees
Temperature Precision	± 1 centigrade degrees
Test Chamber Temperature	Salt Spray Method (NSS ACSS)35± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 50± 1 centigrade degrees
Saturated air Barrel Temperature	Salt Spray Method (NSS ACSS)47± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 63± 1 centigrade degrees
Brine Temperature	35 centigrade degrees± 1 centigrade degrees
Spray Quantity	1.0~2.0 ml / 80cm2 / hr
PH	Salt Spray Method (NSS ACSS6.5~7.2)   Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume	270L
Brine Tank Capacity	25L
Power	AC220V, 10A
Multiple Safety Protection Devices	Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories	Testing Salt/ Measuring tank/ Equipment  each 1 set
Standard	CNS: 3627, 3385, 4159, 7669, 8886; JIS: D0201, H8502, H8610, K5400, Z2371; ISO: 3768, 3769, 3770; ASTM: 8117, B-117, B268

The introduction of Haida

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.




Packaging & Shipping:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.




After-service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
