• Model NO.：HD-E703-50A
• Power Source：AC380V
• Certificate：ISO9001: 2008
• Warranty Period：12 Months
• Ambient Temperature：0 Centigrade Degrees to 30centigrade Degrees
• Preheating Temperature：+60.00centigrade Degrees to +200.00centigrade Deg
• Precooling Temperature：-10.00centigrade Degrees to -70.00centigrade Degre
• Interal Dimension：(W× H× D) 60× 70× 60cm
• Outside Dimension：170× 235× 182cm
• Damper Device：Forced Air Drived Damper
• H. T. Shocking：+60.00centigrade Degrees to +150.00centigrade Degr
• L. T. Shocking：-10.00centigrade Degrees to -65.00centigrade Degre
• Transport Package：Strong Wooden Case
• Specification：ISO9001: 2008
• Trademark：Haida
• Origin：Guangdong, China
• Production Capacity：60 Sets,Month

Test method

Pneumatic operated door switch 3 chambers

Inner dimension (W*D*H)

500*450*450mm

External dimension (W*D*H)

1380*1370*1980mm

Temperature range

-40 ~ +80ºC

High temperature chamber pre-heating range

60 ~ 100ºC

Heating speed

+60→+100ºC about 10 minutes

Low temperature chamber pre-cooling range

-65 ~ 0

Cooling speed

Ambient →-65ºC about 65 minutes

Temperature deviation

±3ºC

Thermal recovery time

Within 5 minutes

External material

Antirust processing cold-rolled steel sheet

Internal material

SUS#304 stainless steel

Thermal insulation material

Polyurethane foam and fiberglass

Coolant

R404A / R23

Cooling method

Air cooling

Pressure

0.2 - 0.5Mpa

Power supply

Three phase, 380V, 50Hz

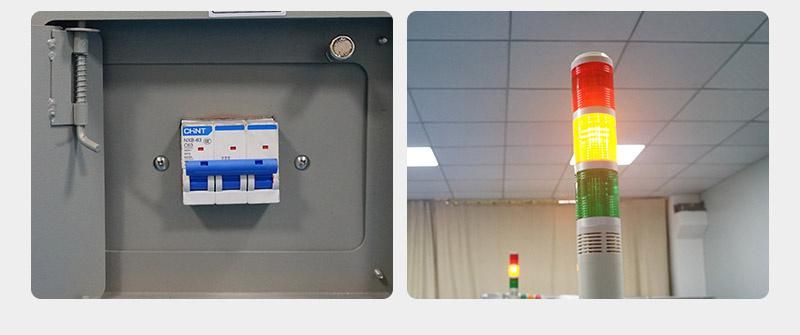

Safety devices:

Leakage and breaker, over temperature, low temperature protect device, exhaust valves, sample power control terminal, over temperature protection of high and low chamber, compressor over pressure, over heat protection, out of water relay, heat relay of fan, compressed air pressure switch, fuse, external alarm terminal

Our company Introduction:

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.

Onsite Service
Haida Equipment Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:

1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment

Free technical training for visiting factories

24-hour Online contact

Free software upgrades

Free information:

1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)

Device Problem Handling:

1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service

Packaging & Shipping

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case.

FAQ

Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
    12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con


If you want to know more information...

Please leave a message below and click " SEND "

Thanks for your time and attention!
