• Model NO.：ZLT-DY1
• Power Source：AC220V
• Usage：Test Cable Connection with Tensile Load
• Certification：CNAS Calibration Provided
• Material：Stainless Steel Cabinet
• MOQ：1 PC
• Delivery：in 20-25 Days
• Transport Package：in Plywood Carton
• Specification：IEC60884,2006 figure 20, VDE0620 Bild 20.
• Trademark：ZLTJC
• Origin：Guangzhou, Guangdong, China
• HS Code：9031809090
• Production Capacity：Stock Available

Basic Info.

Model NO. ZLT-DY1 Power Source AC220V Usage Test Cable Connection with Tensile Load Certification CNAS Calibration Provided Material Stainless Steel Cabinet MOQ 1 PC Delivery in 20-25 Days Transport Package in Plywood Carton Specification IEC60884/2006 figure 20, VDE0620 Bild 20. Trademark ZLTJC Origin Guangzhou, Guangdong, China HS Code 9031809090 Production Capacity Stock Available

Product Description

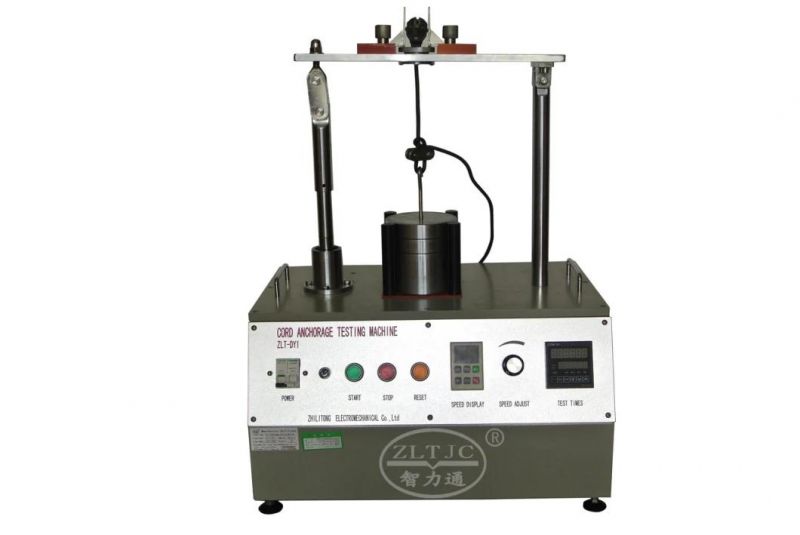

Cord Anchorage Testing Machine

Product details: Model ZLT-DY1.

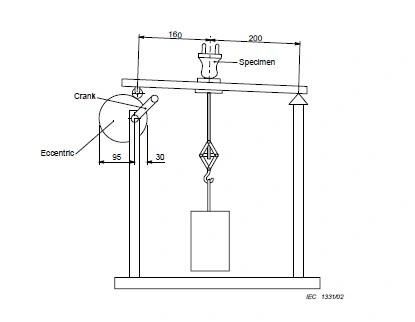

For testing cable connections with intermittent tensile load in according to IEC60884/2006 figure 20, VDE0620 Bild 20, IEC 60950 clause 3.2.6.

Standard Outfit:

1 basic frame, with housing,
1 eccentric disc, diameter 125 mm, eccentricity 32, 5mm,
1 A. C. Geared motor with additional gear reduction to approx. 60rpm,
1 lever for the specimen, with track wheel,
1 clamping mechanism with various gripping dies to match the cord size and shape,
1 set of weights for loads 10N*1-60N*1-20N*2,
1 electrical predetermining counter, four-digit, resettable, to indicate the number of strokes,

For connection to A. C. 220V50Hz, other voltages or frequencies on request.
