Cold Bend Tester for Cables of IEC 60811-1-4 Testing Equipment
Guangzhou Zhilitong Electromechanical Co., Ltd.- Warranty:One Year
- Type:Power Cord Tester
- Load Way:Mechanical Load
- Control:Manual Control
- Weight:0-100Kg
- Usage:Test Bending Stability at Low Temperature
Base Info
- Model NO.:ZLT-SDJ1
- Certification:ISO17025 Calibration Provided
- Material:Stainless Steel
- MOQ:1 PC
- Delivery:in 20-25 Days
- Transport Package:in Plywood Carton
- Specification:IEC60811-1-4 clause 8.1 figure 1
- Trademark:ZLTJC
- Origin:Guangzhou, Guangdong, China
- HS Code:9031809090
- Production Capacity:Stock Available
Description
Basic Info.
Model NO. ZLT-SDJ1 Certification ISO17025 Calibration Provided Material Stainless Steel MOQ 1 PC Delivery in 20-25 Days Transport Package in Plywood Carton Specification IEC60811-1-4 clause 8.1 figure 1 Trademark ZLTJC Origin Guangzhou, Guangdong, China HS Code 9031809090 Production Capacity Stock AvailableProduct Description

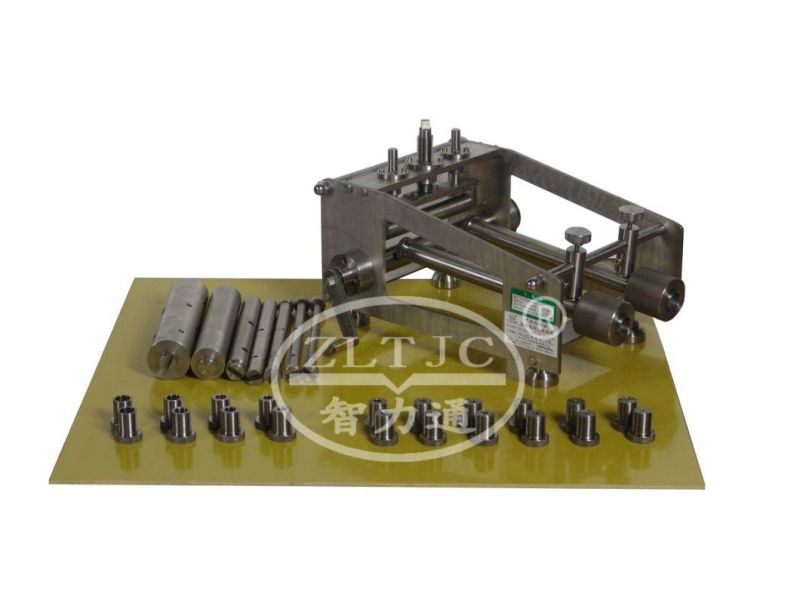

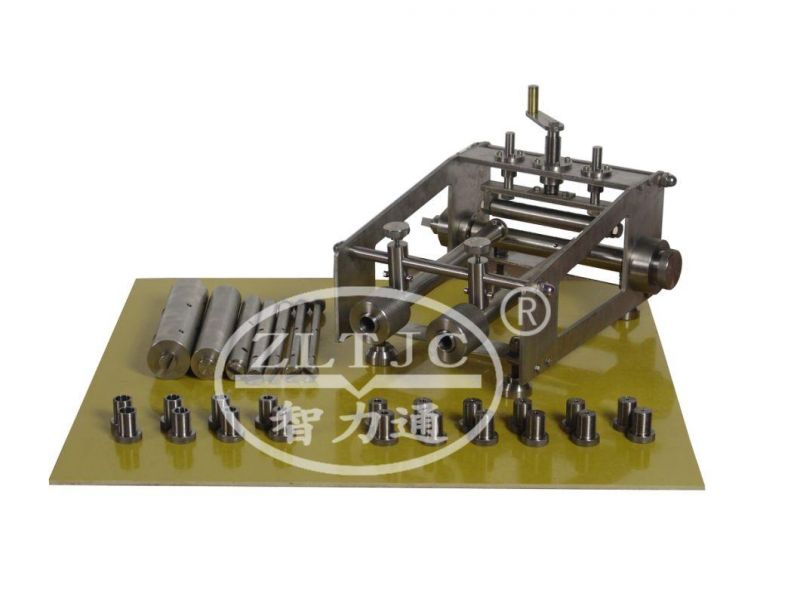

Cold- Bend Test ApparatusProduct details: Model ZLT-SDJ1.

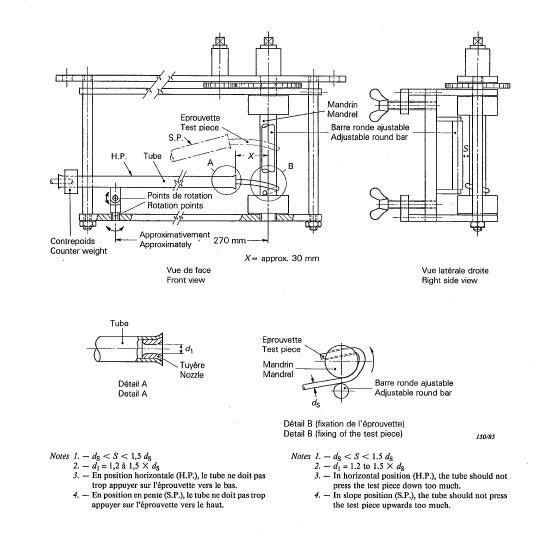

To determine the bending stability at low temperature of insulated cords and cables up to 12.5mm diameter in cold test chambers or freezers with mandrels to 50mm diameter, according to IEC60811-1-4 clause 8.1 figure 1.
Standard outfit:
1 rigid horizontal structure
1 driving shaft, with bush to take up the mandrel, with journal for the actuating shaft,
1 transmission shaft,
1 sets of metal tubes, outlet diameter of 3-4-5-6-7-8-9-10-12-14-16 mm, for diameter of specimen 2.5~12.5 mm,
1
sets of metal tubes, diameter of 3-4-5-6-7-8-9-10-12-14-16 mm,
All stainless steel.
